Goodyear

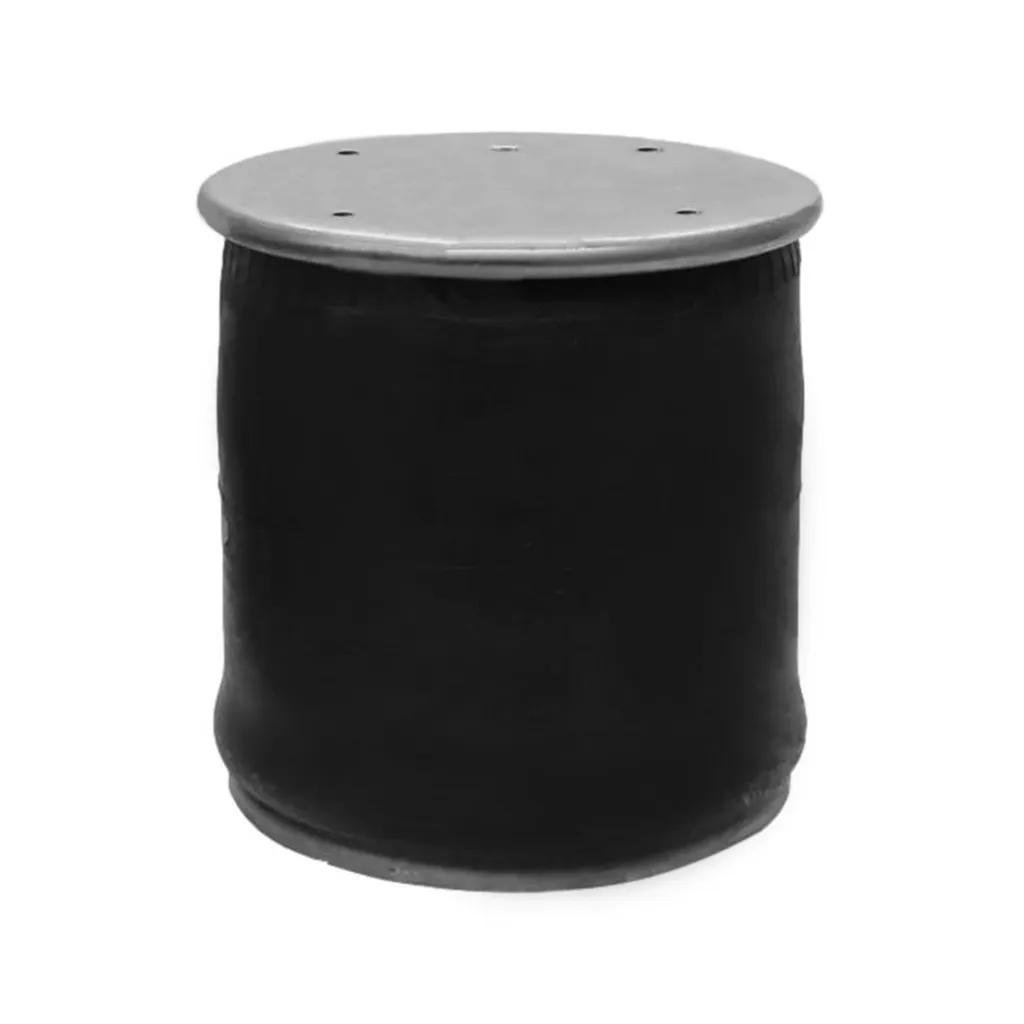

GOODYEAR AIR SPRING
#ARB1R14-019
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-9152, ContiTech 11 10.5-21 A 370, International B-7128, Link Cab & Seat Springs SC2044, International 554777C1
Specifications
| Air Spring Type | Rolling Lobe |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 6-1/4 in (15.88 cm) |
| Bellows | Automann 1DK28C, Firestone 1T19F-11, 1T19L-11, Goodwill 566283017, Contitech 11 10.5-17, Triangle 6366 |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 10-13/64 in (25.91 cm) |
| Bottom Plate Hole Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 8-29/32 in (22.63 cm) |
| Contitech Bellow # | 11 10.5-17 |
| Firestone Bellows Number | 1T19F-11, 1T19L-11 |
| Goodyear Bellow # | 566283017 |
| Height | 14 in (35.56 cm) |
| Length | 12 in (30.48 cm) |
| Maximum Height | 25-51/64 in (65.53 cm) |
| Plate Type | Steel |
| Quantity | 1 |
| Top Plate Diameter | 11-19/64 in (28.7 cm) |
| Top Plate Hole Count | 5 |
| Triangle Bellows Number | 6366 |
| Type | Rolling Lobe Air Springs |
| Weight | 22 lb (9.98 kg) |
| Width | 12 in (30.48 cm) |
