Goodyear

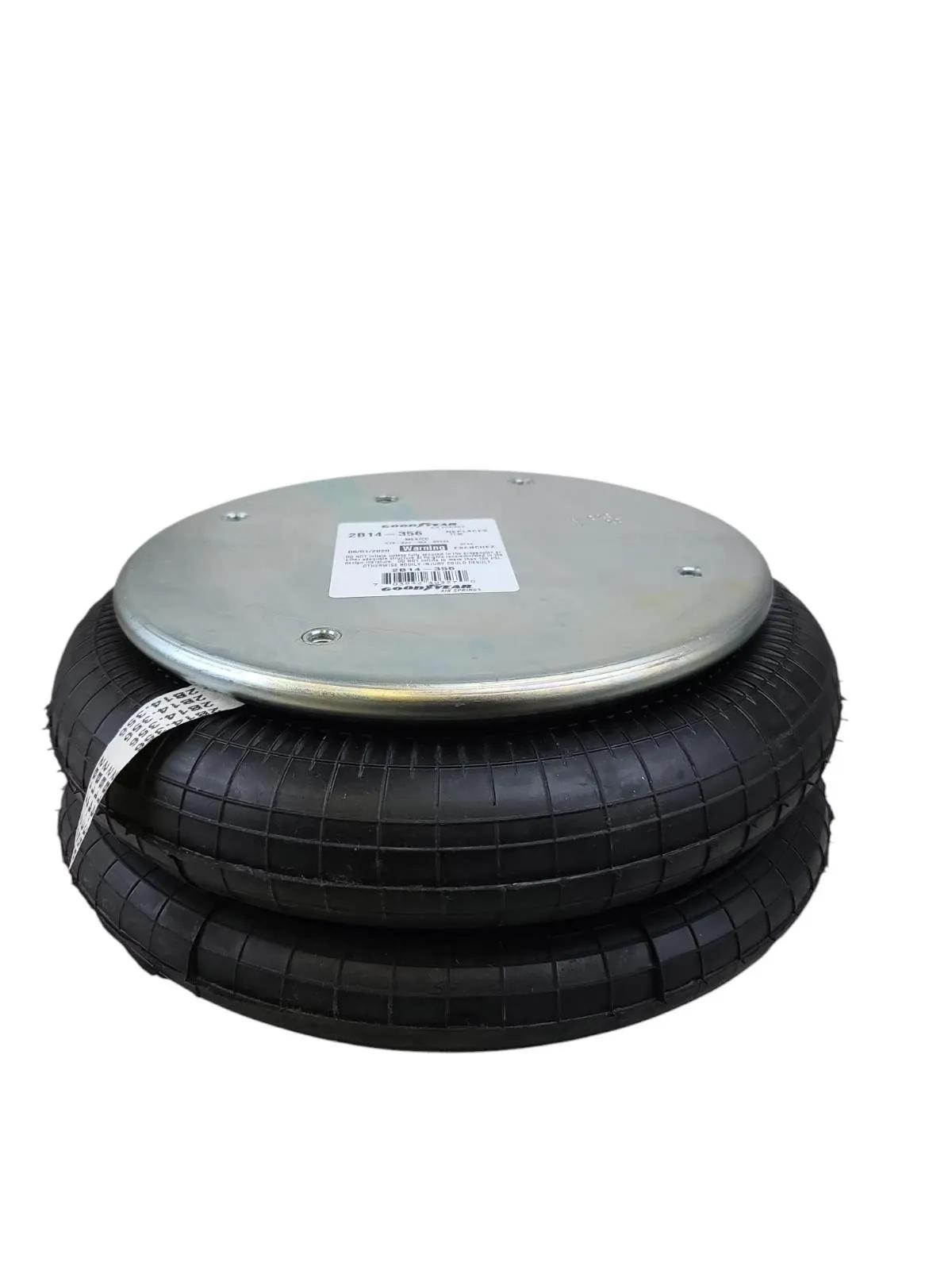

GOODYEAR AIR SPRING
#ARB2B14-356
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-7136, ContiTech FD 530-22 321, Dayton 354-7136, Granning 1626, HAD PMABG-7136, Hendrickson B-1080, International 554798C1, Ridewell 1003587136C, Watson & Chalin AS-0004
Specifications
Air Spring Type | Double Convoluted |
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 6-1/4 in (15.88 cm) |
Bellows | Automann SP2B34R, Firestone 21D was 21, Goodwill 578923353, Contitech FD 530-22, Triangle 6329 |
Bottom Plate Alignment | Parallel |
Bottom Plate Diameter | 11-19/64 in (28.7 cm) |
Bottom Plate Hole Stud Qty | 4 |
Bumper | Yes |
Compressed Length | 4-13/64 in (10.67 cm) |
Contitech Bellow # | FD 530-22 |
Firestone Bellows Number | 21D was 21 |
Goodyear Bellow # | 578923353 |
Height | 9 in (22.86 cm) |
Length | 15 in (38.1 cm) |
Maximum Height | 11-19/64 in (28.7 cm) |
Quantity | 1 |
Top Plate Diameter | 11-19/64 in (28.7 cm) |
Top Plate Hole Count | 4 |
Triangle Bellows Number | 6329 |
Type | Bellows Air Spring |
Weight | 21 lb (9.52 kg) |
Width | 15 in (38.1 cm) |
