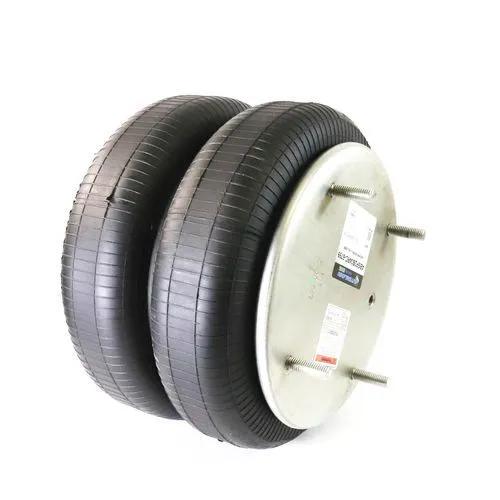

GOODYEAR AIR SPRING
#ARB2B14-476
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-6799, ContiTech FD 530-35 543, Neway 905-57-023, Watson & Chalin AS-0034
Specifications
| Air Spring Type | Double Convoluted |
| Bellows | Automann SP2B34RC, Firestone 233D-2 was 233-2, Goodwill 578923356, Contitech FD 530-35, Triangle 6412 |
| Bottom Plate Alignment | Parallel |
| Bottom Plate Diameter | 11-19/64 in (28.7 cm) |
| Bottom Plate Hole/Stud Qty | 4 |
| Bumper | Yes |
| Compressed Length | 3-19/32 in (9.12 cm) |
| Contitech Bellow # | FD 530-35 |
| Extended Length | 15-13/64 in (38.61 cm) |
| Firestone Bellows Number | 233D-2 was 233-2 |
| Height | 14 in (35.56 cm) |
| Length | 16 in (40.64 cm) |
| Top Plate Diameter | 11-19/64 in (28.7 cm) |
| Top Plate Hole/Stud Qty | 4 |
| Triangle Bellows Number | 6412 |
| Type | Bellows Air Spring |
| Weight | 22 lb (9.98 kg) |
| Width | 14 in (35.56 cm) |
Interchanges & Equivalent parts:
| 2B14-476 |
| 6799 |
| 2B14476 |
| W013586799 |
