Goodyear

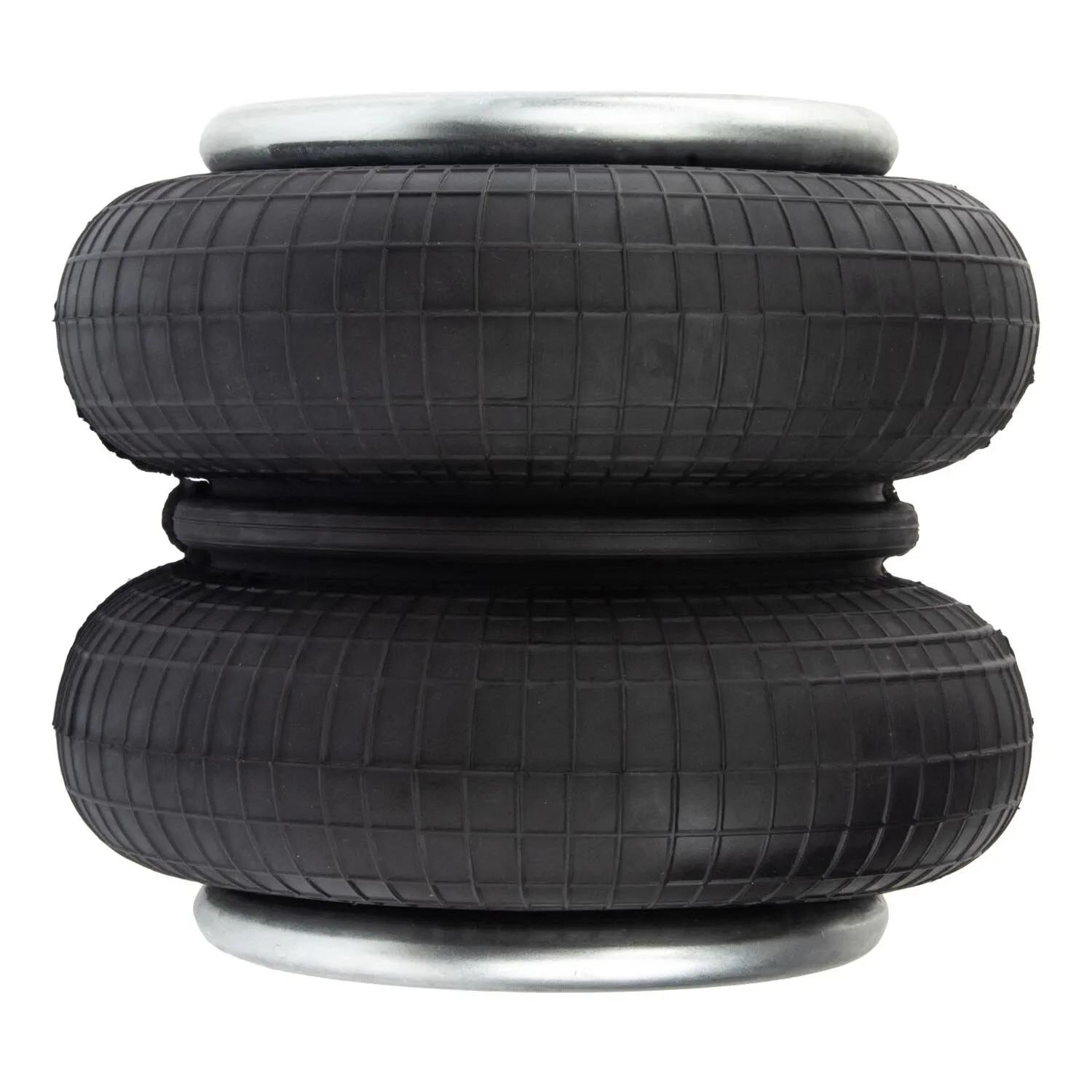

GOODYEAR AIR SPRING
#ARB2B9-288
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Firestone W01-358-6926, ContiTech FD 200-19 504
Specifications
Air Spring Type | Double Convoluted |
Bead Plate (Top) Mounting Bolts Dimension Center to Center | 3-1/2 in (8.89 cm) |
Bellows | Automann SP2B12R, Firestone 20F was 20, Goodwill 578923211, Contitech FD 200-19, Triangle 6325 |
Bottom Plate Alignment | 90 deg |
Bottom Plate Diameter | 6-13/32 in (16.28 cm) |
Bottom Plate Hole Stud Qty | 2 |
Bumper | Yes |
Compressed Length | 3-29/32 in (9.93 cm) |
Contitech Bellow # | FD 200-19 |
Firestone Bellows Number | 20F was 20 |
Goodyear Bellow # | 578923211 |
Height | 9 in (22.86 cm) |
Length | 12 in (30.48 cm) |
Maximum Height | 10-13/32 in (26.44 cm) |
Quantity | 1 |
Top Plate Diameter | 6-13/32 in (16.28 cm) |
Top Plate Hole Count | 2 |
Triangle Bellows Number | 6325 |
Type | Bellows Air Spring |
Weight | 8.5 lb (3.85 kg) |
Width | 12 in (30.48 cm) |
