Goodyear Air Spring - Rolling Lobe, Composite Piston, 7.9 in Compressed Length, 19 in Extended Length

#ARB1R13-188

Product Overview


Super-Cushion air springs for trucks, trailers, buses, and cab and seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. Super-Cushion air springs give your trucks, trailers, and buses a new high in productivity and long life. They offer a quiet, cushioned ride. Truck, trailer, and bus bodies last longer than with steel springs because there is less vibration. The driver rides in greater comfort, becomes less fatigued, and stays more alert. Plus, cargo has better protection from shock and vibration. Whenever you want to add an axle, Super-Cushion air springs fit right in. Super-Cushion air springs, when used with leveling valves, also maintain consistent trim regardless of the load. That means clearance heights remain constant, and trailer floors are flush with loading dock floors for ease of loading and unloading. For driver comfort, load cushioning, and long life for your trucks, trailers, buses, and cab and seat springs, specify Goodyear engineered products Super-Cushion air springs.Air Spring, Rolling Lobe Air Spring, Composite Piston, 7.9 in Compressed Length, 19 in Extended Length

See More
See Less

Features & Benefits


  • Superior Rubber Chemistry
  • Reduced Weight
  • Internal Wall Cord
  • Comfort
  • Equipment Longevity

Specifications


Air Inlet 1/4 in NPTF
Air Spring Type Rolling Lobe
Bead Plate (Top) & Deflated Bellows O.D. 7.9 in @ 19 in
Bellows Goodwill 566263078
Bottom Plate Diameter 9-29/32 in
Bottom Plate Alignment Parallel
Bottom Stud Configuration 1/2 in-13 UNC
Bottom Plate Hole/Stud Qty 2
Bumper No
Compressed Length 7.9 in
Extended Length 19 in
Firestone Bellows Number 1T17GJ-6
Piston Height 4-47/64 in
Piston Number 566-20-7-314
Plate Type Composite
Top Bead Plate Hardware Key Bold or Stud 1/2-13 in
Top Plate Diameter 10-19/64 in
Top Plate Hole/Stud Qty 2
Type Air Springs
Weight 30.6 lb (13.88 kg)
Product Category Air Spring

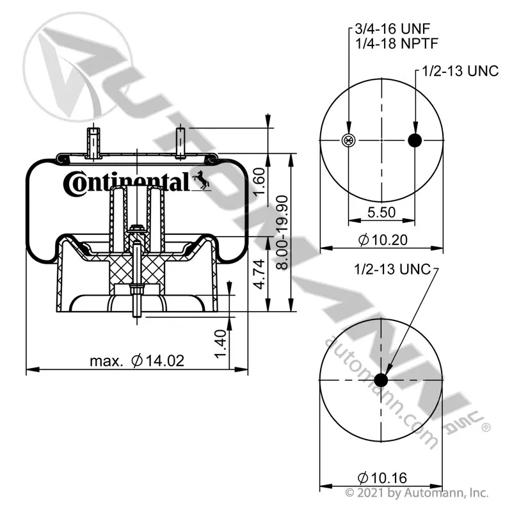

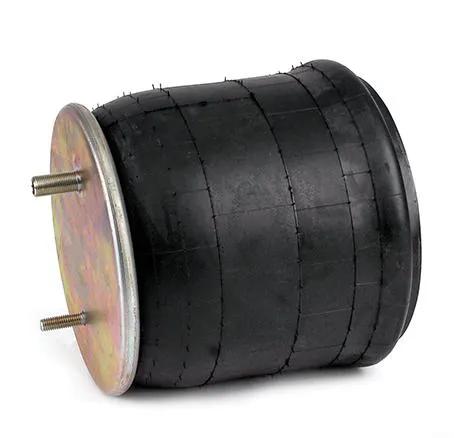

Interchanges & Equivalent parts:


1R13-188
W01-358-8539

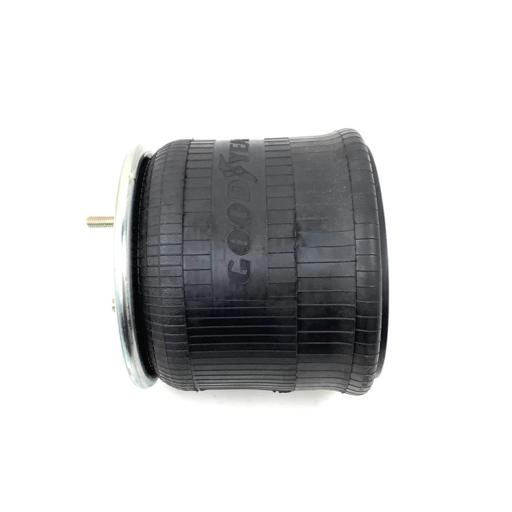

S-SR1VA105
1R13188
SR1VA105
W013588539
CON78239
See more
