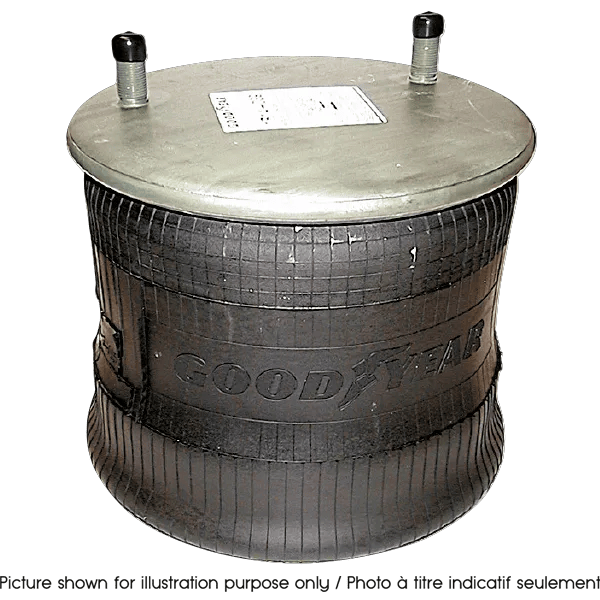

Goodyear Air Spring - Rolling Lobe, Composite Piston, 9.1 in Compressed Length, 19 in Extended Length
Product Overview
Super-Cushion air springs for trucks, trailers, buses, and cab and seat springs protect cargo, provide constant-level hauling, and deliver long, trouble-free service. These air springs offer a quiet, cushioned ride, reducing vibration to extend the life of truck, trailer, and bus bodies. Drivers benefit from greater comfort, reduced fatigue, and increased alertness. Cargo is better protected from shock and vibration. Super-Cushion air springs fit easily when adding an axle and, when used with leveling valves, maintain consistent trim regardless of load, keeping clearance heights constant and trailer floors flush with loading docks for easy loading and unloading. For driver comfort, load cushioning, and long life, specify Goodyear engineered Super-Cushion air springs.Air Spring, Rolling Lobe Air Spring, Composite Piston, 9.1 in Compressed Length, 19 in Extended Length
Features & Benefits
- Superior Rubber Chemistry
- Reduced Weight
- Internal Wall Cord
- Comfort
- Equipment Longevity
Specifications
| Air Inlet | 1/4 in NPT |
| Air Spring Type | Rolling Lobe |
| Bead Plate (Top) & Deflated Bellows O.D. | 9.1 in @ 19 in |
| Bellows | Goodwill 566263078 |
| Bottom Plate Diameter | 8-51/64 in |
| Bottom Plate Alignment | Parallel |
| Bottom Stud Configuration | 1/2 in-13 UNC |
| Bottom Plate Hole/Stud Qty | 1 |
| Bumper | Yes |
| Compressed Length | 9.1 in |
| Contitech Bellow # | 10 10-16 S |
| Extended Length | 19 in |
| Firestone Bellows Number | 1T17CA-6.5 |
| Piston Height | 5-3/8 in |
| Piston Number | 566-20-7-154 |
| Plate Type | Composite |
| Top Plate Diameter | 10-19/64 in |
| Top Plate Hole/Stud Qty | 2 |
| Type | Air Springs |
| Weight | 15.2 lb (6.89 kg) |
| Product Category | Air Spring |
Interchanges & Equivalent parts:
| W01-358-8708 |
| 1R13-177 |
| FIRW01-358-8708 |
| 1R13177 |
| 8708 |
| AS87080 |
| C21966 |

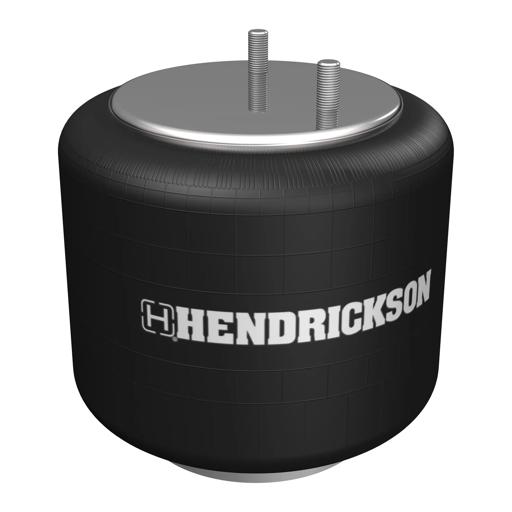

| S21966 |
| W013588708 |
