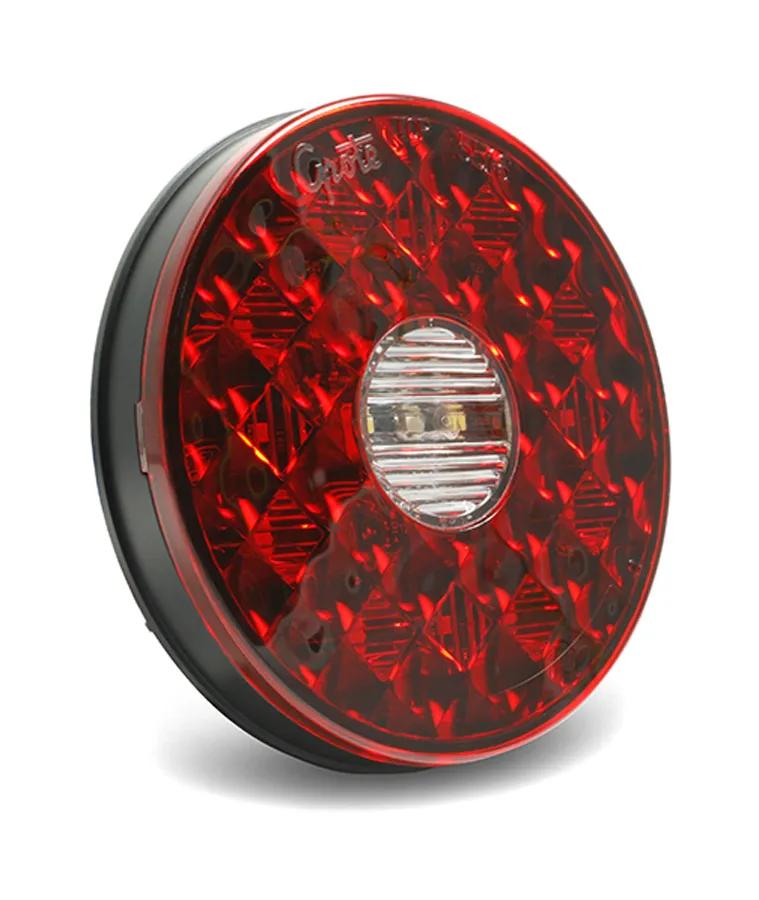

Grote 4" Round LED Stop/Tail/Turn & Back-Up Light, Red & White, Polycarbonate, Hardshell
Product Overview
The patented Grote 4" Round LED Stop/Tail/Turn with Integrated Backup Lamp combines Stop, Tail, Turn, and Back-up functions into a single, industry-standard size combination light. Featuring a robust design with dedicated LEDs for consistent compliance, this lamp is assembled with a stainless steel flange and offers high-level electrical protection against reverse voltage, over voltage, electrical transients, and overheating. Designed to meet the electrical specifications of all major Class 8 truck manufacturers, it provides reliable performance and durability.Stop Tail Turn Light, LED Bulb, Hardshell Connection Type, Grommet, Bracket Mounting, Black Housing, Red/Clear Lens, Red, Clear Light Output, Polycarbonate Lens, PC/ABS Housing, 0.08 to 31 A Current Rating, I, S, T, R(2) Light Function, Round, 4 in, FMVSS 108 Standards, 12 V, 10 Years Warranty
Features & Benefits
- Matches the design of the 55162 Stop Tail Turn with Back-up
- High Compliance design using dedicated LEDs for Stop and Tail functions
- Assembled in Stainless Steel Flange.
- A new robust design for consistent compliance utilizing dedicated LEDs for Stop and Tail
- Innovative patented design combines all Stop Tail Turn and Backup functions into one industry-standard size lamp.
- Provides high level electrical protection for: reverse voltage, over voltage, electrical transients, and overheating.
- Robust laser weld construction
- Designed to meet electrical specifications of all major Class 8 truck manufacturers
- Warranty: 10 Years
Specifications
| Bulb Type | LED |
| Connection Type | Hardshell |
| Depth | 63/64 in |
| Height | 4-11/32 in |
| Housing Color | Black |
| Lens Color | Red/Clear |
| Mounting Type | Grommet, Bracket |
| Number Of Wires | 4 |
| Shape | Round |
| Size | 4 in |
| Standards | FMVSS 108 |
| Type | Stop/Tail/Turn & Back-Up |
| VMRS Code | 043-003-025 |
| Voltage Rating | 12 V |
| Warranty | 10 Years |
| Width | 4-11/32 in |
| Current Rating | 0.08 to 0.31 amp |
| Light Output Color | Red, Clear |
| Light Function | I, S, T, R(2) |
| Product Line | 44 Series |
| Product Category | Stop Tail Turn Light |
Interchanges & Equivalent parts:
| 44556R |
| 7376-55162 |
| 882K-7 |
| GRO55162 |
| GRT55162 |
