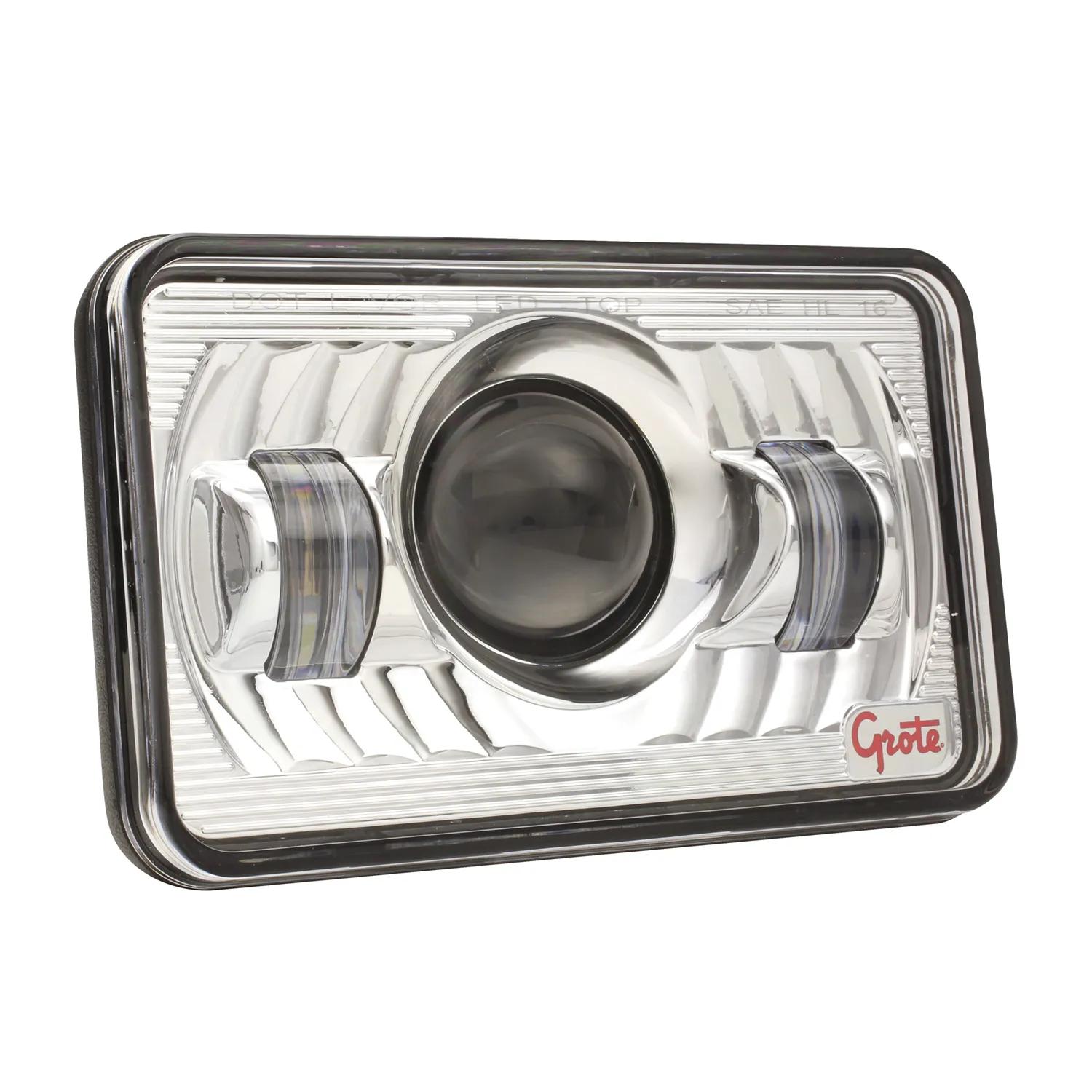

Grote LED Sealed Beam Headlight, Rectangular, Black Powder Coated, Polycarbonate Clear Lens, H4 Connector
Product Overview
With seven-inch round, five-by-seven inch, and four-by-six inch rectangular lights, you can replace your existing lights with the durable, long-lasting LED lights Grote is famous for. The LED technology helps reduce eye fatigue and provide better visibility, thus improving driver safety. These 2B1, 2D1, and 2E1 head lighting systems have a 3 pin, H4 connector and are legal and DOT compliant. The headlight features a hard coated, UV protected, high impact resistant polycarbonate lens that resists cracking and yellowing.Headlight, Sealed Beam, H4 Connector Type, LED Lamp, Black Powder Coated, Black Housing, Clear Lens, Aluminum Housing, Polycarbonate Lens, 0.6 to 1.4 A Current Rating, Rectangular, FMVSS 108, IP67 Standards, 9 to 30 V, 3 Years Warranty
Features & Benefits
- DOT compliant, 2A1 4-Lamp headlight system is legal for all 4x6 (100x165mm) systems
- Visual fatigue is reduced by allowing a clearer view in all driving conditions and decreasing chances for accidents
- 3 pin H4 connector
- Compatible with 12V and 24V electrical systems
- Includes adapter for non-standard wiring applications
- Die-cast aluminum housing, Polycarbonate, Hard coated UV protected lens.
- Headlight uses a hard coated, UV protected, high impact resistant polycarbonate lens that resists cracking and yellowing
- Improve the driving experience for drivers by decreasing eye fatigue and providing better detail, thus decreasing chances for accidents
Specifications
| Amps | 0.6 amp to 1.4 amp |
| Color | Black |
| Depth | 3-11/16 in |
| Height | 4-13/64 in |
| Kit (Y/N) | No |
| LED | Yes |
| Length | 6 in |
| Lens Material | Polycarbonate |
| Material | Die Cast Aluminum/Polycarbonate |
| Number Of Wires | 3 |
| Product Type | LED Sealed Beam Headlights |
| Shape | Rectangular |
| Standard | FMVSS 108, IP67 |
| Type | Sealed Beam |
| VMRS Code | 034-001-151 |
| Volt | 9V & 30V |
| Weight | 5 lb (2.27 kg) |
| Width | 6-37/64 in |
| Wire Gauge | 16 ga |
| Connector Type | H4 |
| Current Rating | 0.6 to 1.4 A |
| Finish | Black Powder Coated |
| Housing Color | Black |
| Housing Material | Aluminum |
| Lamp Type | LED |
| Lens Color | Clear |
| Mounting Type | Sealed Beam |
| Standards | FMVSS 108, IP67, DOT compliant |
| Voltage Rating | 9 to 30 V |
| Warranty | 3 Years |
| Product Category | Headlight |
Interchanges & Equivalent parts:
| 94421-5GR0 |
| 94421-5GRC |
| GRO944215 |
| RTLEDHL4X6LO |
| 702C |
| HLL78LS |
| HLL88LBP |
| VHL-4X6LL |
| 94421-5 |
| 725333 |
| 1855KT |
| 535D |
| 944215 |
