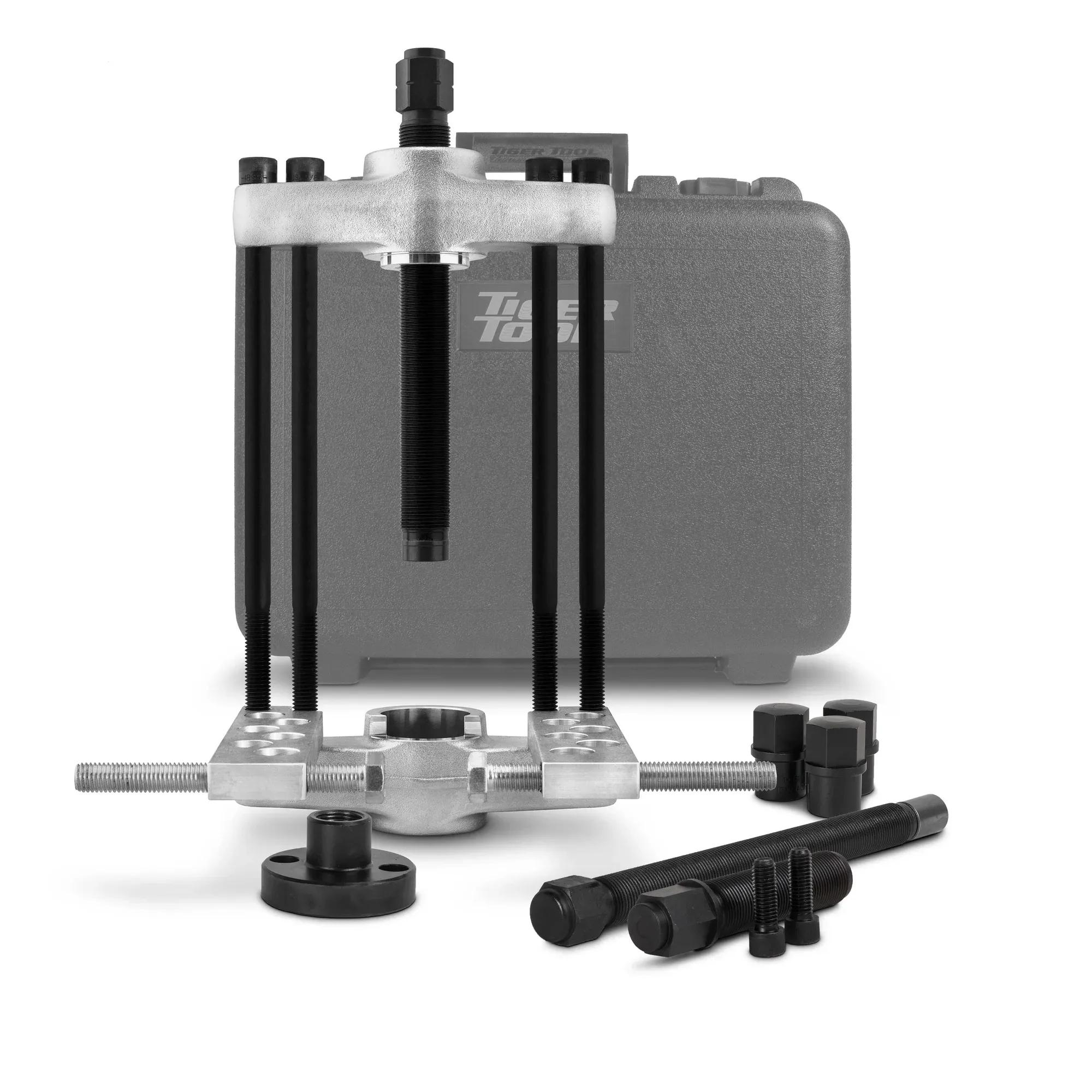

H.D. KING PIN PRESS, 46,000 lb Capacity, Lightweight Heavy-Duty Tool
#TIG90150
Product Overview
Our heavy-duty king pin press was designed with a goal in mind: build the best king pin press possible that requires only one operator to use. We’ve optimized the end plates, manufacturing them out of high-grade steel into diamond shapes - drastically reducing the overall mass of the tool. Coming in at 75% less weight than our closest competitor, the results are huge savings in the tool’s overall weight.King Pin Press, 46000 lb, Yes Prop65, For Ram 3500/5500, Chevrolet 3500/5500, Ford F-350/550, Isuzu NPR, Kenworth, Peterbilt, Freightliner, Mack, Volvo
Features & Benefits
- Remove king pins in minutes with relative ease and efficiency. The patented design of the 90150 King Pin Press weighs 75% less than our closest competitor and requires only one operator to use.
- Three different forcing screw options are included, providing the technician the ability to service everything from 3/4 ton pickups to Class 8 trucks. A shortened 1 1/4" forcing screw allows you to access king pins in the tightest wheel wells - even on busses.
- Our three most popular tie rod end removers are also included: 10301, 10302 and 10304. Application: for use on straight and tapered king pins from 7/8" to 2 5/32".
- Isuzu NPR and GMC/Chevrolet W-series trucks require a custom adapter: 90150-15. Not compatible with FL981 axles where the tie rod is cast to the spindle.
- Capable of generating 46,000 lbs of force yet weighs only 30 lbs.
- Anti-torque arms prevent twisting of the main body while under extreme force.
- Engineered for use with up to a 1 in impact tool.
Specifications
| Application | Ram 3500/5500, Chevrolet 3500/5500, Ford F-350/550, Isuzu NPR, Kenworth, Peterbilt, Freightliner, Mack, Volvo |
| Capacity | 46000 lb |
| Prop65 | Yes |
| Product Category | King Pin Press |
| Weight | 30 lb |
