2 POINTS

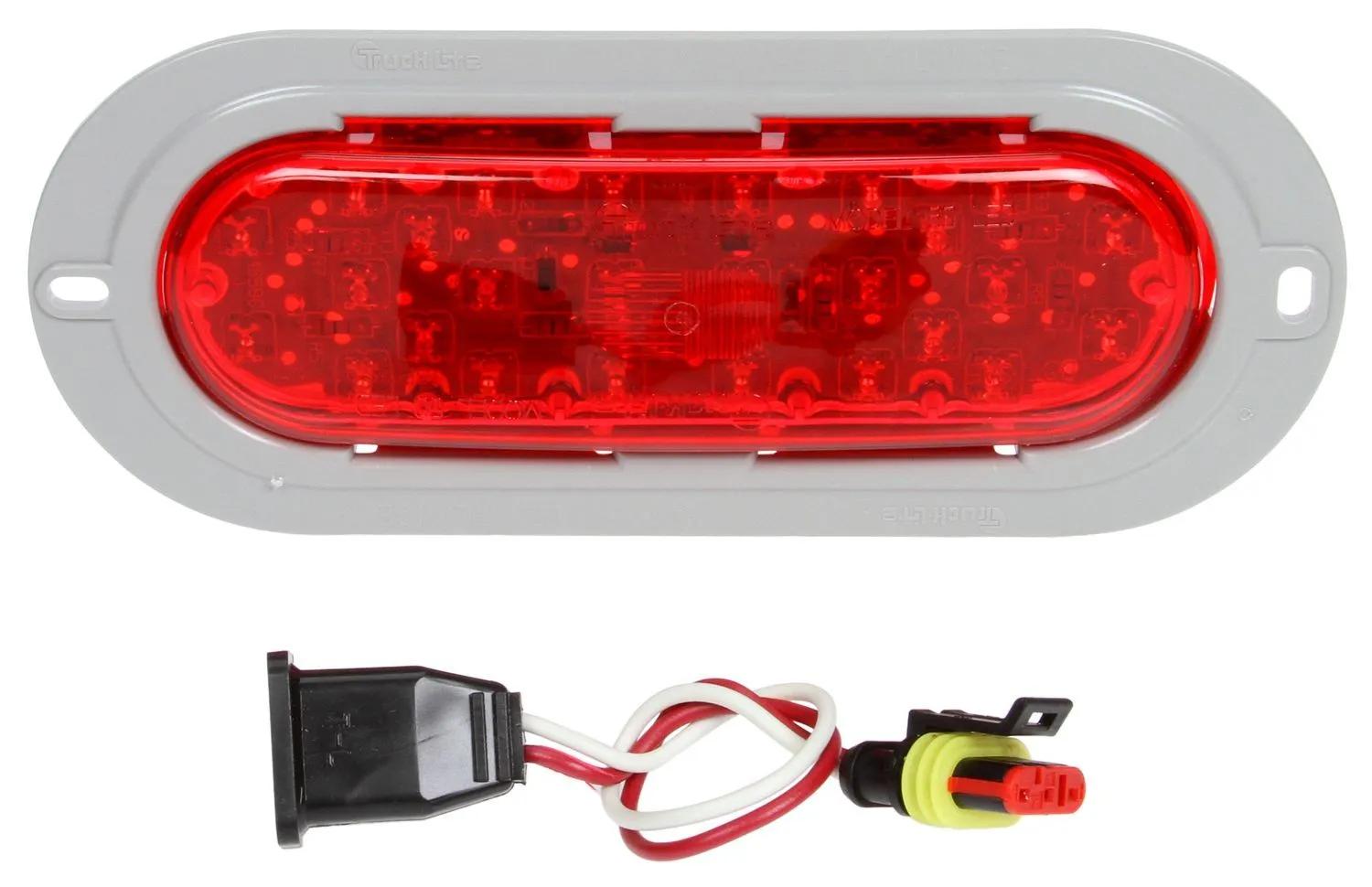

High Mounted Stop Light, Red, Oval
#TRL60062R
Product Overview
60 Series, LED, High Mounted Stop Light, 26 Diode, Oval Red Polycarbonate, Gray Flange Mount, Fit 'N Forget S.S., Straight PL-2, 12V, Kit
Features & Benefits
- Recommended for auxiliary brake light applications only
- Electronics completely sealed in epoxy to resist corrosion and moisture
- High quality construction
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Red |
| Common Size | 2 in |
| Current Major | 0.21 amp |
| Current Minor | 0.04 amp |
| Depth | 1-5/8 in |
| Height | 3-5/16 in |
| Housing Color | Gray |
| Kit (Y/N) | Yes |
| Length | 7-7/8 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 3 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | PL-2 (Stripped End) |
| Series | 60 Series |
| Shape | Oval |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | High Mounted Stop Light |
| VMRS Code | 034-002-041 |
| Volt | 12V |
| Width | 7-7/8 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 841360062R |
| HT50601781 |
| TL60062R |
| TLD60062R |
| 60062R |
| 62100 |
| 62091R |
| 8413-60062R |
| LIT60062R |
| TL 60062R |
| TL 60062R |
| V423KR2 |
