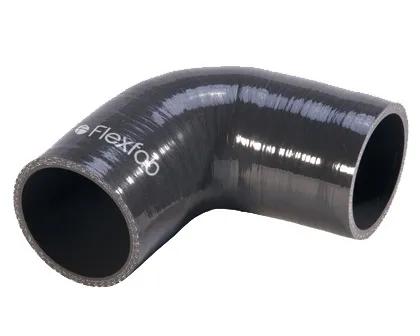

Hose Elbow, ID: 2-1/2 in, 90 deg
#FLX7965
Features & Benefits
- Used for a 90˚ coolant connection between pipes
- Tighter bend radius than most other 90˚ elbows
- Meets or exceeds the operating requirements of SAE J20 R1 Class A
- 4-ply polyester reinforced hose
Specifications
| Angle | 90 deg |
| Burst Pressure | 150 psi (10.34 bar) |
| Clamp | FLXFLX2582-0040 or FLXFLX2584-0312 |
| Inside Diameter 1 (in) | 2-1/2 in (6.35 cm) |
| Inside Diameter 2 (in) | 2-1/2 in (6.35 cm) |
| Length | 10 in (25.4 cm) |
| Maximum Pressure | 50 psi (3.45 bar) |
| Outside Diameter | 2-59/64 in (7.42 cm) |
| Stainless Steel Ring | No |
| Temperature Range | -65°F @ 350°F (-54°C @ 177°C) |
| Weight | 0.5 lb (0.23 kg) |
Interchanges & Equivalent parts:
| FLX7965D |
