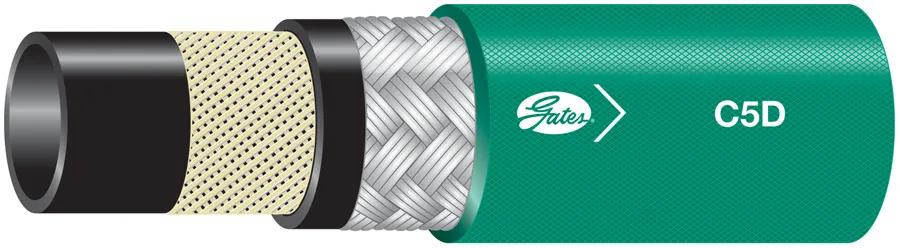

Hydraulic Hose, ID: 3/16 in

#GAT85680

Specifications


Color Green
Coupling Recommendation C5 Field Attachable
Cover Color Green
Cover Material Polyester Braid Impregnated w/ Synthetic Rubber
Cover Type Oil & Mildew Resistant
Dash Size 4
Industrial Description 4C5DX50FT
Inside Diameter 1 (in) 3/16 in (0.48 cm)
Length 50 pi (15.24 m)
Minimum Burst Pressure (PSI) 6000 psi (413.68 bar)
Product Type C5D High-Temp Multi-Fluid Hose
Reinforcement One Braid of High-Tensile Steel Wire Over One Braid of Polyester
Temperature Range -40°F @ 300°F, Air @ 250°F, Phosphate Esters @ 212°F
Tube Description Black, Oil & Heat Reistant, Synthetic Rubber
Type Fleet Application & Maintenance Hose
End 1 Diameter 33/64 in (1.32 cm)
Maximum Pressure 1500 psi (103.42 bar)
Outside Diameter 33/64 in (1.32 cm)
Standard SAE J1402
Radius 1 in (2.54 cm)

Interchanges & Equivalent parts:


GUT04X50, H16604, H16904, H56904, 85680, 4C5DX50FT
