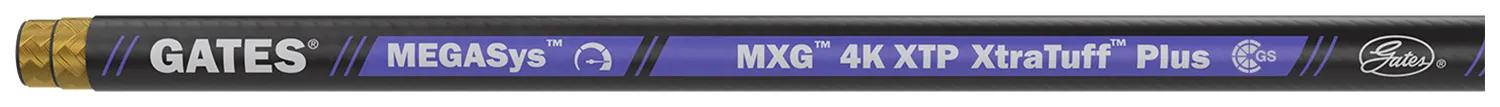

Hydraulic Hose, Le: 220 pi, ID: 1 in
#GAT70464
Specifications
| Color | Black |
| Coupling Recommendation | GlobalSpiral |
| Cover Material | Synthetic Rubber - Nitrile - Type C2 - Color Coded Layline |
| Cover Type | Nitrile - Type C - Oil, Flame, Abrasion & Weather Resistant - XtraTuff Plus Cover |
| Dash Size | 16 |
| Industrial Description | 16MXG4K-XTPX165REEL |
| Inside Diameter 1 (in) | 1 in (2.54 cm) |
| Length | 220 ft (67.05 m) |
| Minimum Burst Pressure (PSI) | 16000 psi (1103.14 bar) |
| Outside Diameter | 1-1/2 in (3.81 cm) |
| Product Type | MXG 4K Wire Braid Hose - SAE 100R12 - XtraTuff Plus Cover |
| Radius | 5-29/32 in (15.01 cm) |
| Reinforcement | Two Braids; High-Tensile Steel Wire |
| Standard | SAE 100R12 |
| Temperature Range | -40°F @ 250°F (-40°C @ 121°C) |
| Tube Description | Black, Synthetic Rubber |
| Type | Very High Pressure |
Interchanges & Equivalent parts:
| 70464 |
| 16MXG4KXTPX165REEL |
| 922674547 |
| GH49316 |
| GH49316RL |
| 46780005 |
