Spicer 1810 Series BP Splined Hole End Yoke, Steel, 3.25 in Hub Diameter, 7.547 in Outside Dimension
#SPI6.5-4-3731X
Product Overview
Demand genuine Spicer with all the components needed for the repair. Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance that non-genuine parts simply cannot deliver.Differential End Yoke, Splined Hole, Steel, 0.14 in C-Bore Depth, 5.156 in Center Line to End Hub, 3.250 in Hub Dia, 2.312 in Length Thru Hole, 7.547 in Outside Yoke, 1810, 46 Spline Count, 1.938 in Yoke Bearing Dimension, BP Yoke, 2.39 in Length
Features & Benefits
- Includes Slinger/Plug
- Involute Spline
- Full Round Yoke Type
- High-quality steel construction for durability
- Precision engineered for Dana 1810 series applications
Specifications
| C-Bore Depth | 0.14 |
| Hub Diameter | 3-1/4 po |
| Includes Slinger/Plug | Yes |
| Involute Spline | Yes |
| Length | 2.39 in |
| Material | Steel |
| Quantity | 1 |
| Series | 1810 |
| Spline Count | 46 |
| Type | Splined Hole Yoke |
| VMRS Code | 22003072 |
| Weight | 13.98 lb |

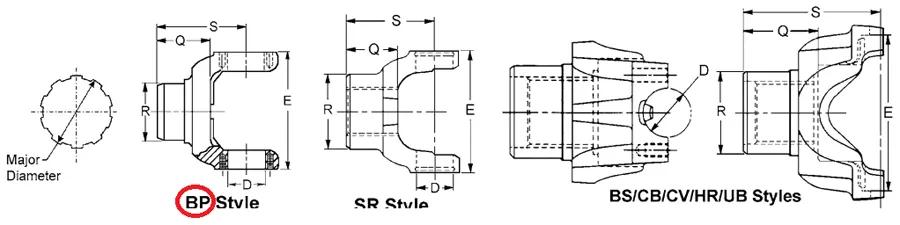

| Yoke Style | BP |
| Yoke Type | Full Round |
| Center Line to End Hub | 5.156 in |
| Length Thru Hole | 2.312 in |
| Outside Yoke Dimension | 7.547 in |
| Yoke Bearing Dimension | 1.938 in |
| Product Category | Differential End Yoke |
Interchanges & Equivalent parts:
| 6.5-4-3721 |
| N65-4-3731X |
| 181MU 52P24 |
| 2104-6543731X |
| 25162862 |
| 6543731X-SP |
| 8179901 |
| D6543731X |
| E6543731X |
| S-B621 |
| SP 6.5 4 3731X |
| SP 6543731X |
| TWD6543731X |
| 2032771C91 |
| N6.5-4-3731X |
| 230177 |
