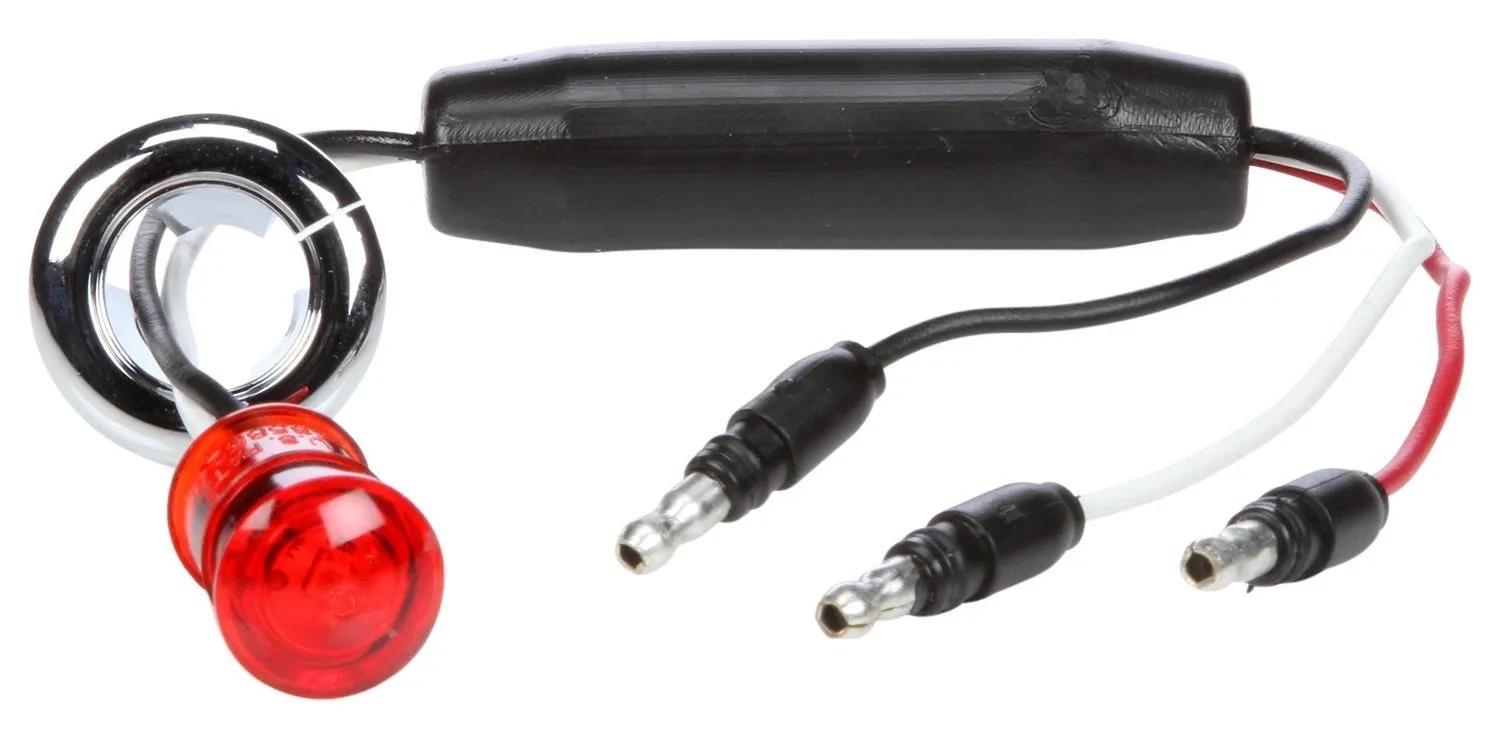

Lamp / Clearance & Marker LED Truck-Lite
#TRL33208R
Product Overview
Dual function, 33 Series, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, Chrome ABS Flange, Hardwired, .180 Bullet Terminal, 12V
Features & Benefits
- Provides Increased Visibility When Bracking Or Turning
- Functions As A Marker, Auxiliary Turn, & Auxiliary Stop When Properly Installed
- Best In Class Auxiliary Brake Function Is Seven Times Brighter Than Marker Function
Specifications
| Color | Red |
| Common Size | 3/4 in (1.91 cm) |
| Contents | Lamp, Mounting & Plug |
| Current Major | 0.17 amp |
| Current Minor | 0.02 amp |
| Depth | 11-1/2 in (29.21 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | Hard-wired w/ .180 Bullet |
| Height | 11-1/2 in (29.21 cm) |
| Kit (Y/N) | No |
| Lamp Length | 3/4 in (1.91 cm) |
| Lamp SAE Rating | P2 |
| Lamp Type | LED |
| Lamp Width | .75 in. |
| Lens Color | Red |
| Lens Height | 23/32 in (1.83 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 23/32 in (1.83 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 3/4 in (1.91 cm) |
| Mount/Trim Color | Chrome |
| Mount/Trim Material | ABS |
| Mount Type | Flange Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 3 |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 33 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | LED |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 1-3/32 in (2.77 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 33208R |
| TL 33208R |
