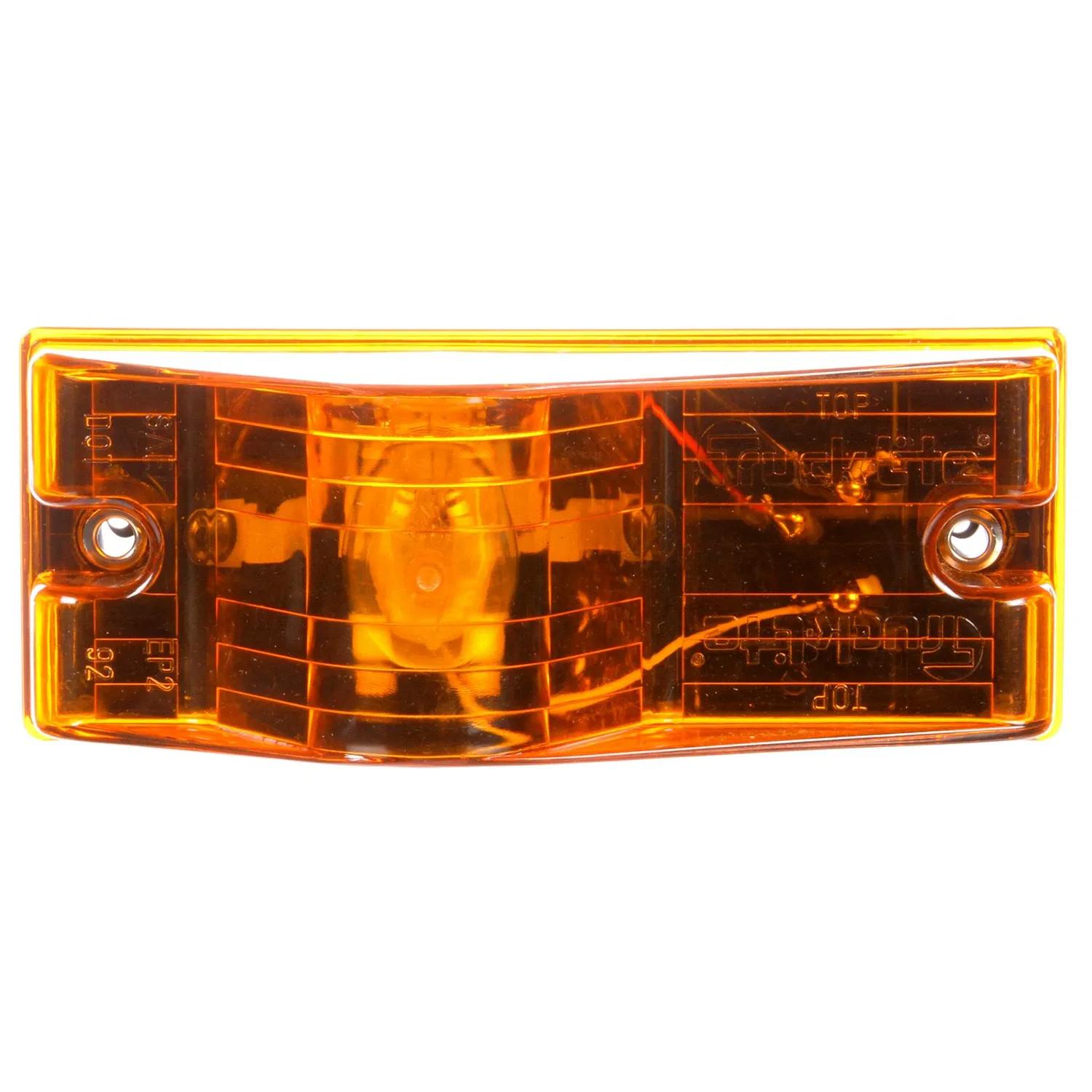

Lamp / Clearance & Marker Sealed Incandescent Truck-Lite
#TRL22016Y
Product Overview
22 Series, Incandescent, Yellow Rectangular, 1 Bulb, Side Turn Signal, 2 Screw, PL-3, 12V
Features & Benefits
- Features dual contact marker/clearance and side turn or auxiliary turn functions
- Mounts on surface of vehicle or with "
- L"
- bracket
- Red lamp should be used for rear vehicle applications
Specifications
| Color | Yellow |
| Common Size | 2 in (5.08 cm) x 6 in (15.24 cm) |
| Contents | Lamp, Gasket |
| Current Major | 2.1 amp |
| Current Minor | 0.49 amp |
| Depth | 2-13/32 in (6.12 cm) |
| Fits Pigtail Part #(s) | PL-3 |
| Height | 2-13/32 in (6.12 cm) |
| Kit (Y/N) | No |
| Lamp SAE Rating | P2 |
| Lamp Type | Sealed Incandescent |
| Lens Color | Yellow |
| Lens Height | 2-13/32 in (6.12 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Lens Width | 5-15/16 in (15.09 cm) |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number of Diodes/Bulbs | 1 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Position | Side |
| Product Type | Turn Signal |
| Reflectorized (Y/N) | No |
| Series | 22 Series |
| Shape | Rectangular |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-003-081 |
| Volt | 12V |
| Weight | 0.4 lbs (0.18 kg) |
| Width | 5-15/16 in (15.09 cm) |
Interchanges & Equivalent parts:
| 41312506 |
| 22016Y |
| 841322016Y |
| TL22016Y |
| TLD22016Y |
| TRU22016Y |
| 2932399 |
| 8413-22016Y |
| LIT22016Y |
| TL 22016Y |
| TL 22016Y |
| GRT53163 |
