2 POINTS

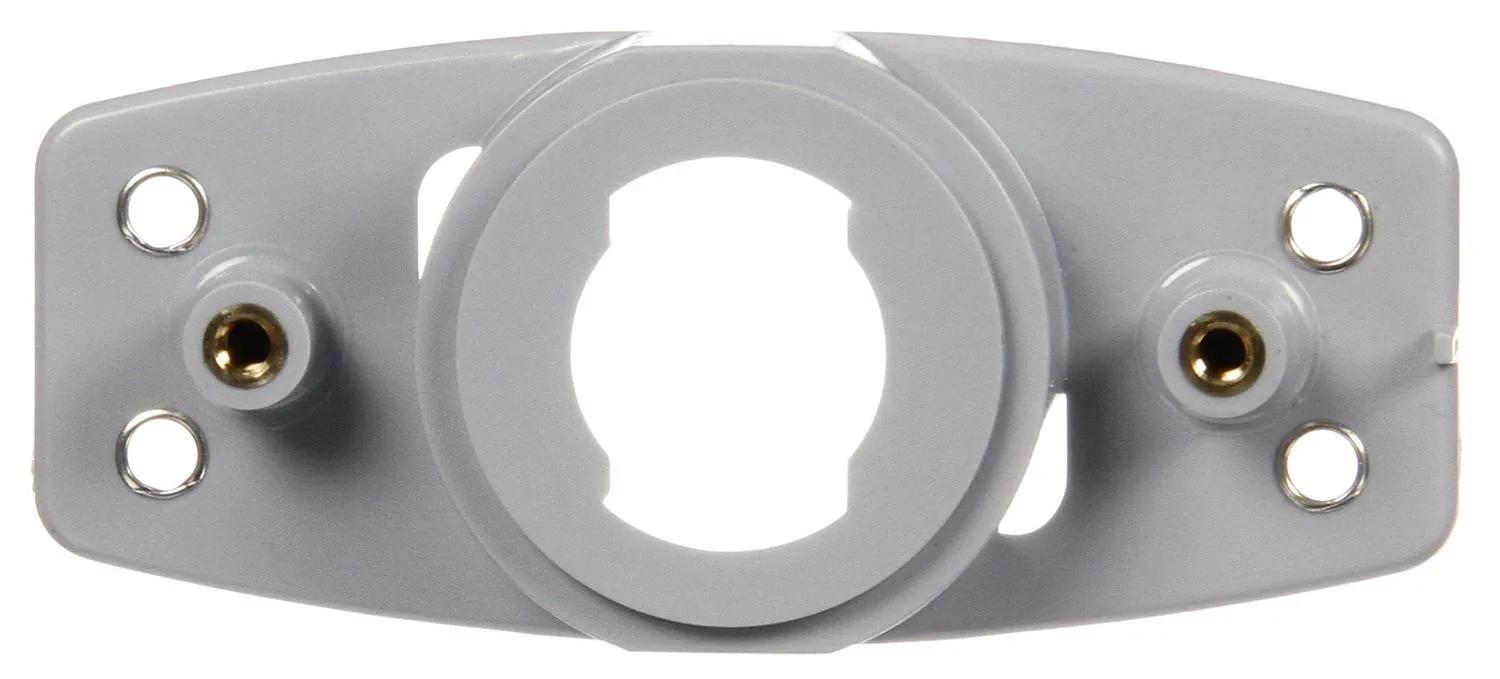

Lamp Mounting Bracket
#TRL30730
Product Overview
30 Series, Bracket Mount, 30 Series Lights, Used In Round Shape Lights, Gray ABS, 4 Screw Bracket Mount
Features & Benefits
- High-impact plastic deflector mount
- Inner bracket cams-on, cams-off lamp for quick installation
- Outer bracket provides additional protection
- Not recommended for PC requirements
- Designed for use with lamp #30200R/Y or #30250R/Y
- Wide variety of lighting products
Specifications
| Bracket Height | 2-13/32 in |
| Bracket Material | ABS |
| Depth | 2-13/32 in |
| Height | 2-13/32 in |
| Kit (Y/N) | No |
| Lamp Type | Model 30 Product |
| Length | 5-1/32 in |
| Material | ABS |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Bracket Mount |
| Series | 30 Series |
| Shape | Round |
| VMRS Code | 034-004-036 |
| Weight | 0.2 lb |
| Width | 5-1/32 in |
Interchanges & Equivalent parts:
| 30730 |
| A90460002 |
| HT50601671 |
| TL30730 |
| TLD30730 |
| 8413-30730 |
| LIT30730 |
| TL 30730 |
| 43690GR0 |
| GRT43690 |
