Lamp / Signal Universal Sealed
#TRL40006R
Product Overview

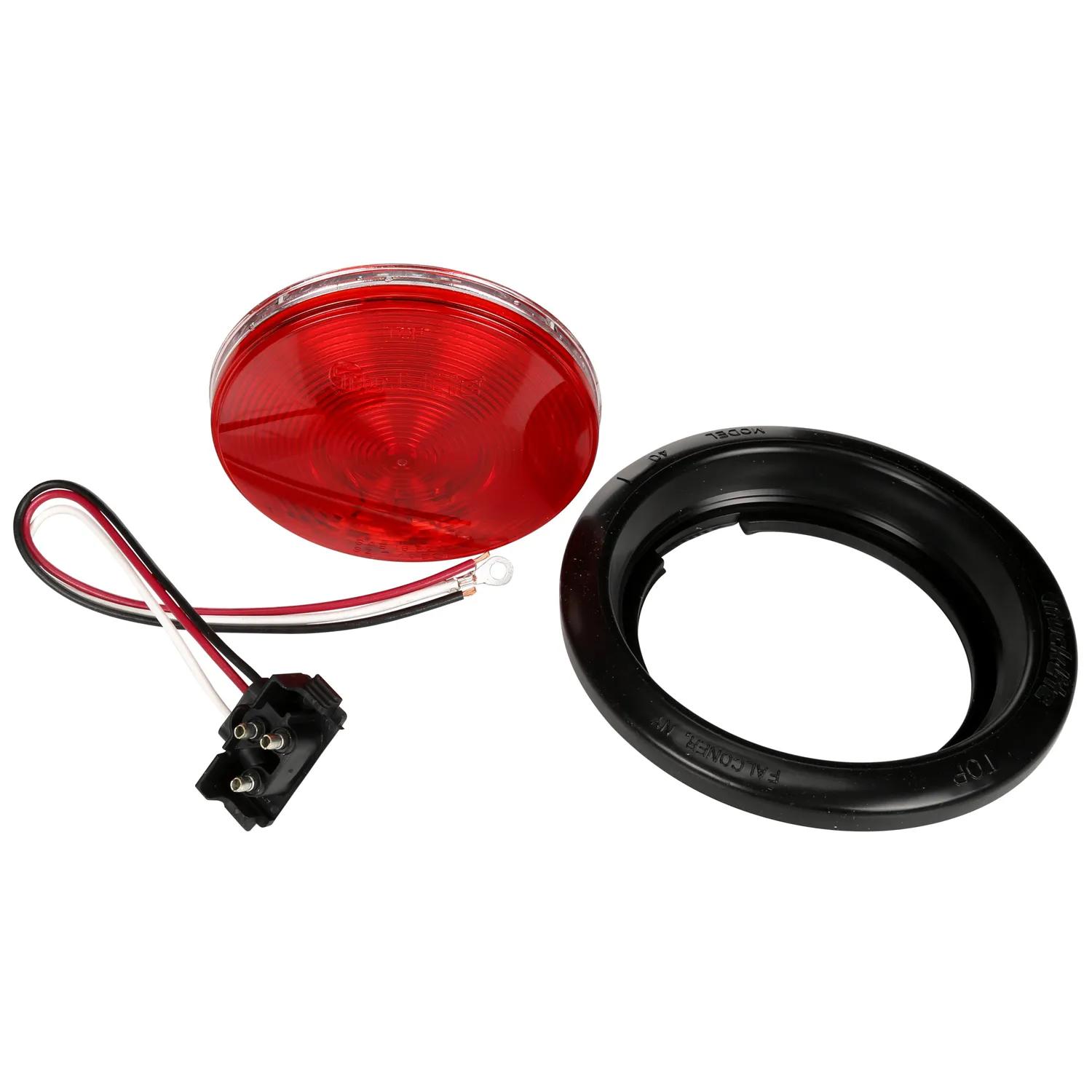

40 Series, incandescent, Red, Round, 1 Bulb, Stop/Turn/Tail, PVC Grommet Mount, PL-3, Stripped End/Ring Terminal, 12V, Kit
Features & Benefits
- Features clear back housing
- Not recommended for clearance marker applications
- Grommet kit features flush mounting in a 4-1/2"
- hole
Specifications
| Color | Red |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-7/64 in (5.36 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94993 |
| Height | 5-3/8 in (13.67 cm) |
| Kit (Y/N) | Yes |
| Lamp Length | 4-5/16 in (10.95 cm) |
| # Lamp Prongs | 3 |
| Lamp Type | Sealed |
| Lamp Volt Rating | 12 Volts |
| Lamp Width | 2.11 in. |
| Lens Color | Red |
| Lens Height | 4-15/64 in (10.74 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 4-15/64 in (10.74 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 4-1/2 in (11.43 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 3 |
| Plug Side One | PL-3 |
| Plug Side Two | Stripped End |
| Product Type | Stop/Turn/Tail |
| Reflectorized (Y/N) | No |
| Series | 40 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 0.58 lbs (0.26 kg) |
| Width | 5-3/8 in (13.67 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 52770 |
| 40006R |
| 704819 |
| 70481999 |
| 67000 |
| HT50602613 |
| TL40006R |
| TLD40006R |
| MTL070437 |
| 40006R3 |
| TRU40006R |
| 8413-40006R |
| LIT40006R |
| TL 40006R |
| TL 40006R |
| 426KR |
| 52770GR0 |
| GRT91740 |
| 91740 |
| 610290 |
