Lamp / Signal Universal Sealed
#TRL40206Y
Product Overview

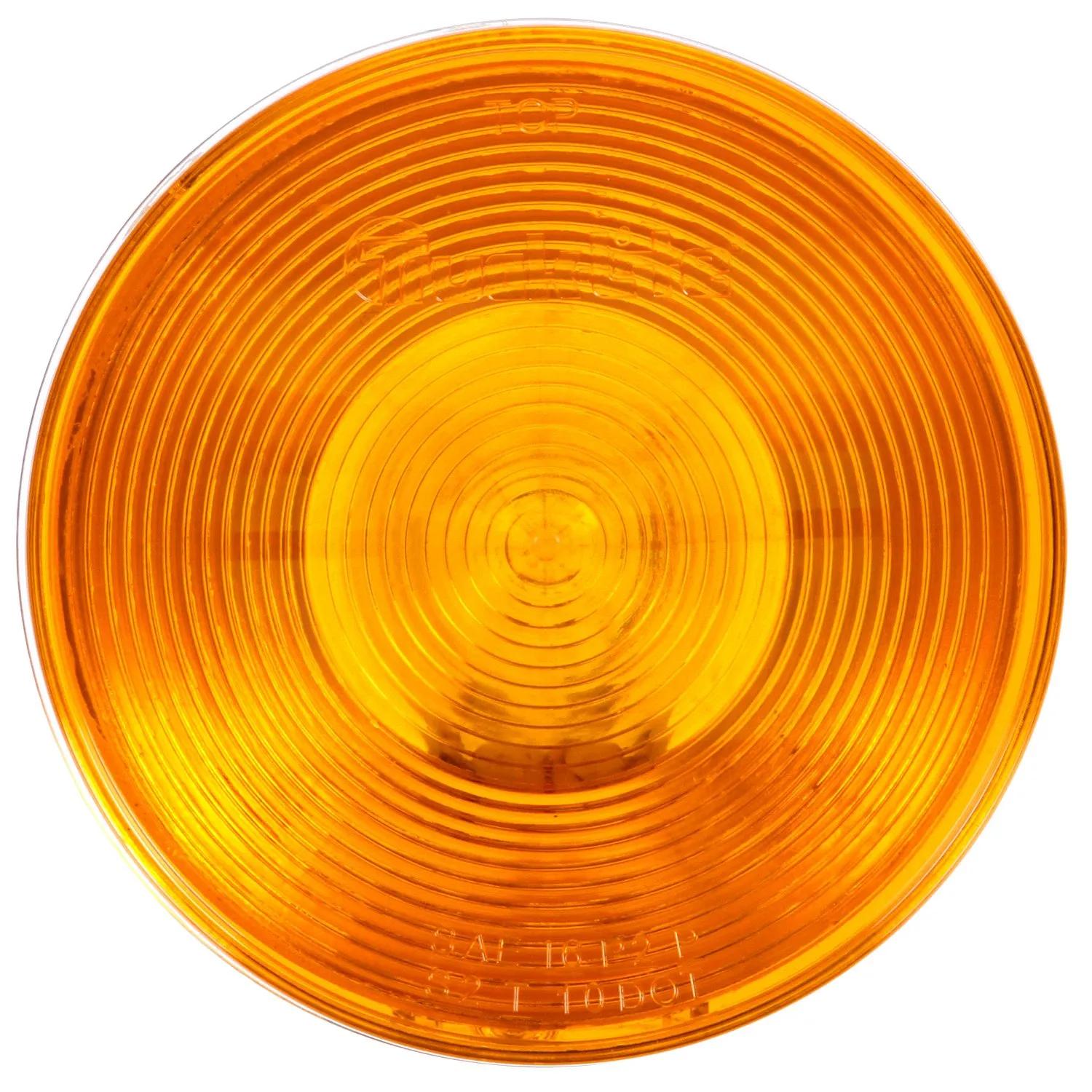

40 Series, Clear Back, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, 12V, PL-3
Features & Benefits
- Features clear back housing
- Not recommended for clearance marker applications
- Grommet kit features flush mounting in a 4-1/2" hole
Specifications
| Couleur | Yellow |
| Taille commune | 4 in (10.16 cm) |
| Major actuel | 2.1 amp |
| Mineure actuelle | 0.48 amp |
| Profondeur | 2-7/64 in (5.36 cm) |
| Coquille de diamant (O/N) | No |
| Convient au tirebouchon - Numéro(s) de pièce | 94993 |
| Hauteur | 4-5/16 in (10.95 cm) |
| Trousse (O/N) | No |
| Longueur de la lampe | 4,31 po |
| Nbre de broches de l'ampoule | 3 |
| Type de lampe | Sealed |
| Tension nominale de la lampe | 12 volt |
| Largeur de la lampe | 2,11 po |
| Couleur des lentilles | Yellow |
| Lentille - Hauteur | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | Polycarbonate |
| Mounting Connector Diameter (in.) | 4-1/2 in (11.43 cm) |
| Mount Type | Grommet Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Front/Park/Turn |
| Series | 40 Series |
| Shape | Round |
| Standard | CMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 0.36 lbs (0.16 kg) |
| Width | 4-5/16 in (10.95 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 46000600 |
| 10769022 |
| 40206Y |
| HT50602561 |
| TL40206Y |
| TLD40206Y |
| LCF00319 |
| UC10769022 |
| 4046A |
| 4046A-3 |
| 4046A3 |
| 16100107 |
| 8413-40206Y |
| LIT40206Y |
| TL 40206Y |
| TL 40206Y |
| 4040A |
| 426A |
