Lamp / Signal Universal Sealed
#TRL40258Y
Product Overview

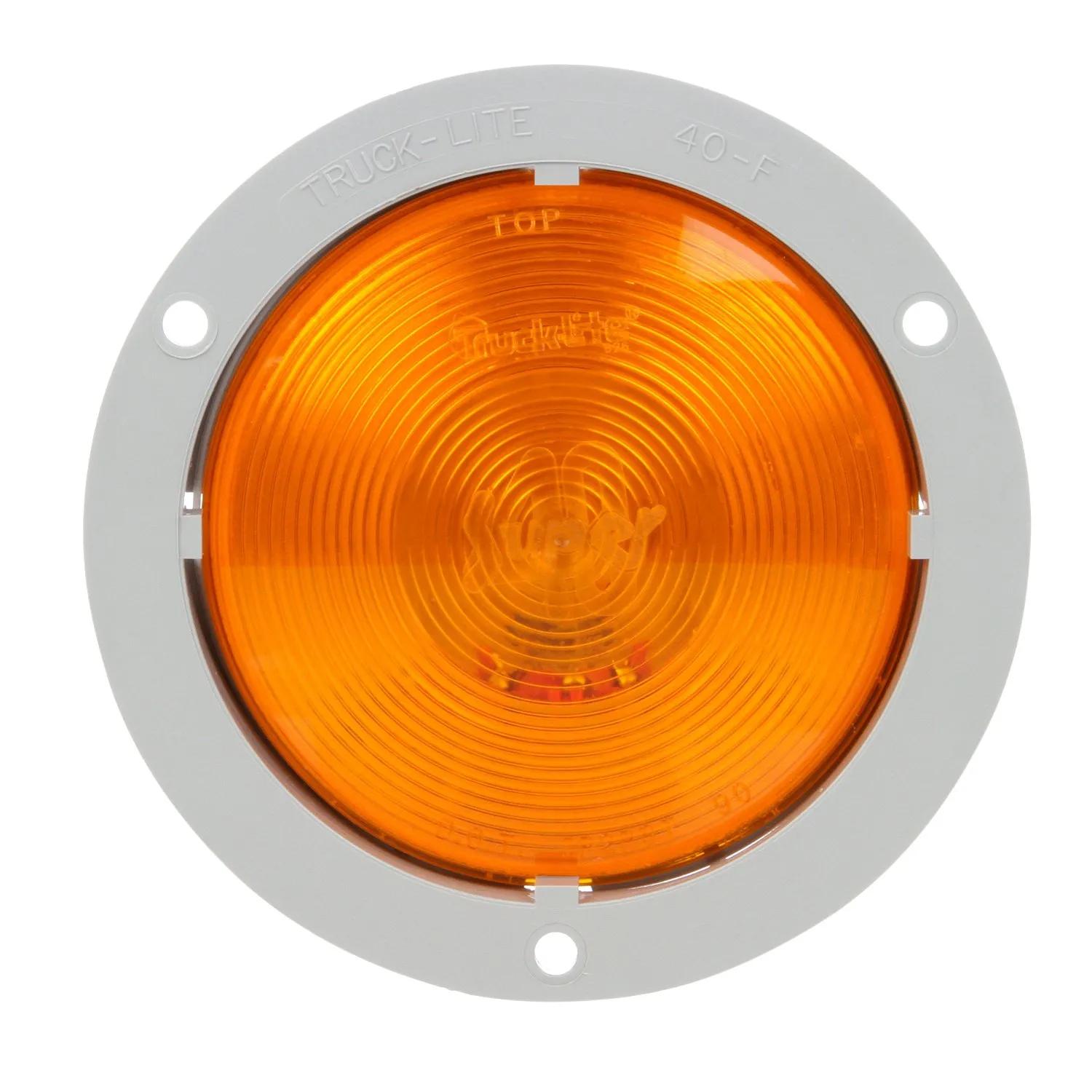

Super 40, Incandescent, Yellow Round, 1 Bulb, Front/Park/Turn, Gray ABS, Flange Mount, 12V, PL-3
Features & Benefits
- Uniquely designed shock-mount extends lamp life
- Diamond Shell versions available for additional protection
- Available with or without reflectorized lens
- Flush mount grommets are designed for mounting in a 4 1/2" hole
Specifications
| Color | Yellow |
| Common Size | 4 in (10.16 cm) |
| Current Major | 2.16 amp |
| Current Minor | 0.47 amp |
| Depth | 2-3/32 in (5.31 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94993 |
| Height | 5-1/2 in (13.97 cm) |
| Kit (Y/N) | No |
| Lamp Length | 5-1/2 in (13.97 cm) |
| # Lamp Prongs | 3 |
| Lamp Type | Sealed |
| Lamp Volt Rating | 12 Volts |
| Lamp Width | 2.09 in. |
| Lens Color | Yellow |
| Lens Height | 4-5/16 in (10.95 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 4-5/16 in (10.95 cm) |
| Material | Polycarbonate |
| Mount/Trim Color | Gray |
| Mount/Trim Material | ABS |
| Mount Type | Flange Mount |
| Number of Diodes/Bulbs | 1 |
| Number Of Wires | 3 |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Front/Park/Turn |
| Series | Super 40 |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 0.4 lbs (0.18 kg) |
| Width | 5-1/2 in (13.97 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 14200398 |
| 92510 |
| 40258Y |
| HT50603310 |
| TL40258Y |
| TRU40258Y |
| 40222Y |
| 40229Y |
| 40258Y3 |
| SEF4000A-2 |
| TLD40258Y |
| 841340258Y |
| 8413-40258Y |
| 850R-1P |
| LIT40258Y |
| TL 40258Y |
| TL 40258Y |
| 52953 |
