Lamp / Signal Universal Sealed
#TRL40748
Product Overview

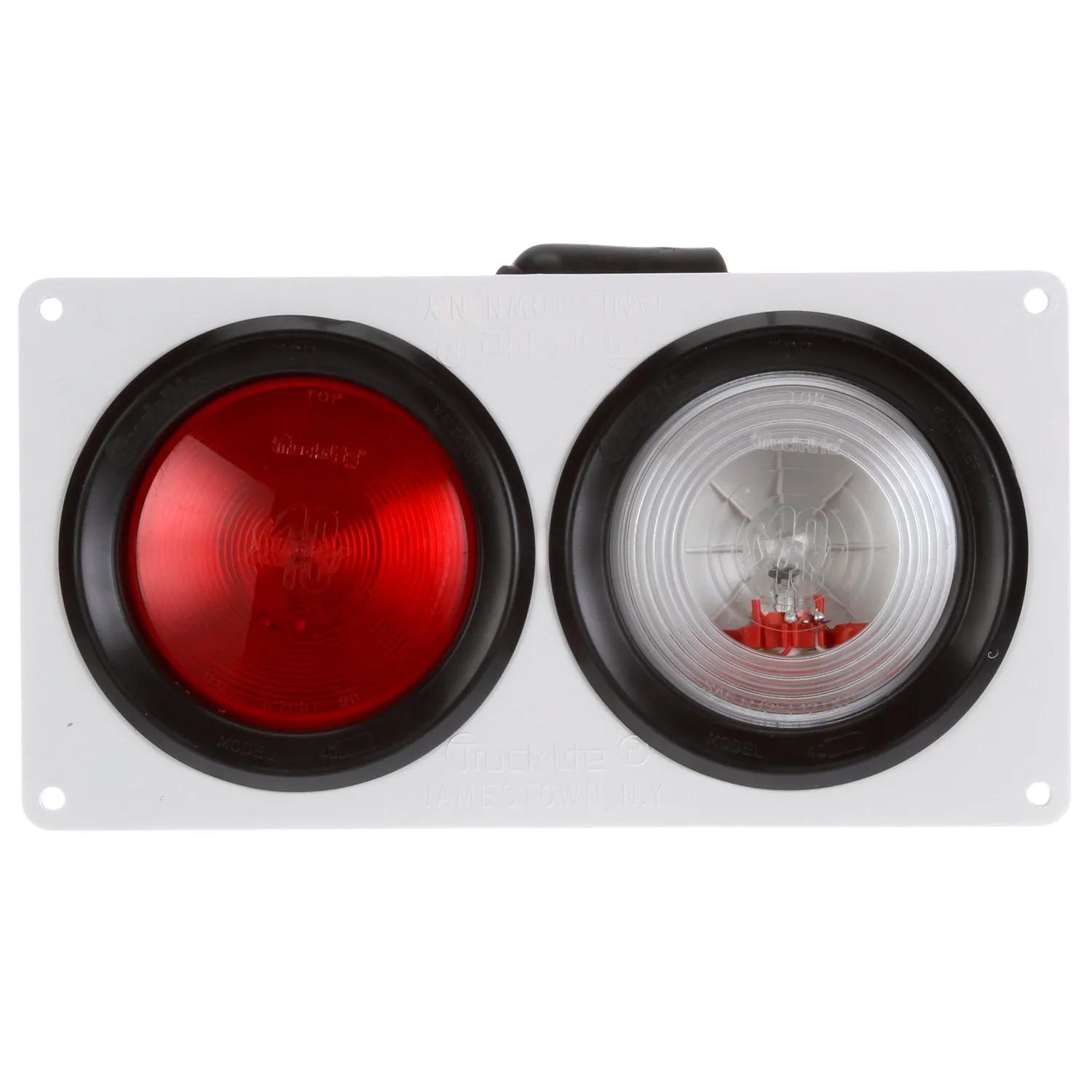

40 Series, Incandescent, Back-Up & S/T/T Light Module, Left Hand Side, Black PVC, 12V, Kit
Features & Benefits
- LH model 40 kit includes all necessary components for installation
- Sealed module prevents moisture and dirt ingress for enhanced functionality
- High impact plastic construction ensures durability and resistance to damage
- Designed to withstand harsh environmental conditions for reliable performance
- Light module enhances visibility and safety during nighttime driving conditions
- Universal sealed light module design provides versatility for various applications
Specifications
| Color | Red/White |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Function | Stop/Turn/Tail |
| Height | 5-45/64 in (14.48 cm) |
| Kit (Y/N) | Yes |
| Lamp Length | 11-19/32 in (29.44 cm) |
| Lamp Type | Sealed |
| Lamp Width | 5.7 in. |
| Left, Right or Both Side | Left |
| Lens Color | Clear & Red |
| Lens Height | 3-29/32 in (9.93 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 3-29/32 in (9.93 cm) |
| Material | ABS |
| Mounting Connector Diameter (in.) | 9/32 in (0.71 cm) |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Mount Type | Side Mount |
| Number of Lamps | 2 |
| Number Of Wires | 5 |
| Plug Side One | PL-3 |
| Plug Side Two | Blunt Cut |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Square |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| VMRS Code | 034-003-074 |
| Volt | 12V |
| Weight | 3.4 lbs (1.54 kg) |
| Width | 12-19/64 in (31.24 cm) |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 40748 |
| 46002236 |
| 878070230 |
| 77044444 |
| 5041223 |
| 841340748 |
| HT50602541 |
| TL40748 |
| TLD40748 |
| TRU40748 |
| 16512864 |
| 4444 |
| 4452 |
| 8413-40748 |
| LIT40748 |
| TL 40748 |
| TL 40748 |
| 4454 |
| 83847 |
