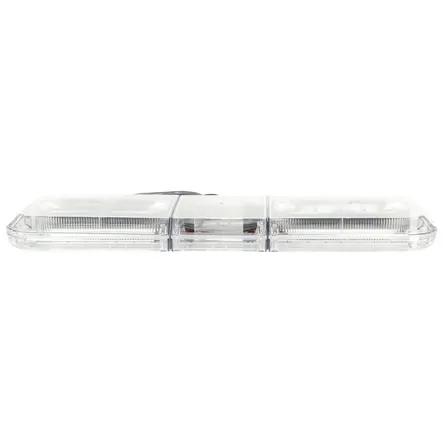

LED, Light Bar, Clear/Yellow, Rectangular, 48 Diode, Permanent Mount, 306 FPM, Selectable Flash Patterns, Hardwired, Stripped End, 12-24V
#TRL92867Y
Product Overview
LED, Light Bar, Clear/Yellow, Rectangular, 48 Diode, Permanent Mount, 306 FPM, Selectable Flash Patterns, Hardwired, Stripped End, 12-24V
Features & Benefits
- Conformal coated circuitry protects against shock and vibration. Thirty five customer selectable flash patterns.
- High/low power select. Independent enable of front and rear facing LEDs.
Specifications
| Amps | 4.6 amp |
| Common Size | 4 in (10.16 cm) x 36 in (91.44 cm) |
| Contents | LED 46 inch light bar |
| Depth | 15 in (38.1 cm) |
| Flashes per Minute | 306 Quad |
| Flash Rate (FPM) | 306 FPM |
| Height | 3-5/8 in (9.22 cm) |
| Housing Material | Polycarbonate |
| Kit (Y/N) | No |
| Lamp amp Rating | 6.5 amp |
| Lamp Color | Yellow |
| Lamp Length | 15 |
| Lamp Material | Polycarbonate Lens And Housing, Extruded Aluminum Frame, 18 ga. Wire |
| Lamp Shape | Rectangular |
| Lamp Type | LED Light Bar |
| Lamp Volt Rating | 12 - 24 Volts |
| Lamp Width | 46 |
| Lamp Wire Length | 16 |
| # Lamp Wires | 5 |
| LED Lamp(s) Available | LED |
| Lens Color | Clear |
| Lens Height | 3-5/8 in (9.22 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Rectangular |
| Lens Width | 46 in (116.84 cm) |
| Lighting Technology | LED |
| Mounting Method | Permanent |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Aluminum |
| Mount Type | Permanent Mount |
| Number of Diodes/Bulbs | 48 |
| Number Of Flash Patterns | 35 |
| Number Of Wires | 15 |
| Package Quantity | 1 |
| Packaging | Box |
| Pattern | Quad |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Product Type | Light Bar |
| VMRS Code | 034-006-004 |
| Volt | 12V & 24V |
| Weight | 32 lbs (14.51 kg) |
| Width | 46 in (116.84 cm) |
| Wire Gauge | 10 |
Interchanges & Equivalent parts:
| 1000047E |
| 92867Y |
| D27A41H |
| FX8AAAA |
| 5464LED |
