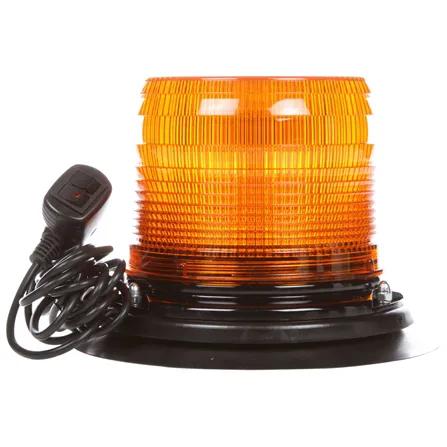

LED, Low Profile Beacon, Yellow, Magnetic Mount, Class II, Hardwired, Cigarette Adapter, 12-24V
#TRL92863Y
Product Overview
LED, Low Profile Beacon, Yellow, Magnetic Mount, Class II, Hardwired, Cigarette Adapter, 12-24V
Features & Benefits
- Magnetic mounting for versatile operation. Field selectable flash patterns for single, double or quad flash patterns. Twist on/off lens.
- Replacement lens number LIT 99221Y
Specifications
| Amps | 0.3 amp |
| Compliance Family | SAE |
| Contents | LED Strobe |
| Depth | 6-13/32 in (16.28 cm) |
| Flashes per Minute | 244 Quad |
| Flash Rate (FPM) | 244 FPM |
| Height | 4-3/4 in (12.07 cm) |
| Housing Material | Polycarbonate |
| Kit (Y/N) | No |
| Lamp amp Rating | 0.6 Amp At 12 Volts, 0.3 Amp At 24 Volts |
| Lamp Color | Yellow |
| Lamp Length | 4.75 |
| Lamp Material | Polycarbonate Lens And Housing, 18 And 22 ga. Wire |
| Lamp SAE Rating | Class 2 |
| Lamp Shape | Round |
| Lamp Type | LED Strobe Low Profile Magnetic Mount |
| Lamp Volt Rating | 12 - 24 Volts |
| Lamp Width | 6.4 |
| Lamp Wire Length | 16 |
| # Lamp Wires | 5 |
| LED Lamp(s) Available | LED |
| Lens Color | Yellow |
| Lens Height | 4-1/8 in (10.49 cm) |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Lens Width | 5-1/2 in (13.97 cm) |
| Lighting Technology | LED |
| Mounting Method | Magnetic |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Mount Type | Magnetic Mount |
| Number of Diodes/Bulbs | 4 |
| Number Of Wires | 1 |
| Package Quantity | 1 |
| Packaging | Box |
| Pattern | Quad |
| Plug Side One | Hardwired |
| Plug Side Two | Cigarette Adapter |
| Product Type | Beacon |
| Profile | Low Profile |
| Standard | J845 |
| VMRS Code | 034-006-004 |
| Volt | 12V & 24V |
| Weight | 5 lbs (2.27 kg) |
| Width | 6-13/32 in (16.28 cm) |
| Wire Gauge | 18 |
Interchanges & Equivalent parts:
| 255HTSLV |
| 77823 |
| 7965AVM |
| CL299AAMH |
| L21 |
| LED625MXF |
| 77123 |
| 92863Y |
| 251141 |
| 8413-92863Y |
