2 POINTS

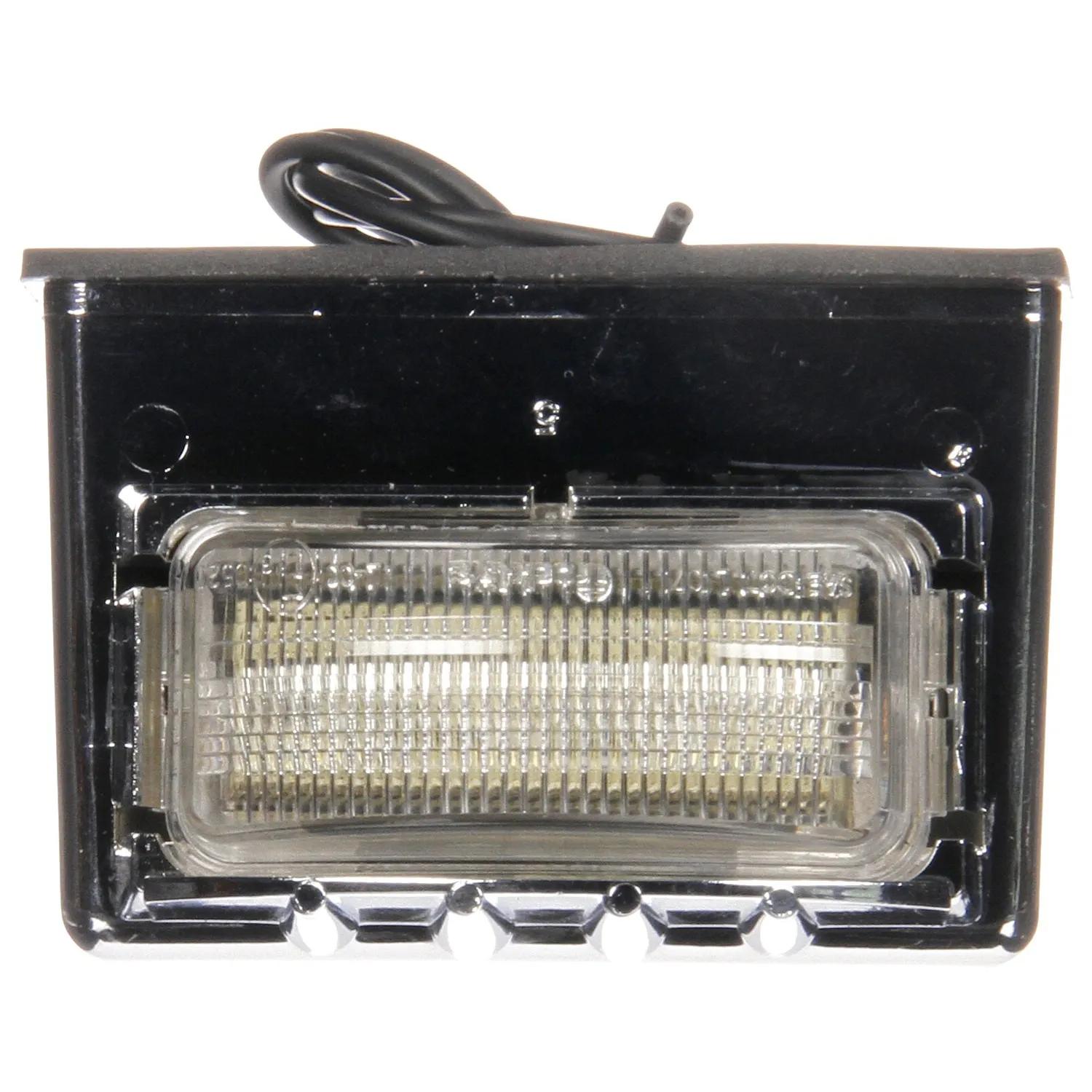

License Light, Rectangular, Le: 2-5/16 in
#TRL15056
Product Overview
15 Series, LED, 3 Diode, License Light, Rectangular, Chrome Bracket Mount, Hardwired, Stripped End, 24V, Kit
Features & Benefits
- Features snap-fit mount for quick installation and easy replacement
- Bracket may be surface mounted
- High quality construction
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Amps | 0.03 amp |
| Color | White |
| Common Size | 1 in |
| Contents | LED Lamp & Chrome Bracket Kit |
| Depth | 2-33/64 in |
| Diameter | 3-3/8 in |
| Diamond Shell (Y/N) | No |
| Distance Between Mounting Holes | 2-19/64 in |
| Height | 2-5/16 in |
| Housing Color | Chrome |
| Kit (Y/N) | Yes |
| Lamp Type | LED |
| Length | 2-5/16 in |
| Lens Height | 1-13/64 in |
| Lens Material | Polycarbonate |
| Lens Width | 2-31/64 in |
| License Plate Light Size | 3-19/64 in (8.38 cm) x 2-19/64 in (5.84 cm) x 2-1/2 in (6.35 cm) |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | License Light |
| Series | 15 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE, ECE |
| Technology | LED |
| VMRS Code | 034-002-042 |
| Volt | 24V |
| Weight | 0.4 lb |
| Width | 3-3/8 in |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 15056 |
| 15056TLT |
| 153C-143 |
| 8413-15056 |
| LIT15056 |
| TL 15056 |
| TL15056 |
| TLD15056 |
