License Light, Rectangular, Le: 3-3/8 in
#TRL435W
Product Overview
Signal-Stat, Incandescent, 1 Bulb, License Light, Rectangular, Chrome 2 Screw Bracket Mount, Hardwired, Stripped End, 12V
Features & Benefits
- Original equipment on Airstream
- Lamp body chrome plated steel
- White painted steel license frame
- Rubber pad between lamp and frame
Specifications
| Amps | 0.59 amp |
| Color | Blanc |
| Common Size | 2 in (5.08 cm) |
| Contents | Lampe |
| Depth | 2-3/8 in (6.05 cm) |
| Diameter | 10-5/8 po (27 cm) |
| Diamond Shell (Y/N) | Non |

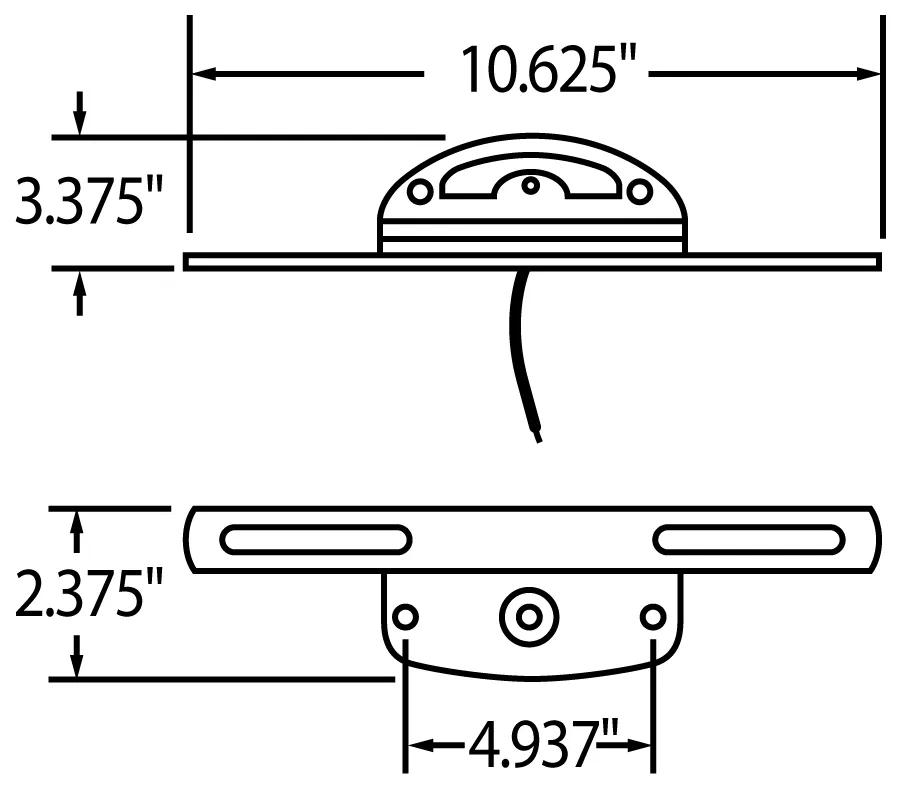

| Distance Between Mounting Holes | 4-29/32 po (12,47 cm) |
| Height | 3-3/8 in (8.59 cm) |
| Housing Color | Chrome |
| Kit (Y/N) | No |
| Length | 3-3/8 in (8.59 cm) |
| Lens Height | 1 po (2,54 cm) |
| Lens Material | Acrylic |
| Lens Width | 3-31/32 po (10,08 cm) |
| License Plate Light Size | 10-19/32 po (26,9 cm) x 2-19/64 po (5,84 cm) x 3-19/64 po (8,38 cm) |
| Material | Acier |
| Mount Type | Montage par support |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | License Light |
| Series | Signal-Stat |
| Shape | Rectangle |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| VMRS Code | 034-004-184 |
| Volt | 12V |
| Weight | 0.98 lb (0.44 kg) |
| Width | 10-5/8 in (27 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 17319102 |
| 601315 |
| 60321 |
| 435W |
| 500053 |
| 8413435W |
| M436B |
| SIG435W |
| TL435W |
| TLD435W |
| TRU435W |
| 436B |
| 8413-435W |
| 435WS1G |
| 600813 |
| GRT60081 |
| GRT60151 |
| GRT60321 |
| 60151 |
| LT2034 |
| LIT435W |
| TL 435W |
| 60081 |
