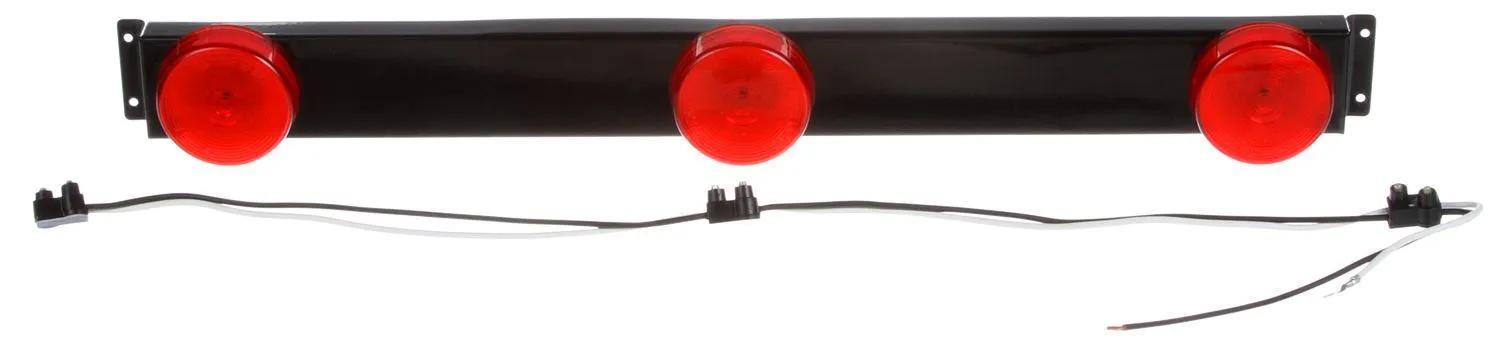

Light Bar, Red, Incandescent
#TRL10745R
Product Overview
10 Series, Incandescent, Identification Bar, Round, Red, 3 Lights, 9" Centers, Black, 12V, Kit
Features & Benefits
- Features rugged stainless steel or black enameled ID bar
- Lamps are mounted on 6" or 9" centers
Specifications
| Color | Red |
| Contents | Identification Bar, Lamps, Wiring |
| Current Major | 0.33 amp |
| Depth | 2 in (5.08 cm) |
| Fits Pigtail Part #(s) | 93908 |
| Height | 1-29/64 in (3.68 cm) |
| Includes Gasket | No |
| Kit (Y/N) | Yes |
| Lamp Screw Hole Diameter | 9/64 in (0.36 cm) |
| Lamps Included | Yes |
| Lamp Type | Model 15 Steel ID Bar |
| Length | 22 in (55.88 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2 in (5.08 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | Steel |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Identification Bar |
| Series | 10 Series |
| Shape | Rectangular |
| VMRS Code | 034-002-013 |
| Volt | 12V |
| Weight | 0.99 lb (0.45 kg) |
| Width | 22 in (55.88 cm) |
| Wire Gauge | 14 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 49042 |
| 49142 |
| 10745R |
| 878990607 |
| 841310745R |
| 895732200 |
| TKL10745R |
| HT50602069 |
| TLD10745R |
| TRU10745R |
| LB2500RSS |
| MTL07055100R |
| TL10745R |
| 253-9752 |
| 713530 |
| 71353099 |
| 2539752 |
| MNC253-9752 |
| 8413-10745R |
| LIT10745R |
| LT7910R |
| TL 10745R |
| TL 10745R |
| 49042GR0 |
| GRT49042 |
