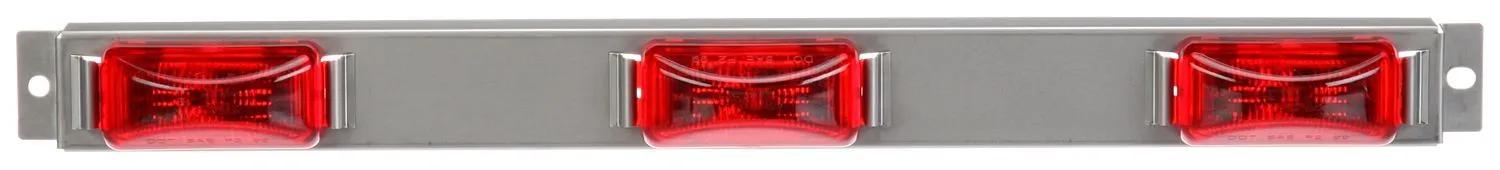

Light Bar, Red, LED

#TRL15050R

Product Overview

15 Series, LED, Identification Bar, Rectangular, Red, 3 Lights, 6" Centers, Silver, 12V, Kit

Specifications

Center Distance	6 in (15.24 cm)
Color	Red
Contents	Identification Bar, Lamps, Wiring
Current Major	0.05 amp
Depth	1-19/32 in (4.04 cm)
Dimension	2.5 in L x 1.21 in W x .83 in D
Fits Pigtail Part #(s)	93943
Height	1-3/8 in (3.51 cm)
Includes Gasket	No
Kit (Y/N)	Yes
Lamp Screw Hole Diameter	7/32 in (0.56 cm)
Lamps Included	Yes
Lamp Type	Model 15 ID Bar
Length	16-1/2 in (41.91 cm)
Lens Material	Polycarbonate
Lens Width	2-31/64 in (6.3 cm)
Material	Polycarbonate
Mount/Trim Material	Stainless Steel
Mount Type	Bracket Mount
Number Of Wires	2
Packaging	Boxed
Plug Side One	PL-10
Plug Side Two	.180 Bullet
Product Type	Identification Bar
Series	15 Series
Shape	Rectangular
Standard	FMVSS 108, CMVSS 108, DOT, SAE
Technology	LED
VMRS Code	034-004-281
Volt	12 V
Weight	0.3 lb (0.14 kg)
Width	16-1/2 in (41.91 cm)
Wire Gauge	14 ga
Wire Length	6 in (15.24 cm)

Interchanges & Equivalent parts:

521403, 103457, 611512, 15050R, 15053S, 893983220, 47182, 841315050R, KL10112RM, HT50601607, TL15050R, TLD15050R, TRU15050R, M20323R, 161120, TL15050R, 15050R, TL15050R, TRU15050R, 127-15003R-BP, 15053S, 47182, 49182GR0, 8413-15050R, KL-10112RM, LED716R, LIT15050R, TL 15050R, TL 15050R, TL15050R, TLD15050R, TLT 15050R, LBL1225R, M20323R, PTL1550R, TKL15050R, TL15050R, TRU15050R, 611512, 47182, 521403, 161120, 15053S, 15050R, HT50601607, KL10112RM, TL15050R, TLD15050R, 103457, 893983220, 841315050R, TL15050R, 15050R, M20323R, TRU15050R, TL 15050R, 15053S, 49182GR0, TL15050R, LIT15050R, 127-15003R-BP, 8413-15050R, KL-10112RM, TLD15050R, LED716R, 47182, TL 15050R, TLT 15050R, PTL1550R, M20323R, LBL1225R, TKL15050R
