Light Bar, Red, LED
#TRL33751R
Product Overview

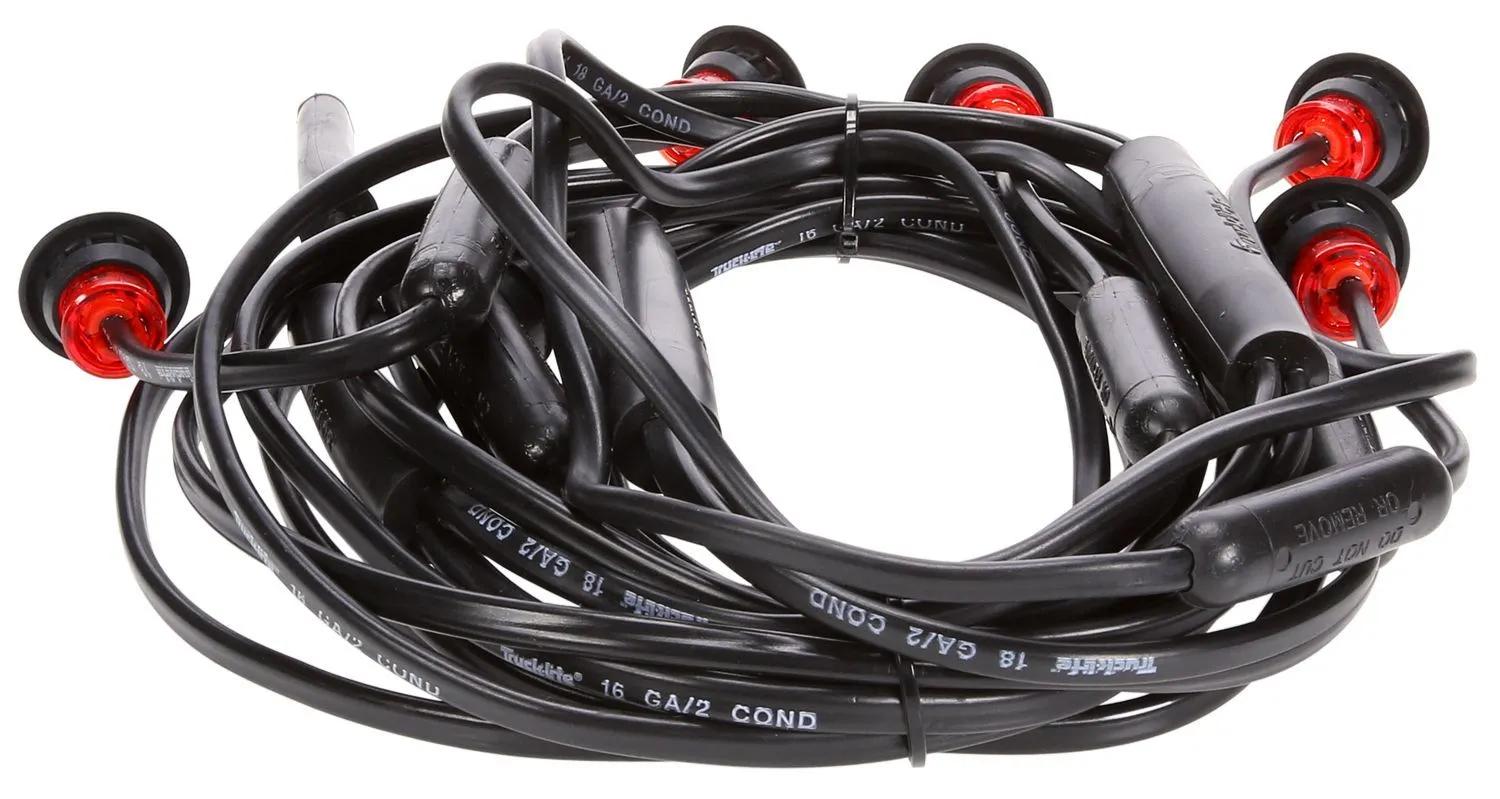

33 Series, LED, ID Light Assembly, Round, Red, 5 Lights, Black, 12V, Kit
Features & Benefits
- US patent #6612728
- World smallest LED marker lamp for the transportation industry
- Hardwired lamp design is easily retrofitted
- Requires 3/4'' mounting hole
Specifications
| Color | Red |
| Contents | 5 Lamp Id Assembly |
| Current Major | 0.05 amp |
| Depth | 31/32 in (2.46 cm) |
| Fits Pigtail Part #(s) | Hard Wired |
| Height | 31/32 in (2.46 cm) |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Length | 23/32 in (1.83 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 23/32 in (1.83 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Product Type | ID Light Assembly |
| Series | 33 Series |
| Shape | Round |
| VMRS Code | 034-004-149 |
| Volt | 12V |
| Weight | 1 lb (0.45 kg) |
| Width | 23/32 in (1.83 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 64 in (162.56 cm) |
| Lens Height | 23/32 in (1.83 cm) |
| Housing Color | Black |
Interchanges & Equivalent parts:
| 33751R |
| TRU33751R |
| 33751RTLT |
| 8413-33751R |
| LIT33751R |
| TL 33751R |
| TL 33751R |
| TL33751R |
| TLD33751R |
