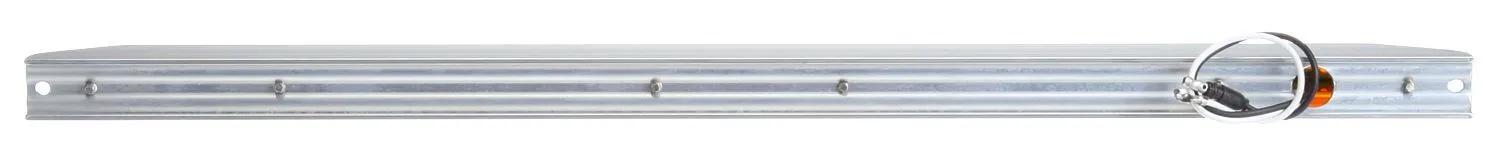

Light Bar, Yellow, LED
#TRL35741Y
Product Overview
35 Series, LED, Identification Bar, Rectangular, Yellow, 3 Lights, 9" Centers, Silver, 12V, Kit
Features & Benefits
- Designed to fit applications requiring minimal space
- Slim 1" width is perfect for upper rail mounting
- Draws less current, allowing more power for other vehicle requirements
Specifications
| Color | Yellow |
| Contents | Identification Bar, Lamps, Wiring |
| Current Major | 0.05 amp |
| Depth | 1-11/16 in (4.29 cm) |
| Dimension | 4 in L x .75 in W x 1.25 in D |
| Fits Pigtail Part #(s) | 96996 |
| Height | 1 in (2.54 cm) |
| Includes Gasket | No |
| Kit (Y/N) | Yes |
| Lamps Included | Yes |
| Lamp Type | Model 35 ID Bar |
| Length | 17 in (43.18 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4 in (10.16 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | Aluminum |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet, Standard |
| Product Type | Identification Bar |
| Series | 35 Series |
| Shape | Rectangular |
| VMRS Code | 034-004-149 |
| Volt | 12V |
| Weight | 2.17 lb (0.98 kg) |
| Width | 23 in (58.42 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 6 in (15.24 cm) |
Interchanges & Equivalent parts:
| 35741Y |
| EL01004 |
| HT50601566 |
| TL35741Y |
| TLD35741Y |
| 8413-35741Y |
| LIT35741Y |
| TL 35741Y |
| TL 35741Y |
