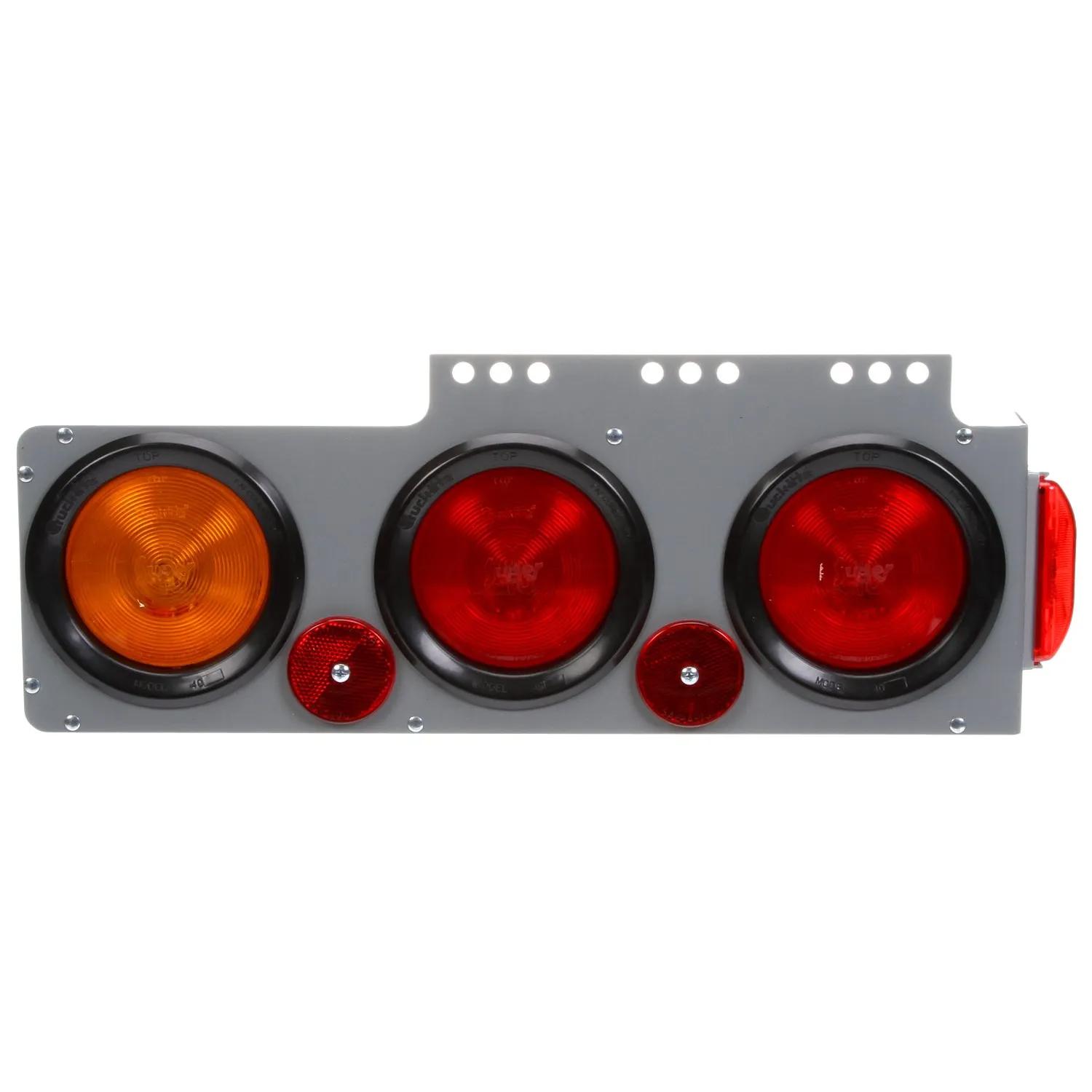

Light Module, Red & Amber, Incandescent
#TRL40763
Product Overview
40 Series, Incandescent, S/T/T Light Module w/ Side Marker, Right Hand Side, Black PVC, Turn Signal, 12V
Features & Benefits
- Popular choice for straight truck applications
- Compact design fits various mounting locations
- Durable construction ensures reliable signaling
- Easy integration into existing lighting systems
- Enhances visibility for safer driving conditions
- Universal sealed light module designed for right-hand applications
Specifications
| Color | Amber & Red |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Function | Stop/Turn/Tail |
| Height | 7-3/4 in (19.69 cm) |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Sealed |
| Length | 20-3/16 in (51.28 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 3-29/32 in (9.93 cm) |
| Material | PVC |
| Mount Type | Side Mount |
| Number of Lamps | 4 |
| Number Of Wires | 6 |
| Plug Side One | PL-3, Female |
| Plug Side Two | 2 Position Plug |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 034-002-000 |
| Volt | 12V |
| Weight | 9.6 lb (4.35 kg) |
| Width | 20-3/16 in (51.28 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 40763 |
| 841340763 |
| HT50602532 |
| TL40763 |
| TLD40763 |
| LCF69591 |
| 253-5706 |
| 2535706 |
| MNC253-5706 |
| TRU40763 |
| 8413-40763 |
| LIT40763 |
| TL 40763 |
| TL 40763 |
