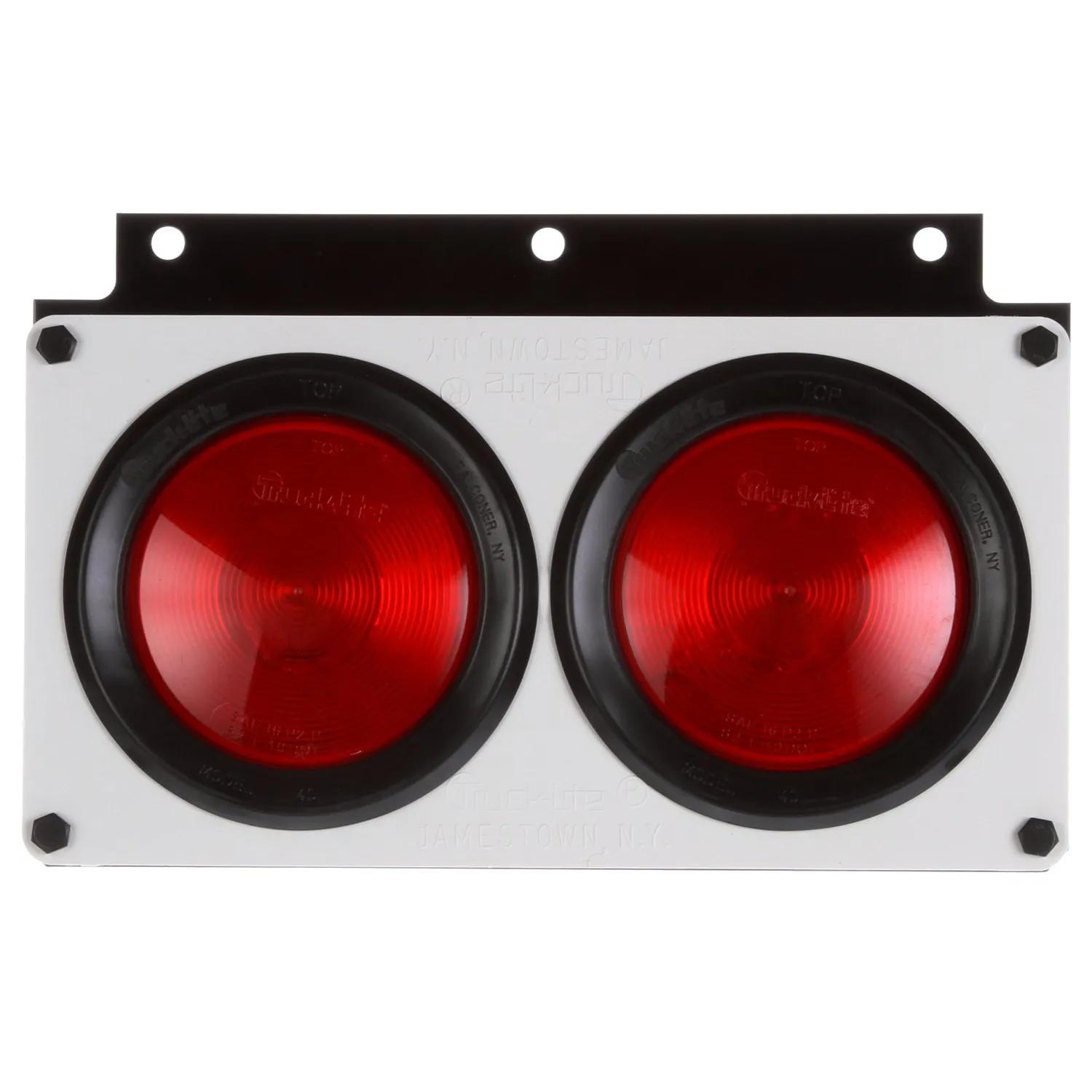

Light Module, Red, Incandescent
#TRL40747
Product Overview
40 Series, Incandescent, S/T/T Light Module, Right Hand Side, Black Steel, 12V
Specifications
| Color | Red |
| Current Major | 5.1 amp |
| Current Minor | 3.48 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Function | Stop/Turn/Tail |
| Height | 7-3/4 in (19.69 cm) |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Sealed |
| Length | 11-19/32 in (29.44 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 3-29/32 in (9.93 cm) |
| Material | Steel |
| Mount Type | Side Mount |
| Number of Lamps | 2 |
| Number Of Wires | 5 |
| Plug Side One | PL-3, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 034-006-008 |
| Volt | 12V |
| Weight | 4.28 lb (1.94 kg) |
| Width | 12-1/4 in (31.12 cm) |
| Wire Gauge | 14 ga |
Interchanges & Equivalent parts:
| 253-562 |
| 253562 |
| 40747-3 |
| MNC253-562 |
| TRU40747 |
| 8413-40747 |
| LIT40747 |
| TL 40747 |
| TL 40747 |
| TL40747 |
| TLD40747 |
| 34-002-152 |
