Light Module, Red, LED
#TRL40637
Product Overview

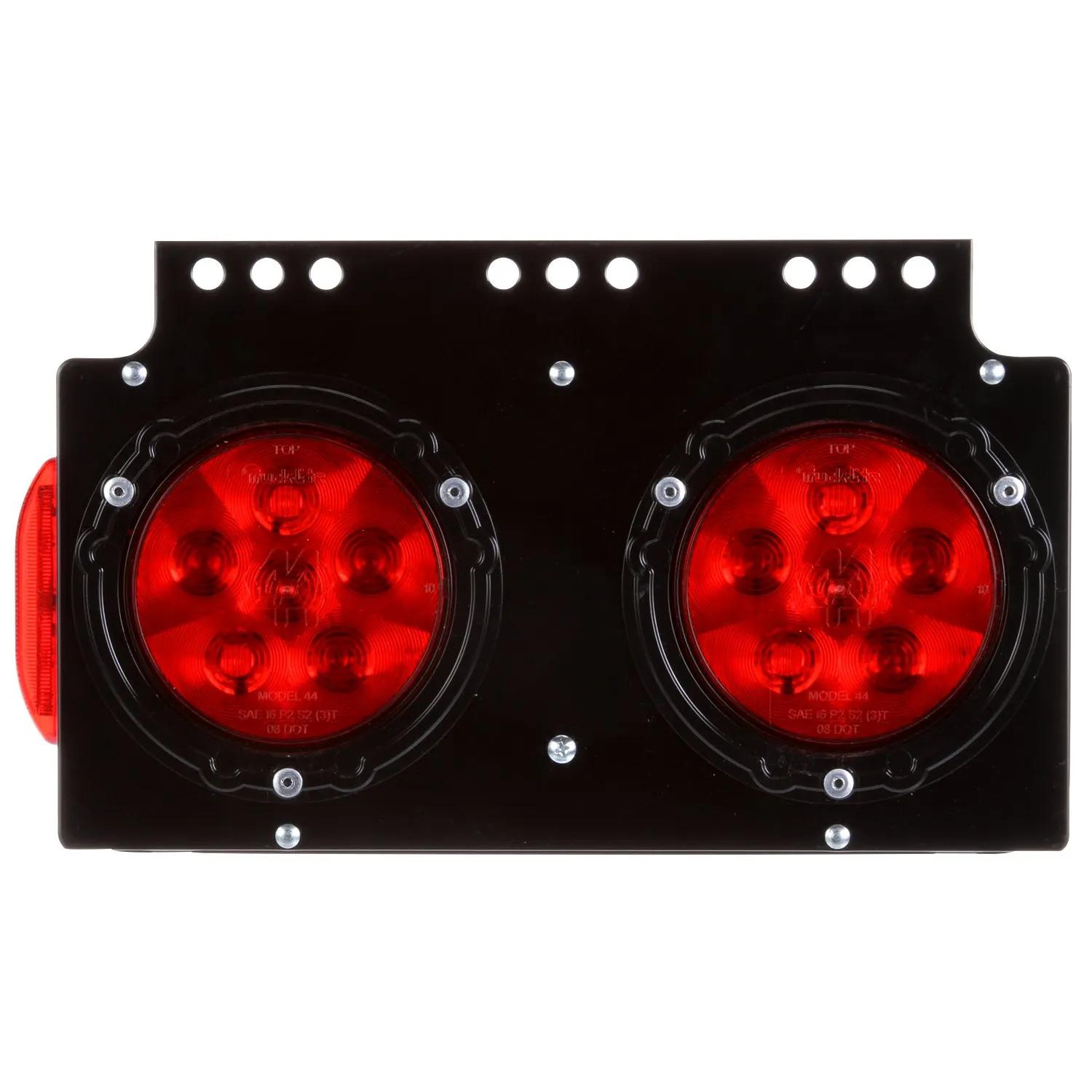

40 Series, LED, M/C & S/T/T Light Module w/ Side Marker, Left Hand Side, Black Steel, 12V
Features & Benefits
- Optimized for secure mounting and stability
- Easy integration with existing lighting systems
- Lamp mounting bracket designed for LH installation
- Includes Super 44 LED flange kit for enhanced lighting
- Durable construction ensures reliable support for lamps
- Lightweight design minimizes additional weight on vehicles
Specifications
| Color | Red |
| Contents | Complete Module |
| Current Major | 0.24 amp |
| Current Minor | 0.02 amp |
| Depth | 2-5/8 in (6.68 cm) |
| Function | Stop/Turn/Tail |
| Height | 7-3/4 in (19.69 cm) |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Super 44 LED |
| Length | 13-1/2 in (34.29 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-13/64 in (10.67 cm) |
| Material | Steel |
| Mount Type | Bolt Mount |
| Number of Lamps | 3 |
| Number Of Wires | 4 |
| Plug Side One | Fit 'N Forget S.S. |
| Plug Side Two | 2 Position Plug |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 034-004-273 |
| Volt | 12V |
| Weight | 7 lb (3.17 kg) |
| Width | 12-7/8 in (32.72 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 40637 |
| 841340637 |
| TL40637 |
| TLD40637 |
| TRU40637 |
| 8413-40637 |
| LIT40637 |
| TL 40637 |
| TL 40637 |
| 51032GR0 |
