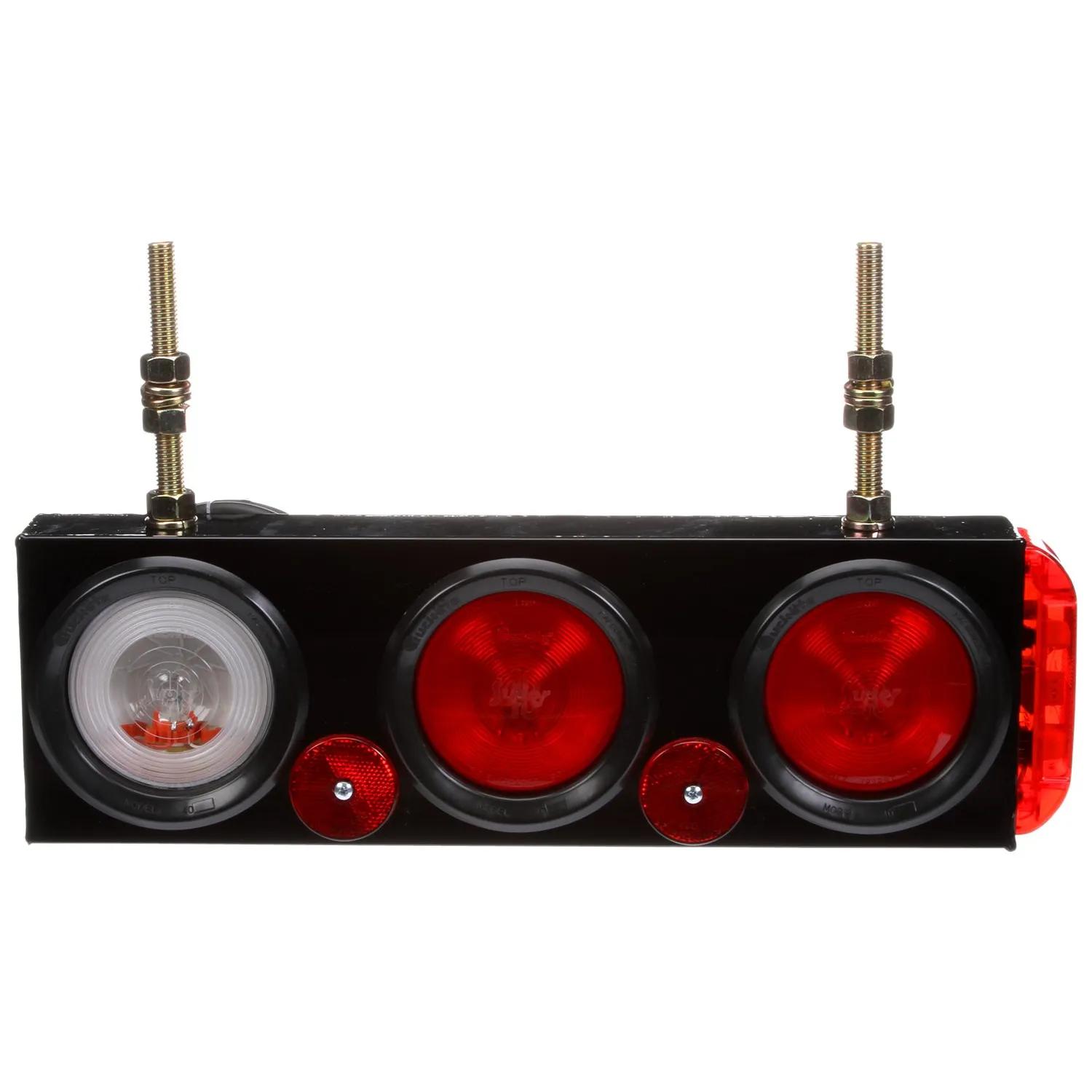

Light Module, Red & White, Incandescent
#TRL40759
Product Overview
40 Series, Incandescent, Back-Up & S/T/T Light Module w/ Side Marker, Right Hand Side, Black PVC, 12V
Features & Benefits
- Popular choice for straight truck applications
- Compact design fits various mounting locations
- Durable construction ensures reliable signaling
- Easy integration into existing lighting systems
- Enhances visibility for safer driving conditions
- Universal sealed light module designed for right-hand applications
Specifications
| Color | Red & White |
| Current Major | 2.1 amp |
| Current Minor | 0.48 amp |
| Depth | 2-1/2 in (6.35 cm) |
| Function | Stop/Turn/Tail |
| Height | 6-3/8 in (16.21 cm) |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Sealed |
| Length | 21-13/64 in (53.85 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 3-29/32 in (9.93 cm) |
| Material | PVC |
| Mount Type | Stud Mount |
| Number of Lamps | 4 |
| Number Of Wires | 5 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Ring Terminal |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 034-002-000 |
| Volt | 12V |
| Weight | 11.1 lb (5.03 kg) |
| Width | 21-13/64 in (53.85 cm) |
| Wire Gauge | 14 ga |
| Wire Length | 6-3/4 ft (2.06 m) |
Interchanges & Equivalent parts:
| 40759 |
| 841340759 |
| HT50602536 |
| TL40759 |
| TLD40759 |
| LCF002742003 |
| 8413-40759 |
| LIT40759 |
| TL 40759 |
| TL 40759 |
