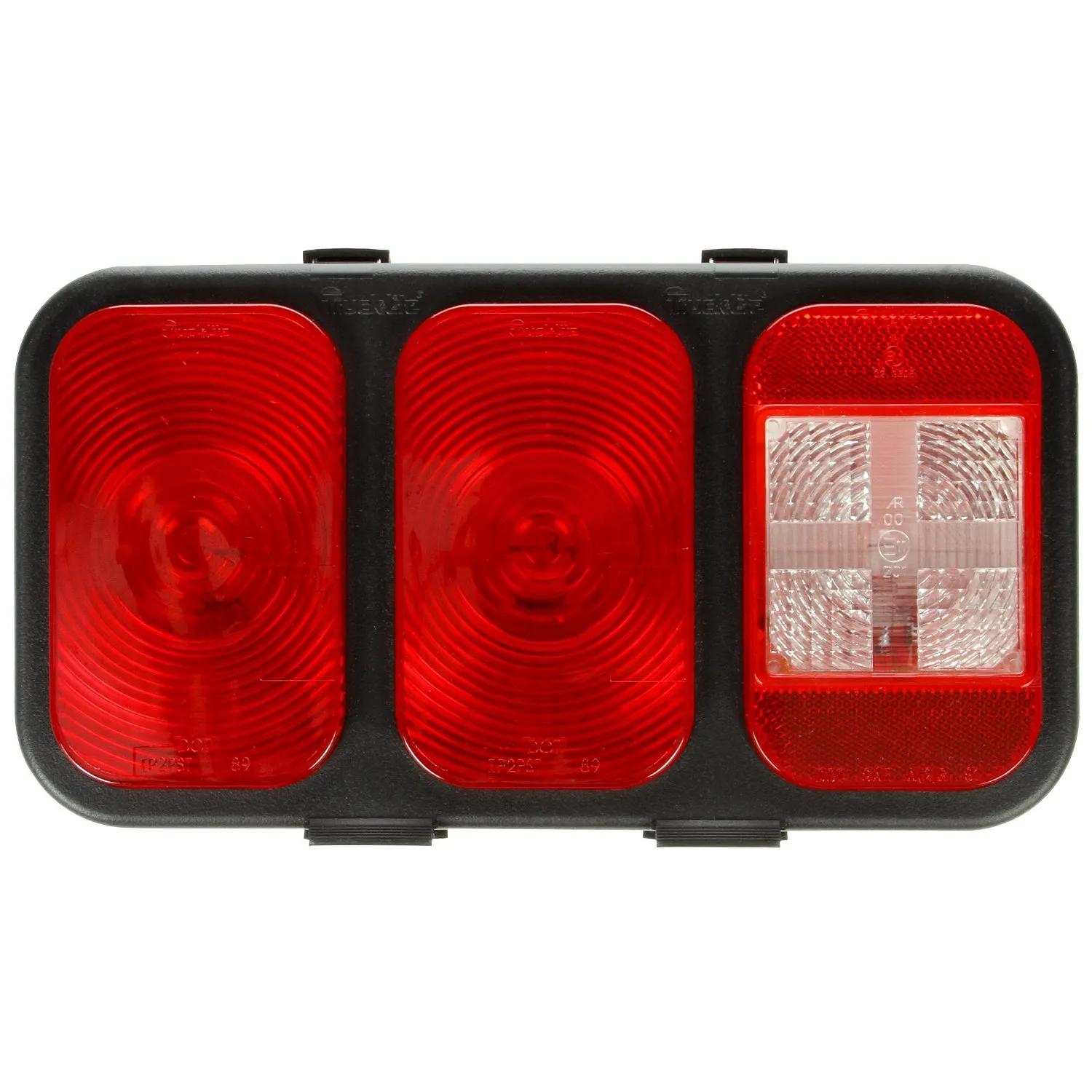

Light Module, Red & White, Incandescent
#TRL45740
Product Overview
45 Series, Incandescent, Back-Up & S/T/T Light Module, Left Hand Side, Black Polypropylene, 12V
Features & Benefits
- Shock absorbency feature protects against impacts
- Allows lamp replacement without the need for tools
- Universal fit accommodates a variety of vehicle types
- Unique housing design ensures reliable signal visibility
- Sealed construction enhances durability in harsh conditions
- Optimized for long-lasting performance in diverse environments
Specifications
| Color | Red & White |
| Current Major | 2.16 amp |
| Current Minor | 0.47 amp |
| Depth | 2-13/16 in (7.14 cm) |
| Function | Stop/Turn/Tail |
| Height | 5-33/64 in (14.02 cm) |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Sealed |
| Length | 10-51/64 in (27.43 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 3-7/32 in (8.18 cm) |
| Material | Polypropylene |
| Mount Type | Stud Mount |
| Number of Lamps | 3 |
| Plug Side Two | No Plug |
| Product Type | Light Module |
| Series | 45 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 079-002-001 |
| Volt | 12V |
| Weight | 2.54 lb (1.15 kg) |
| Width | 10-19/32 in (26.9 cm) |
Interchanges & Equivalent parts:
| 408334 |
| 77040418 |
| 841345740 |
| 981752443 |
| HT50602666 |
| TL45740 |
| TRU45740 |
| 51102 |
| 45740 |
| 569246 |
| TLD45740 |
| LIT45740 |
| TL 45740 |
| TL 45740 |
