2 POINTS

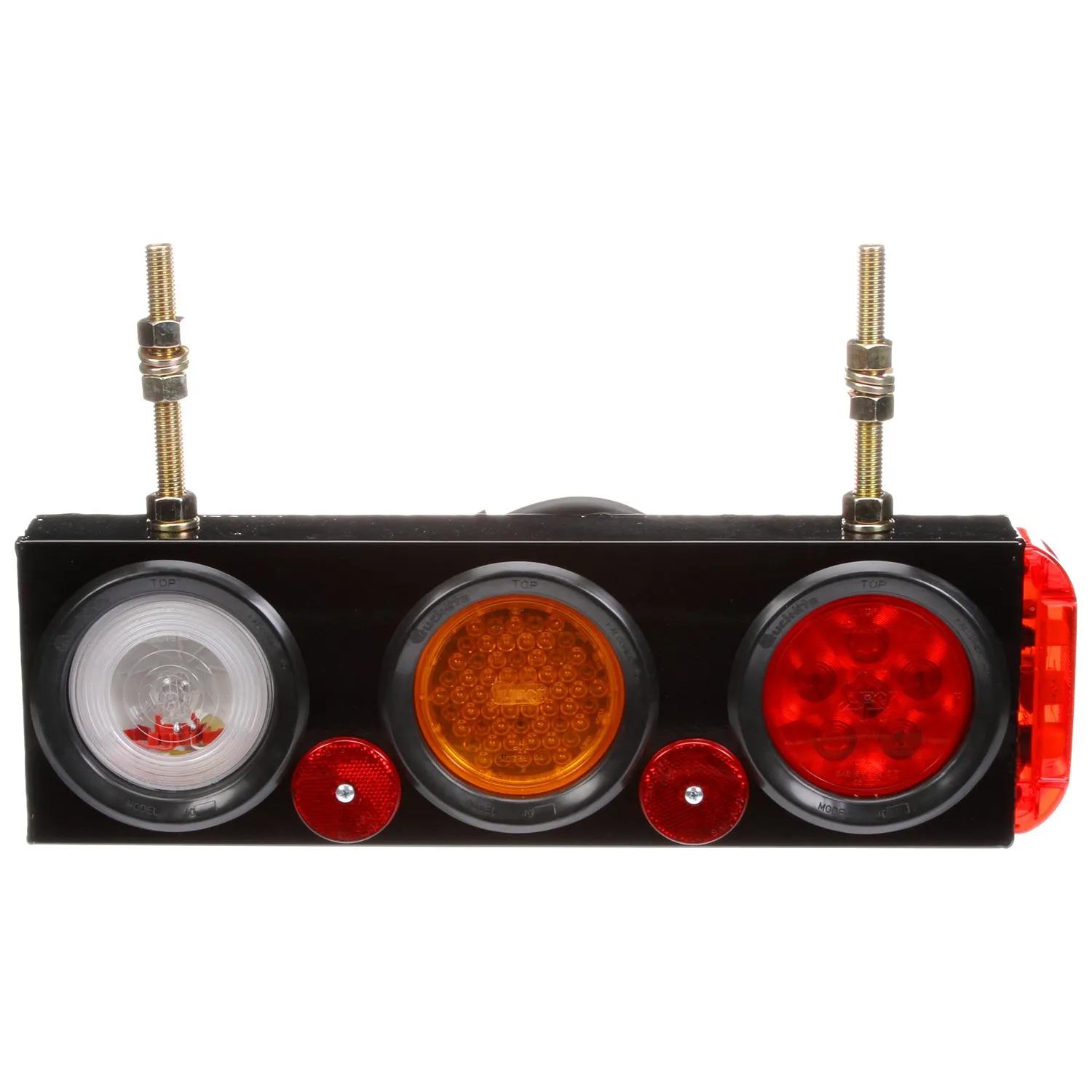

Light Module, White, Red & Amber, LED
#TRL40808
Product Overview
40 Series, LED/Incandescent, Back-Up & S/T/T Light Module w/ Side Marker,, Black PVC, Turn Signal, 12V
Features & Benefits
- Enhances visibility for safety on the road
- Universal sealed lamp designed for signal use
- Provides reliable signaling for other drivers
- Popular choice for straight truck applications
- Easy integration into existing lighting systems
- Durable construction withstands harsh conditions
Specifications
| Color | Amber, Red & White |
| Current Major | 0.24 amp |
| Current Minor | 0.02 amp |
| Depth | 2-1/2 in |
| Function | Stop/Turn/Tail |
| Height | 6-3/8 in |
| Includes Gasket | No |
| Kit (Y/N) | No |
| Lamp Type | Sealed |
| Length | 20-3/16 in |
| Lens Material | Polycarbonate |
| Lens Width | 3-29/32 in |
| Material | PVC |
| Mount Type | Stud Mount |
| Number of Lamps | 4 |
| Number Of Wires | 5 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | Ring Terminal |
| Product Type | Light Module |
| Series | 40 Series |
| Shape | Rectangular |
| Submersible Lamp | Yes |
| VMRS Code | 034-004-273 |
| Volt | 12V |
| Weight | 20 lb |
| Width | 21-13/64 in |
| Wire Gauge | 14 ga |
| Wire Length | 6-3/4 ft |
| Lens Height | 3-29/32 in |
Interchanges & Equivalent parts:
| 841340808 |
| TL40808 |
| TLD40808 |
| 40808TLT |
| 8413-40808 |
| LIT40808 |
| TL 40808 |
| TL 40808 |
| 40808 |
