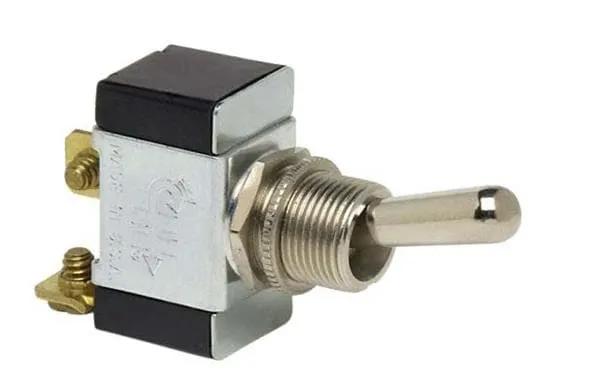

Littelfuse Heavy Duty Toggle Switch, SPST, 10A 36V, Plastic
#LIF5582-BX
Product Overview
Littelfuse toggle switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease of use and extended product lifecycle. The 54100 series includes part 54109 which features an illuminated toggle indicating position.Toggle Switch, Heavy Duty, 2 Screw Terminal, Brass Actuator, Silver Contact, Plastic, 17.4625 in Actuator Length, SPST Contact Form, 10 A Current Rating, 1 Poles, On - None - Off Position, 36 V, 1.124 in Height, 0.562 in Width
Features & Benefits
- Silver contacts for corrosion resistance
Specifications
| Circuitry | SPST (Single Pole, Single Throw) |
| Height | 1.124 in |
| Material | Plastic |
| Type | Heavy Duty |
| Width | 0.562 in |
| Actuator Length | 17.4625 in |
| Actuator Material | Brass |
| Contact Form | SPST |
| Contact Material | Silver |
| Current Rating | 10 A |
| Number of Poles | 1 |
| Position | On - None - Off |
| Terminal Type | 2 Screw |
| Voltage Rating | 36 V |
| Product Category | Toggle Switch |
Interchanges & Equivalent parts:
| COH5582 |
| 34571 |
| 5582-BP |
| 5582BP |
| COH5582-BP |
| COH5582BP |
| COL5582 |
| PLK34571 |
| 82-2120 |
| 191402 |
| 5773001 |
| 765046 |
| 822116 |
| 5582-BX |
