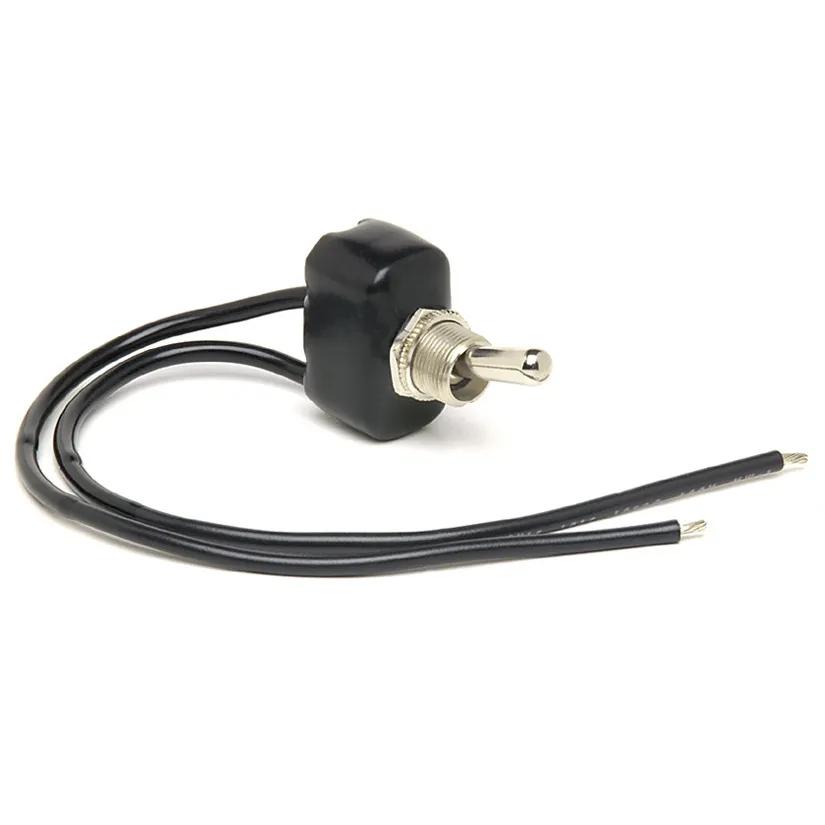

Littelfuse Heavy Duty Toggle Switch SPST, 10A 36V, PVC-Coated Plasticized
#LIF5582-10
Product Overview
Littelfuse toggle switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 54100 series includes part 54109 which features an illuminated toggle indicating position.Toggle Switch, Heavy Duty, 2 Leads (203 mm 16 AWG Stripped) 1 Plug - 2 Leads (203 mm 6 AWG Stripped) 1 Plug Terminal, Brass Actuator, Silver Contact, PVC-Coated Plasticized, 17.4625 in Actuator Length, SPST Contact Form, 10 A Current Rating, 1 Poles, On - None - Off Position, 36 V, 1.124 in Height, 0.562 in Width
Features & Benefits
- Silver contacts for corrosion resistance
Specifications
| Circuitry | SPST (Single Pole, Single Throw) |
| Height | 1.124 in |
| Type | Heavy Duty |
| Width | 0.562 in |
| Actuator Length | 17.4625 in |
| Actuator Material | Brass |
| Contact Form | SPST |
| Contact Material | Silver |
| Current Rating | 10 A |
| Number of Poles | 1 |
| Position | On - None - Off |
| Standards | 54100 series |
| Terminal Type | 2 Leads (203 mm 16 AWG Stripped) 1 Plug - 2 Leads (203 mm 6 AWG Stripped) 1 Plug |
| Voltage Rating | 36 V |
| Product Category | Toggle Switch |
Interchanges & Equivalent parts:
| 195201 |
| COL558210 |
| 5582-10 |
