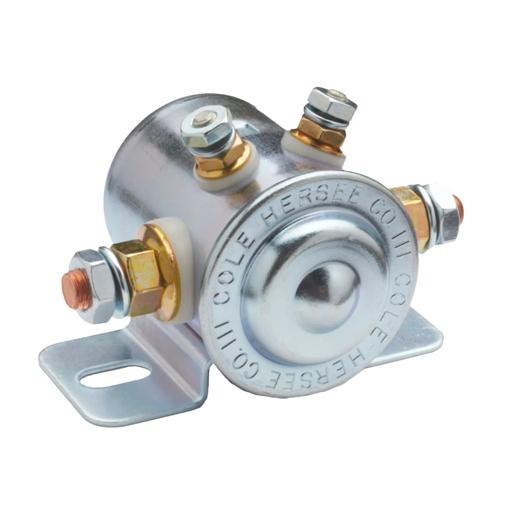

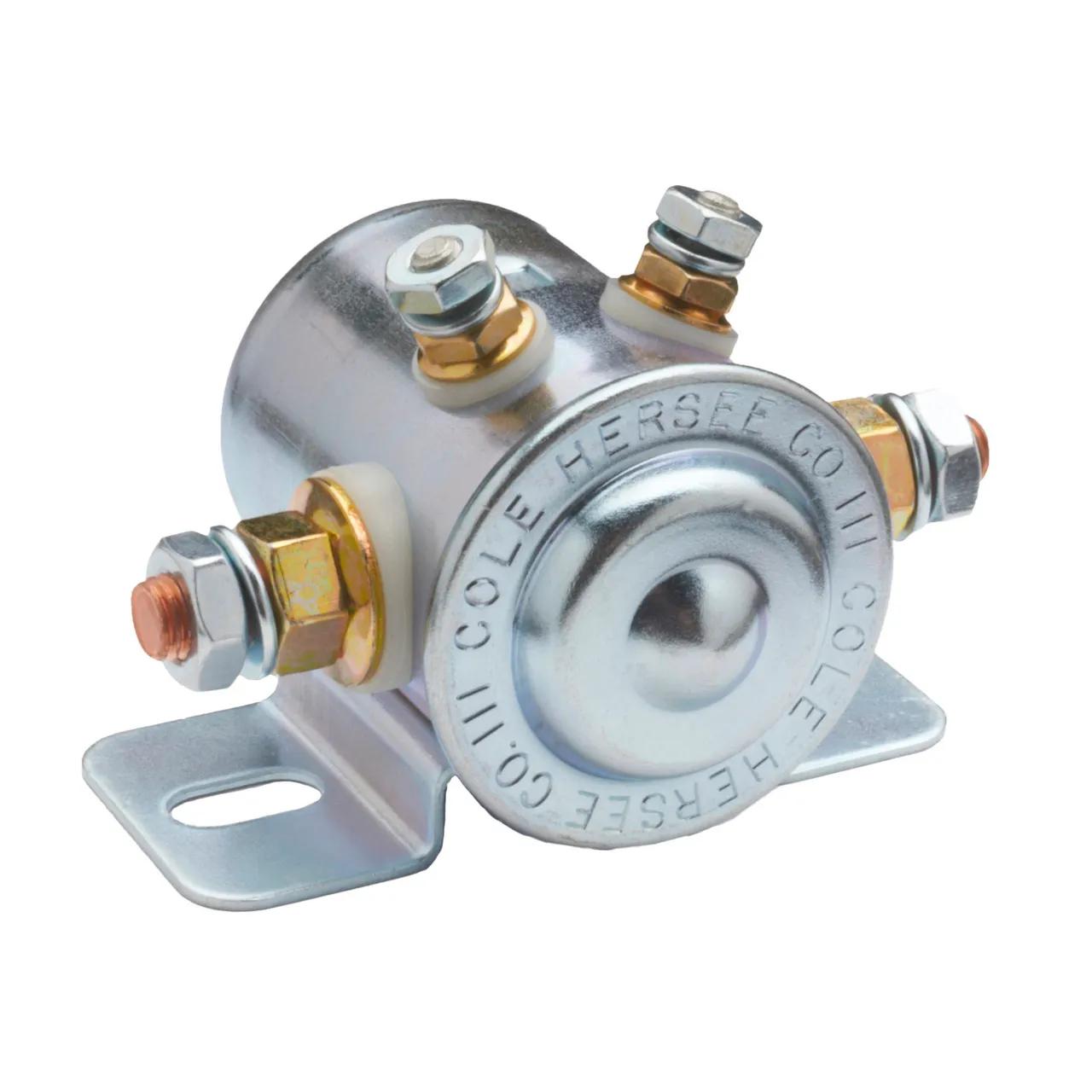

Littelfuse Solenoid Relay 12V Coil, 17.5 Ohm, Insulated, 85A Continuous, Plated Steel Housing, SPST
#LIF24059
Product Overview
The Littelfuse 24059 solenoid relay features a 12V coil with 17.5 ohm impedance and is designed for continuous-duty operation at 85 A. It has an insulated coil design that electrically isolates the studs from the plated steel housing. This single-pole, single-throw (SPST) relay includes normally open contacts and is built to handle high current loads with heavy-duty, durable contacts and high contact force. Ideal for use in construction vehicles, material handling, agricultural equipment, and motor and inductive loads.Solenoid Relay, Insulated, SPST Contact, Plated Steel, 85 A, 36 V, For Construction Vehicles, Material Handling, Agricultural Equipment, Motor and Inductive Loads
Features & Benefits
- 85 A continuous current rating
- 12 V coil with 17.5 ohm impedance
- Insulated coil design electrically isolates the studs from the housing
- SPST circuitry with normally open contacts
- Two large 5/16-24 in copper power studs and two small #10-32 steel coil studs (control circuit) are heavy and durable
- Flat bracket for mounting
- Included hex nuts and lock washers are bagged
Specifications
| Application | Construction Vehicles, Material Handling, Agricultural Equipment, Motor and Inductive Loads |
| Contact Material | Copper |
| Function | Single-Pole Single-Throw (SPST), Normally Open |
| Housing Material | Plated Steel |
| Mounting Type | Flat Bracket |
| Type | Insulated |
| Contact Type | SPST |
| Current Rating | 85 A |
| Voltage Rating | 12 V |
| Product Category | Solenoid Relay |
Interchanges & Equivalent parts:
| 24059-BP |

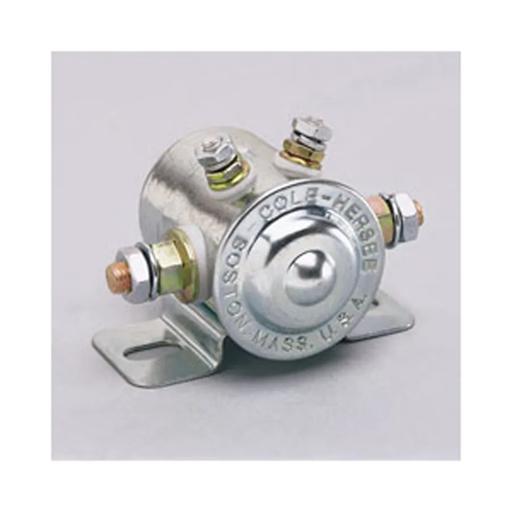

| 24059-BX |
| 24059BX |
| 40048 |
| 949731 |
| COH24059BX |

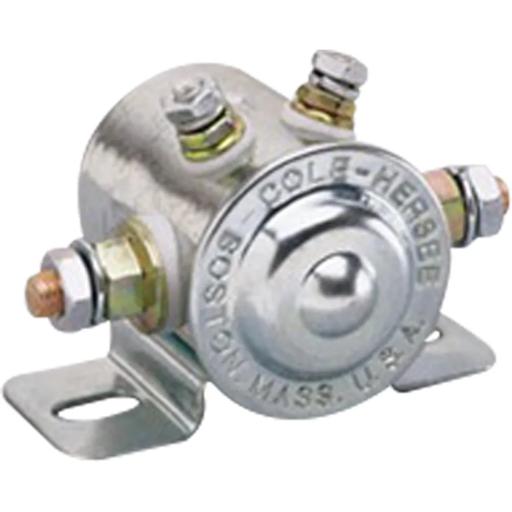

| COL24059 |
| COH24059-BX |

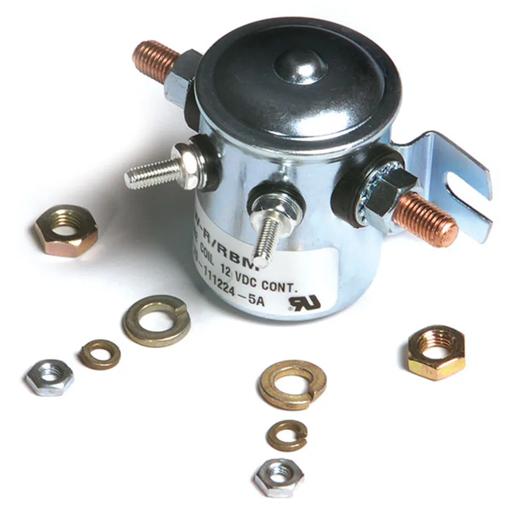

| 82-0311 |
| 52307V |
| 54130 |
| 577304212 |
| 820307 |
