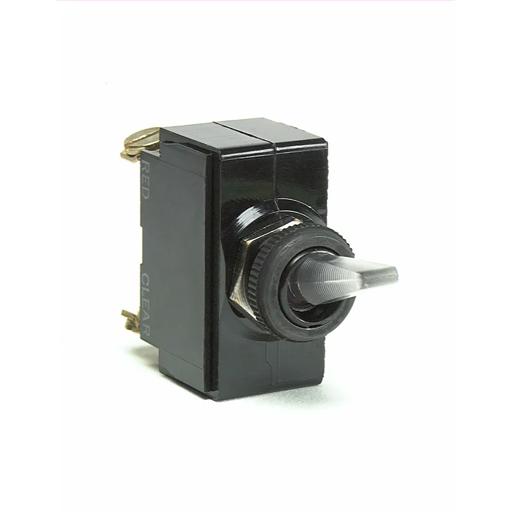

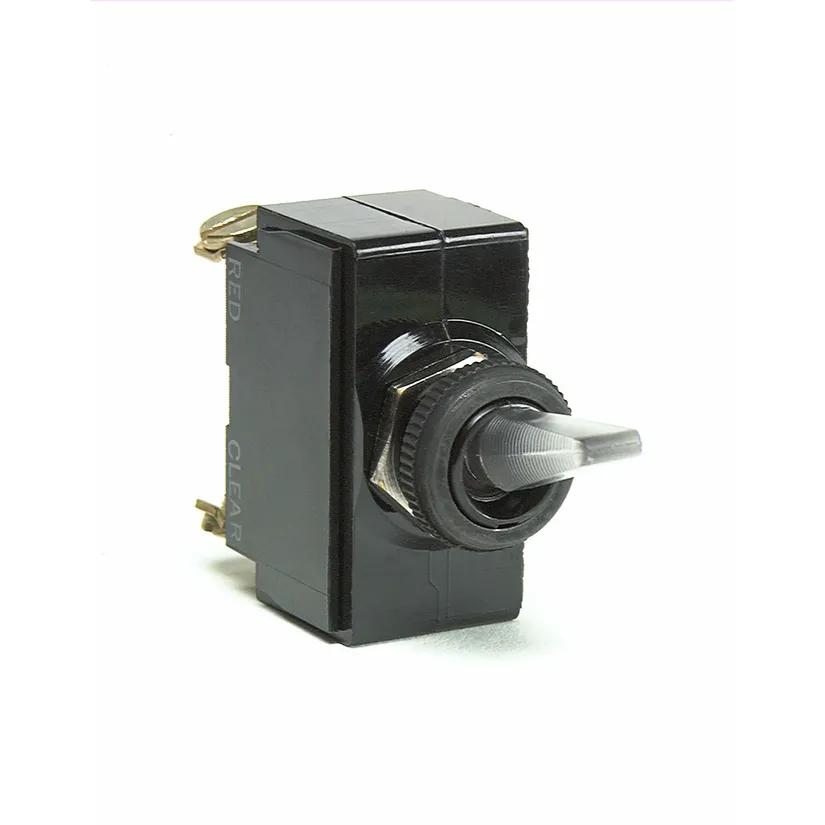

Littelfuse Toggle Switch SPST 1 Pole 25A 12V Black Plastic with 4 Screw Terminals
#LIF54109
Product Overview
Littelfuse toggle switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 54100 series includes part 54109 which features an illuminated toggle indicating position.Toggle Switch, 4 Screw Terminal, Black, Plastic Actuator, Silver Contact, Plastic, 17.4625 in Actuator Length, SPST Contact Form, 25 A Current Rating, 1 Poles, On (Red) - None - Off (White) Position, 12 V, 30.86 mm Height, 19.05 mm Length, 34.92 mm Width
Features & Benefits
- Silver contacts for corrosion resistance
- O-ring sealed bushing
Specifications
| Circuitry | SPST (Single Pole, Single Throw) |
| Color | Black |
| Height | 30.86 mm |
| Length | 19.05 mm |
| Material | Plastic |
| Type | Toggle |
| Width | 34.92 mm |
| Actuator Length | 17.4625 in |
| Actuator Material | Plastic |
| Contact Form | SPST |
| Contact Material | Silver |
| Current Rating | 25 A |
| Number of Poles | 1 |
| Position | On (Red) - None - Off (White) |
| Standards | O-ring sealed bushing |
| Terminal Type | 4 Screw |
| Voltage Rating | 12 V |
| Product Category | Toggle Switch |
