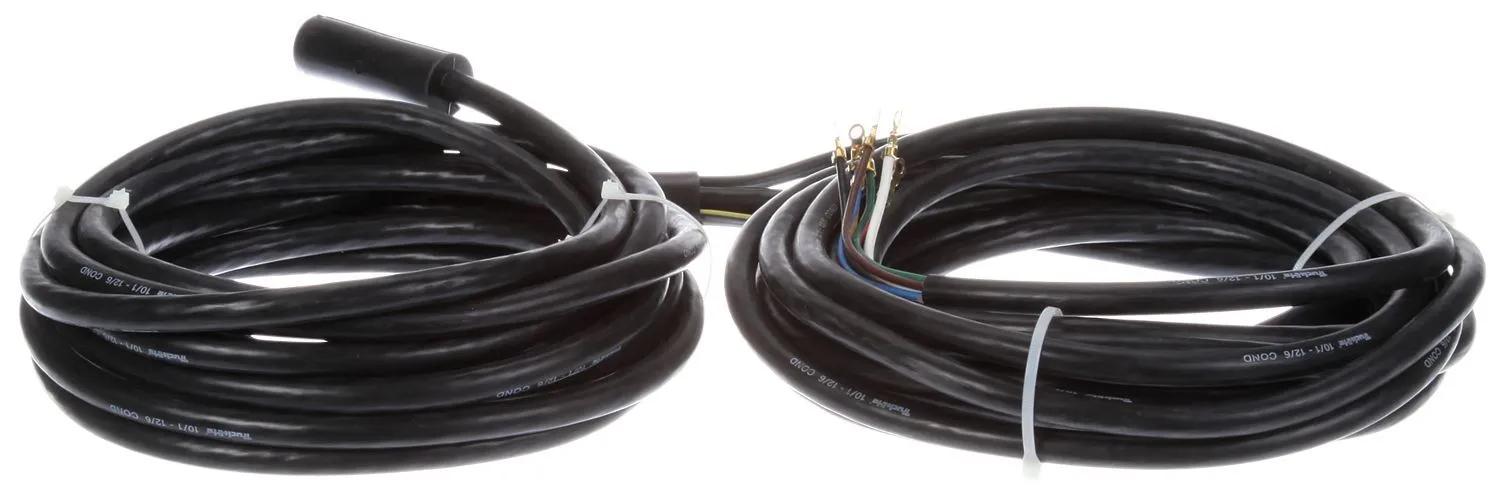

Main Cable Harness, 88 Series, 7 Wires, Le: 62 ft
#TRL88750
Product Overview
88 Series, 7 Plug, 744 in. Main Cable Harness, W/ Center Turn Breakout, 10, 12 Gauge, Female 7 Pole Plug, Female .180 Bullet, Ring Terminal
Features & Benefits
- Dimensions ''A'' indicate standard stock length harness
- Custom length available in 12'' increments
Specifications
| Cable Type | Round |
| Kit (Y/N) | No |
| Length | 62 ft (18.9 m) |
| Number Of Wires | 7 |
| Plug Side One | Female Pole Plug |
| Plug Side Two | Ring Terminal |
| Product Type | Main Cable Harness |
| Series | 88 Series |
| VMRS Code | 034-004-223 |
| Volt | 12V & 24V |
| Weight | 22.56 lb (10.23 kg) |
| Wire Color | Black, Brown, Blue, Green, Red, Yellow, White |
| Wire Gauge | 10 ga, 12 ga |
Specifications
| Harness Type | Main Cable |
| Number of Plugs | 7 |
Interchanges & Equivalent parts:
| 4191001 |
| 62686 |
| 88750 |
| 841388750TLT |
| HT50601114 |
| TL88750 |
| 28989 |
| 8413-88750 |
| 88750TLT |
| LIT88750 |
| TL 88750 |
| TL 88750 |
| TLD88750 |
