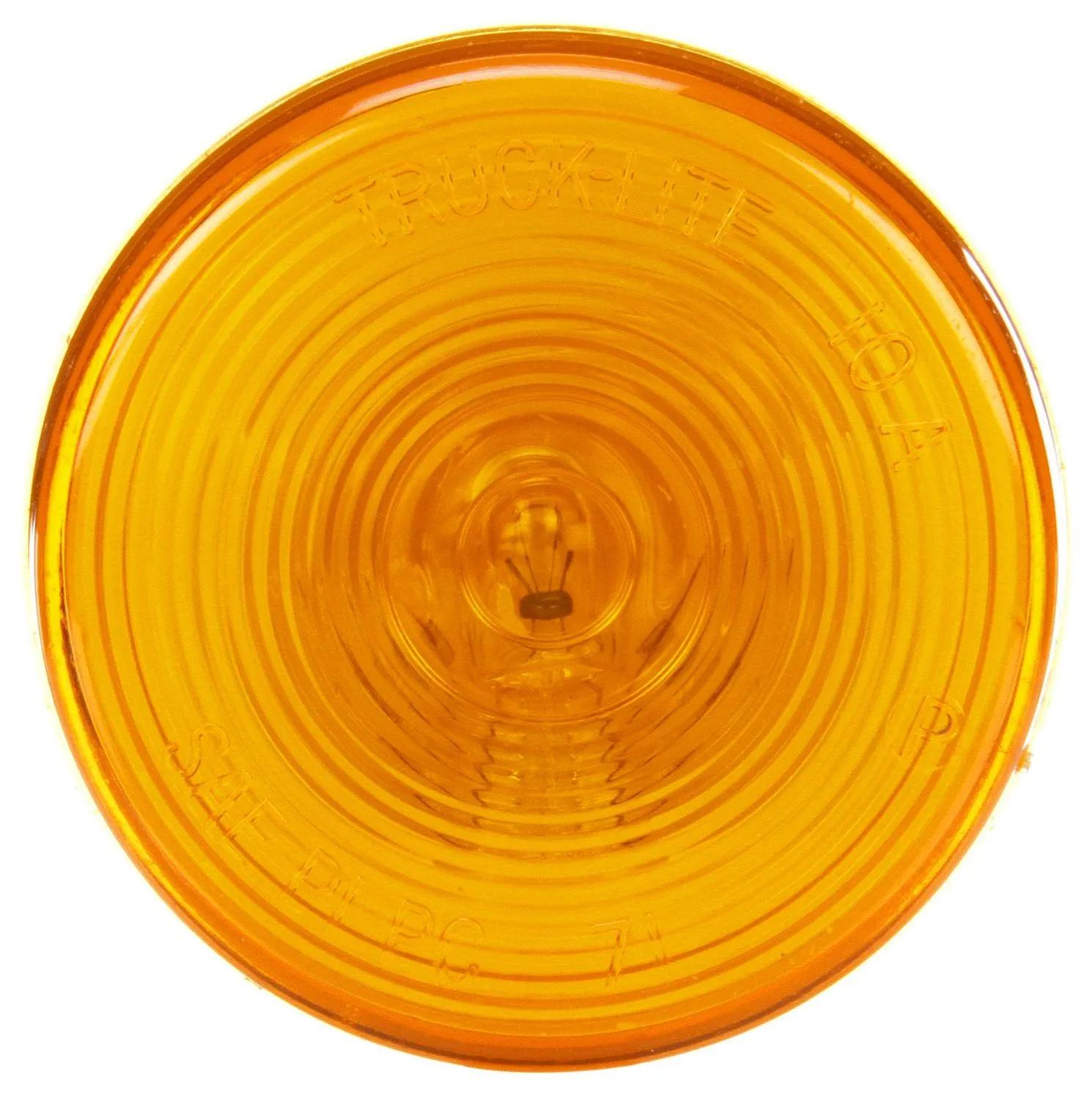

Marker Clearance Light, 10 Series, Incandescent, Yellow, Round, Polycarbonate, 12V, PL-10
#TRL10202Y
Product Overview
10 Series marker clearance light with a single incandescent bulb, yellow round lens, polycarbonate construction, PL-10 connection type, 12V operation. Features a grommet mount and meets FMVSS 108, CMVSS 108, DOT, and SAE standards.Marker Clearance Light, 1 Bulb, Incandescent Bulb, PL-10, Grommet, Polycarbonate, Yellow, 2.54 in H, 0.33 in L, Light Function: P2, PC, 10 Series, Round, 12 V, Warranty: 1 Year, 2.54 in W
Features & Benefits
- Lens and housing are sonically sealed, high-impact polycarbonate construction
- 12V operation with 15,000-hour-rated incandescent bulb life
- Available in either 12V or 24V
- Meets PC requirement on a 45-degree angle in mounting devices #10708, #10720, #00803, or #00804
- Replaces signal-stat 1010 and 1011 series
Specifications
| Bulb Type | Incandescent |
| Connection Type | PL-10 |
| Depth | 45/64 in |
| Height | 2-35/64 in |
| Length | 2-1/2 in |
| Lens Color | Yellow |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| # of Diodes | 16 |
| Quantity | 10 |
| Shape | Round |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Marker Clearance Light |
| UPC | 735111044086 |
| Voltage Rating | 12 V |
| Warranty | 1 Year |
| Weight | 0.08 lb |
| Width | 2-35/64 in |
| Current Rating | 0.33 amp |
| Light Function | P2, PC |
| Product Line | 10 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 1010A-3 |
| 1010A3 |
| 1010AD |
| 10202Y1 |
| 10202Y3 |
| 10202YP |
| 45813 |
| 501010A3 |
| 735056 |
| M100A |
| TRU10202Y |
| V142A |
| 02-7086584 |
| 10202Y-TL |
| 2-10204 |
| 22001004Y |
| 3436 |
| 5700101 |
| 81749 |
| 83881 |
| 8413-10202Y |
| GR45813 |
| LIT10202Y |
| MC-55AB |
| MC58AB |
| MTL01020200Y |
| OPTMC-55AB |
| PM-142A |
| RC CML55A |
| S10-AA00-1 |
| TL 10202Y |
| TL 10202Y |
| TL10202Y |
| TLD10202Y |
| TLT 10202Y |
| 067-75-712 |
| 1000-CML55A |
| 1010A |
| 142A |
| 1812420863 |
| 458135 |
| 800-200250A |
| CML55A |
| FLTSE2500A |
| LB045801 |
| LT10Y |
| M104A |
| M142A |
| MKR4610Y |
| PT1000A |
| SE2500A |
| TKL10202Y |
| 570101 |
| 34-002-147 |
| 34004071 |
