Marker Clearance Light, 3 Diode, 18 Series, LED, Amber Yellow, Rectangular, Hardwired, Acrylic Lens
#TRL18050Y
Product Overview

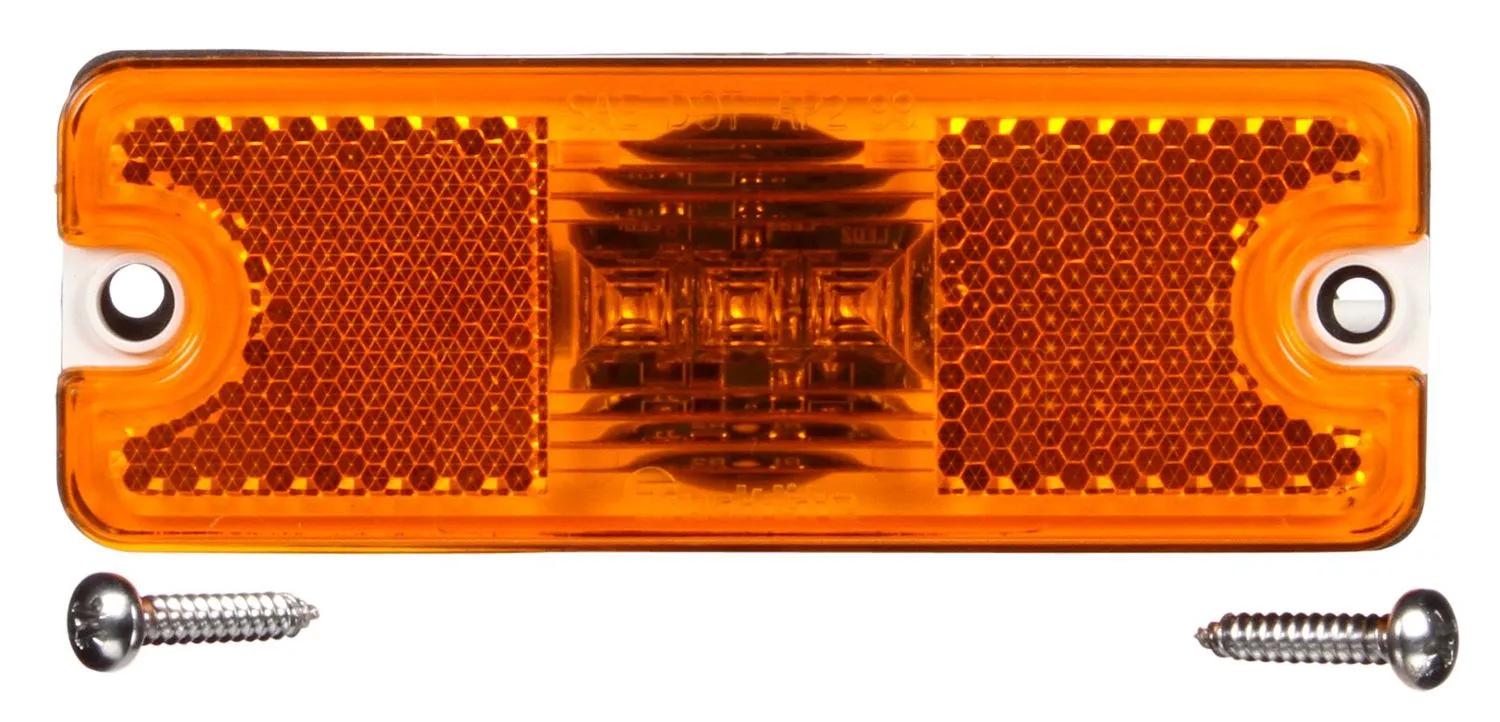

18 Series LED marker clearance light with 3 diodes, amber yellow rectangular lens, P2 light function, 2 screw mounting, reflectorized acrylic lens, hardwired with blunt cut, 12V operation, kit included. Meets FMVSS 108, CMVSS 108, DOT, SAE standards, and SAE J592e and J594f when mounted properly.Marker Clearance Light, 3 Diode, LED Bulb, Hardwired, 2 Screw, Acrylic, Yellow, 1.63 in H, 0.05 in L, Light Function: A, P2, 18 Series, Rectangular, 12 V, Warranty: 3 Years, 4.5 in W
Features & Benefits
- Uses standard mounting holes and accessories
- Draws less current, allowing more power for other vehicle requirements
- OmniVolt versions also meet ECE standards
- Not suitable for PC requirements
- OmniVolt versions address increasing vehicle power demands by operating equally in electrical systems ranging from 10 to 30 volts
- Meets SAE J592e standards
- Meets SAE J594f when mounted with no rollout or rollback
Specifications
| Bulb Type | LED |
| Connection Type | Hardwired |
| Contents | Lamp, Hard Wired |
| Depth | 1 in |
| Diamond Shell (Y/N) | Yes |
| Height | 1-5/8 in |
| Housing Color | Yellow |
| Kit (Y/N) | Yes |
| Length | 4-1/2 in |
| Lens Color | Yellow |
| Lens Material | Acrylic |
| Material | Acrylic |
| Mounting Type | 2 Screw |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Quantity | 1 |
| Reflectorized (Y/N) | Yes |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | 3 Diode |
| UPC | 735111062431 |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Voltage Rating | 12 V |
| Warranty | 3 Years |
| Weight | 0.43 lb |
| Width | 4-1/2 in |
| Wire Gauge | 18 ga |
| Wire Length | 4 in |
| Current Rating | 0.05 amp |
| Light Function | A, P2 |
| Product Line | 18 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 18050Y3 |
| HT50601628 |
| TL18050Y3 |
| TLD18050Y3 |
| 47733GR0 |
| 8413-18050Y |
| LED18Y |
| LIT18050Y |
| M20360Y |
| MCL-49AB |
| TL 18050Y |
| TL 18050Y |
| TL18050Y |
| TLD18050Y |
| TKL18050Y |
| 191F0028 |
