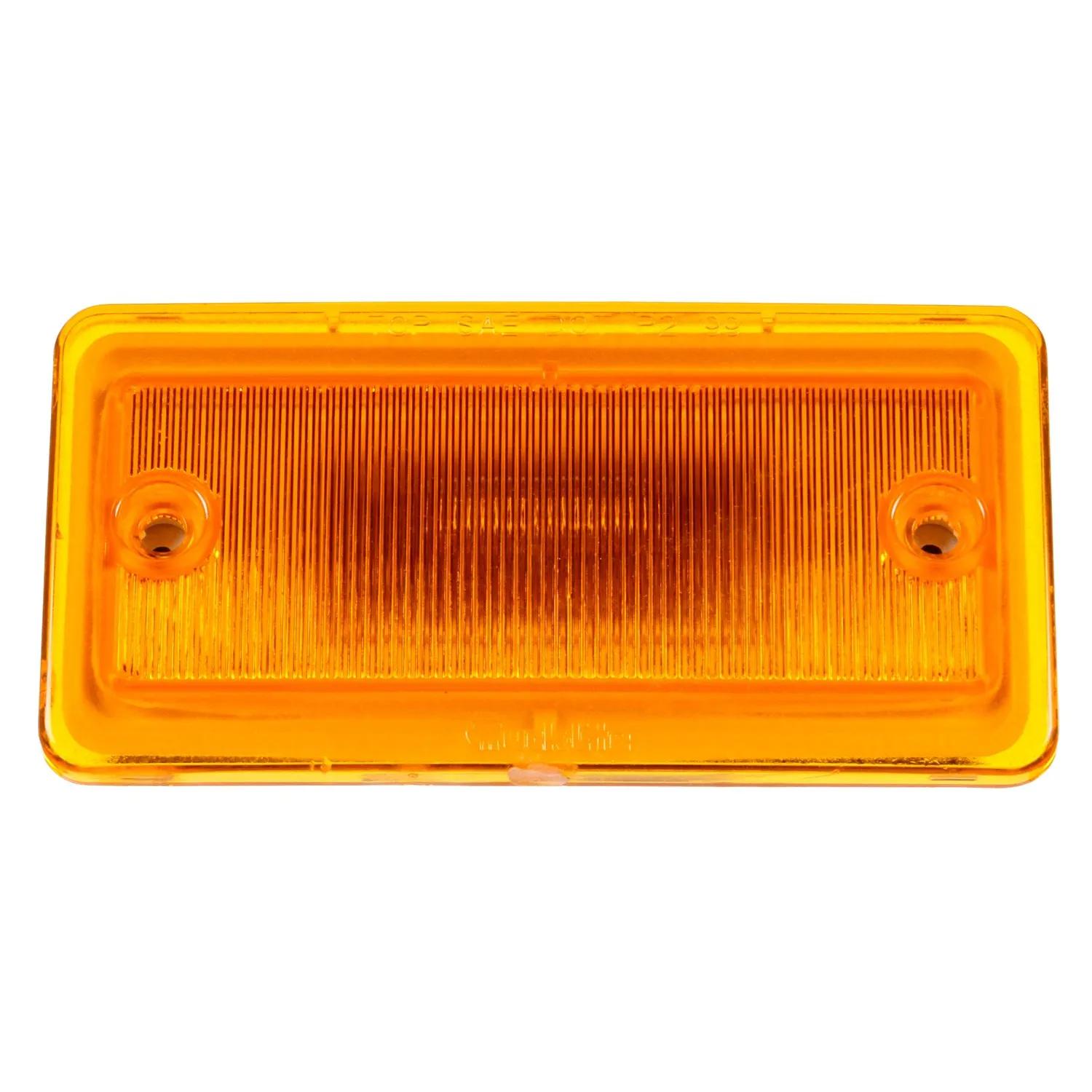

Marker Clearance Light, 3 Diode, 25 Series, LED, Amber Yellow, Rectangular, Hardwired, 12V
#TRL25250Y
Product Overview
25 Series LED marker clearance light with 3 diodes, amber yellow rectangular lens, P2 light function, 2 screw surface mount, hardwired with stripped end connections, operating at 12V. Features a hermetically sealed polycarbonate lens and housing with electronics sealed in epoxy for corrosion and moisture resistance.Marker Clearance Light, 3 Diode, LED Bulb, Hardwired, 2 Screw, Polycarbonate, Yellow, 2.42 in H, 0.1 in L, Light Function: P2, PC, 25 Series, Rectangular, 12 V, Warranty: Limited Lifetime, 4.73 in W
Features & Benefits
- 25750Y features hardwired connections with optional field-installable butt-splice connectors
- Hermetically sealed lens and housing
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Less susceptible to shock and vibration
- Draws less current, allowing more power for other vehicle requirements
- Direct pin-to-circuit board solders assure vibration-resistant contacts
- Includes 97701 mounting gasket with #25250R/Y and 25750Y
- 25750Y is legal when mounted 0 to 40 degrees rollback from vertical
Specifications
| Bulb Type | LED |
| Connection Type | Hardwired |
| Contents | Marker Clearance Light |
| Depth | 1-5/32 in |
| Height | 2-27/64 in |
| Housing Color | Yellow |
| Lamp Screw Hole Diameter | 13/64 in (0.51 cm) |
| Length | 4-47/64 in |
| Lens Color | Amber Yellow |
| Material | Polycarbonate |
| Mounting Type | 2 Screw Surface Mount |
| Quantity | 1 |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Marker Clearance Light |
| UPC | 735111063780 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.21 lb |
| Width | 4-47/64 in |
| Current Rating | 0.1 amp |
| Light Function | P2, PC |
| Product Line | 25 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 25250Y |
| 5000013 |
| 47063 |
| 841325250Y |
| 7581100034 |
| G3003038 |
| HT50601668 |
| TLD25250Y |
| M133A |
| 20071A |
| 273446 |
| TL25250Y |
| TRU25250Y |
| 8413-25250Y |
| LIT25250Y |
| TL 25250Y |
| TL 25250Y |
| GRT47063 |
| TKL25250Y |
| 25254YA |
| BE10241 |
