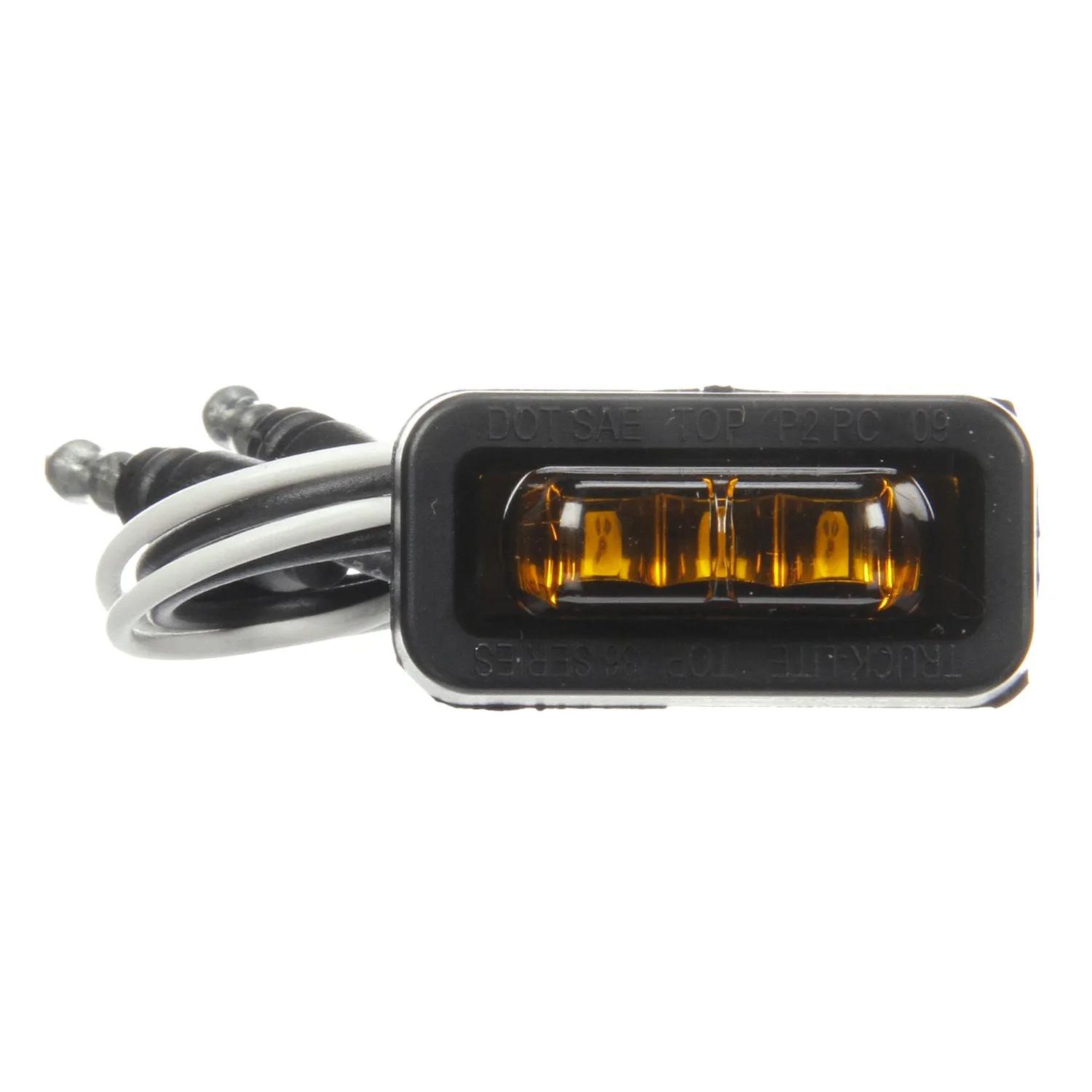

Marker Clearance Light, 3 Diode, 36 Series, LED, Yellow, Polycarbonate, Rectangular, Hardwired
Product Overview
36 Series Flex-Lite rear exit wire marker clearance light featuring 3 LED diodes in a yellow rectangular polycarbonate lens. Adhesive mount with hardwired .180 bullet terminal, 12V operation. Designed for easy installation with peel-off liner and heavy-duty adhesive backing. Rear exit wire version requires a 3/8" mounting hole and self-seals upon installation. LEDs draw minimal current, allowing more power for other vehicle needs. Electronics sealed in epoxy to resist moisture and corrosion damage, reducing lighting costs caused by physical damage and heat entrapment.Marker Clearance Light, 3 Diode, LED Bulb, Hardwired, Adhesive, Polycarbonate, Yellow, 9.12 in H, 0.05 in L, Light Function: P2, PC, 36 Series, Rectangular, 12 V, Warranty: Limited Lifetime, 1.53 in W
Features & Benefits
- Provides a clearance/marker solution that requires no mounting brackets or installation screws
- Lamps adhere directly to application surface through the use of heavy-duty adhesive backing
- Easy-to-install peel-off liner
- Hardwired lamp design is easily retrofit able
- Rear exit wire version requires a 3/8 mounting hole, and self-seals hole upon installation
- Side mount options can be mounted without any mounting holes
- LEDs draw much less current, allowing more power for other vehicle requirements
- A PC rated legal lamp allows for one lamp instead of two to meet the 180 degrees
- Electronics are completely sealed in epoxy to resist damage caused by moisture and corrosion
- Reduces lighting costs caused by physical damage and heat entrapment
Specifications
| Bulb Type | LED |
| Connection Type | Hardwired |
| Contents | Lamp, Non-Winged, Rear Exit Wires |
| Depth | 3/4 in |
| Height | 9-1/8 in |
| Housing Color | Black |
| Length | 3/4 in |
| Lens Color | Yellow |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Adhesive |
| Number Of Wires | 2 |
| Quantity | 5 |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Marker Clearance Light |
| UPC | 735111177920 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.03 lb |
| Width | 1-17/32 in |
| Current Rating | 0.05 amp |
| Light Function | P2, PC |
| Product Line | 36 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 36115Y |
| 36115YTLT |
| TKL36115Y |
| TLD36115Y |
