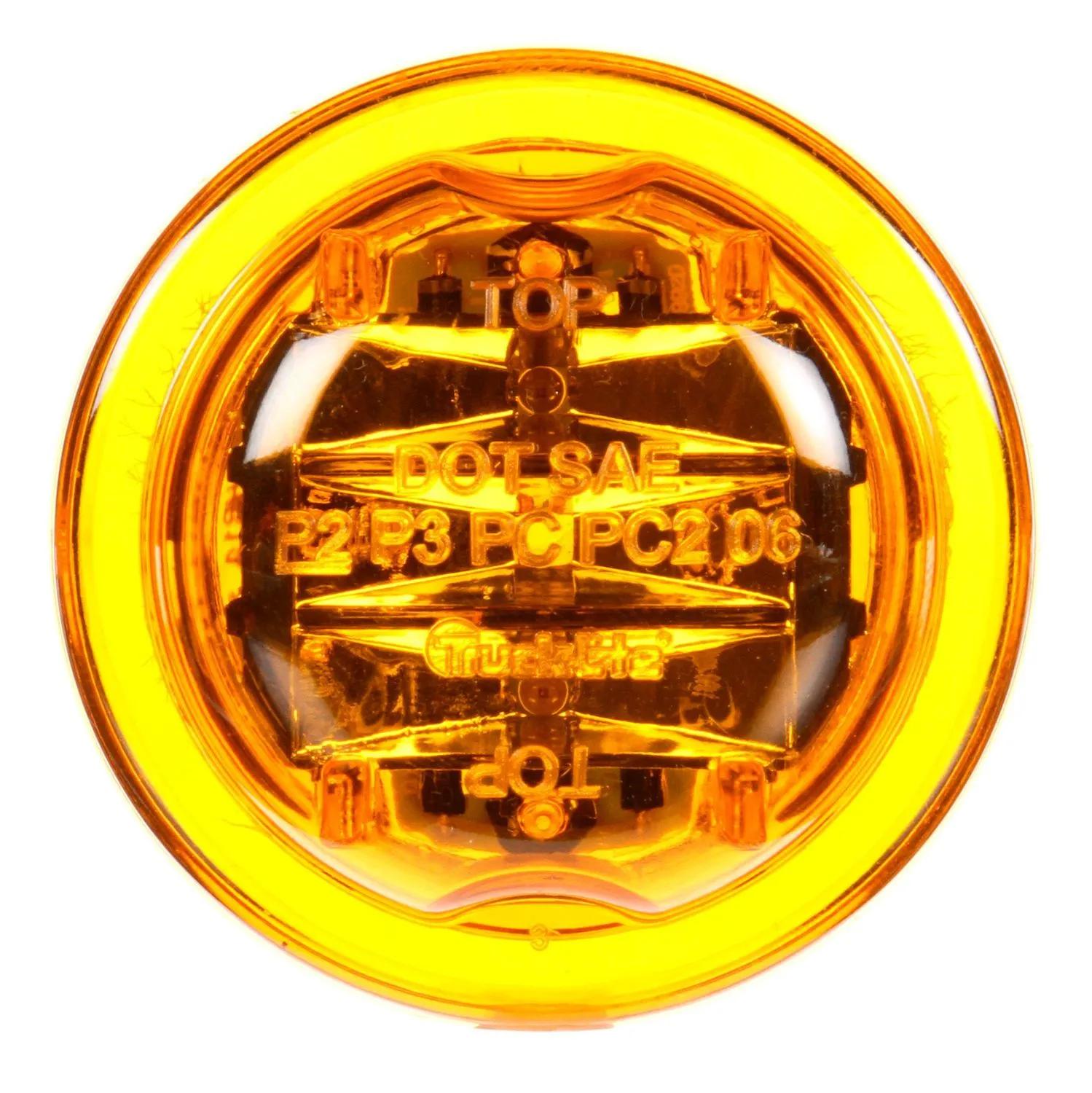

Marker Clearance Light, 8 Diode, High Profile, 10 Series, LED, Yellow Round, Polycarbonate, PL-10, 12V
#TRL10275Y
Product Overview
10 Series high profile LED marker clearance light with 8 diodes, yellow round lens, polycarbonate construction, PL-10 connection, designed for combined marker and clearance applications, 12V operation.Marker Clearance Light, 8 Diode, High Profile, LED Bulb, PL-10, Grommet, Polycarbonate, Yellow, 2.5 in H, 0.1 in L, Light Function: P2, P3, PC, 10 Series, Round, 12 V, Warranty: 3 Years, 2.5 in W
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
- 8 Diodes, .1 Amp, 3-Year Warranty
- Choose from forget or standard connections, flange gasket available for additional protection, electronics completely sealed in epoxy to resist corrosion and moisture
Specifications
| Type d'ampoule | DEL |
| Type de connexion | PL-10 |
| Contient | Lampe sans fiche |
| Profondeur | 1-1/2 po |
| Coquille de diamant (O/N) | Non |
| Hauteur | 2-1/2 po |
| Couleur du boîtier | Ambre |
| Trousse (O/N) | Non |
| Longueur | 2-1/2 po |
| Couleur des lentilles | Jaune |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de fixation | Oeillet |
| Type de support | Montage à oeillet |
| Nombre de câbles | 2 |
| Fiche #2 | Sans fiche |
| Quantité | 5 |
| Réfléchissant (O/N) | Non |
| Séries | Série 10 |
| Forme | Rond |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technologie | DEL |
| Type | 8 diodes, profil haut |
| CUP | 735111039136 |
| Code VMRS | 034-004-253 |
| Volt | 12V |
| Tension nominale | 12 V |
| Garantie | 3 ans |
| Poids | 0,16 lb |
| Largeur | 2-1/2 po |
| Courant nominal | 0.1 A |
| Fonction d'éclairage | P2, P3, PC |
| Gamme de produits | Série 10 |
| Catégorie de produit | Feu de gabarit et de dégagement |
Interchanges & Equivalent parts:
| 10275Y3 |
| 812020 |
| 85101789 |
| TL10275Y |
| HT50601596 |
| TLD10275Y3 |
| TRU10275Y |
| M13300YM10280Y |
| M163A |
| 13071A |
| 16512988 |
| 81202 |
| 8413-10275Y |
| LIT10275Y |
| TL 10275Y |
| TL 10275Y |
| TL-10275Y |
| TLD10275Y |
| TLT 10275Y |
| 47023 |
| GRT47233 |
| M11300Y |
| M197A |
| TKL10275Y |
| 47232 |
| G2723 |
| PA10086 |
| 84568 |
| 472333 |
| 47233-3 |
