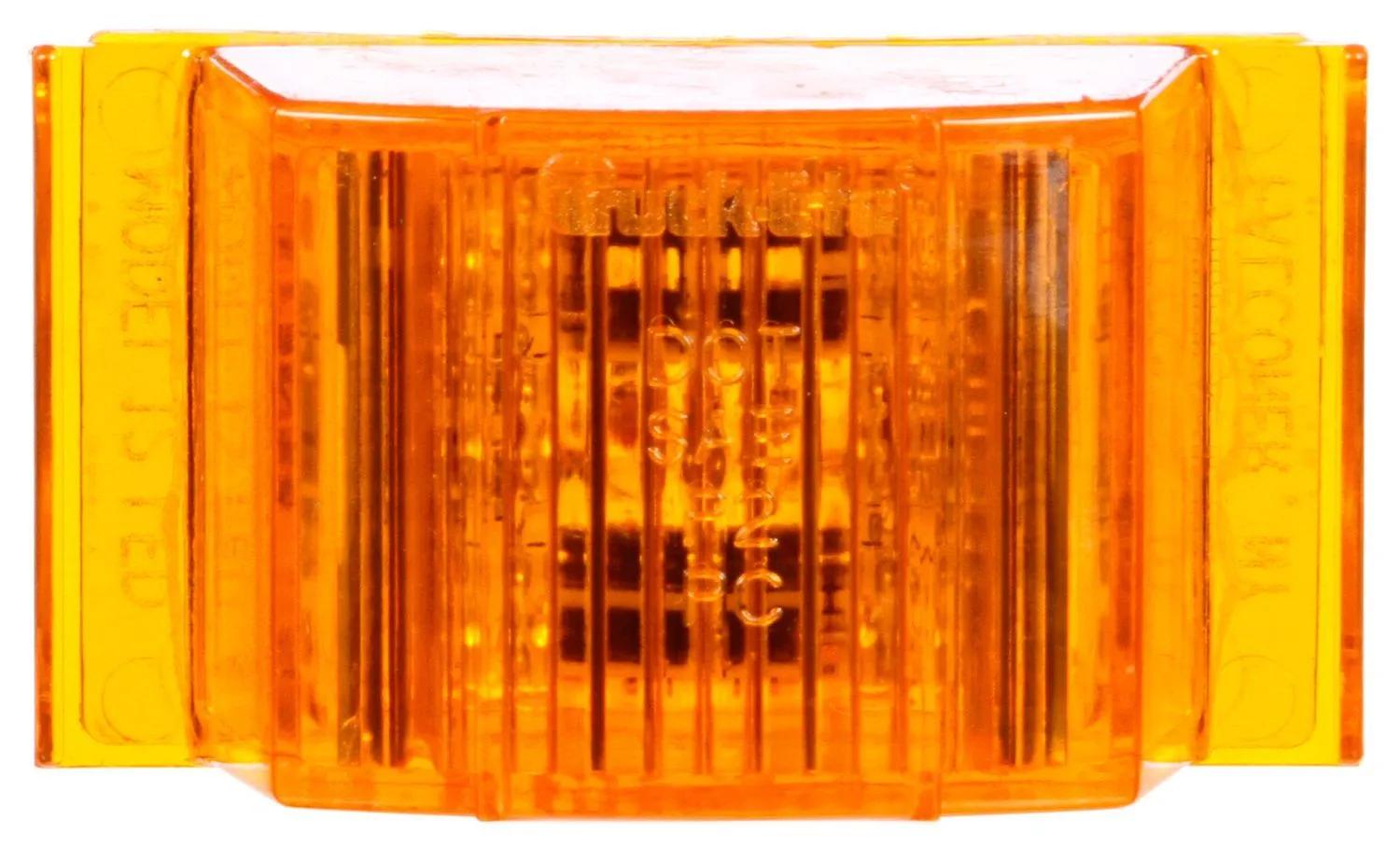

Marker Clearance Light, Amber, Rectangular
#TRL12275Y
Product Overview
12 Series, LED, Yellow Rectangular, 6 Diode, Marker Clearance Light, PC, PL-10, 12V
Features & Benefits
- SAE PC-rated for combination clearance/marker applications
- Lamp gasket #97921 required for proper lamp and bracket fit
- High quality construction
- High quality construction
- Wide range of applications
- Wide variety of lighting products
Specifications
| Color | Amber |
| Common Size | 2 in |
| Contents | Marker Clearance Light |
| Current Major | 0.12 amp |
| Depth | 2-1/32 in |
| Diamond Shell (Y/N) | No |
| Height | 1-59/64 in |
| Kit (Y/N) | No |
| Length | 2-29/32 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | 12 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4-29/32 in |
Interchanges & Equivalent parts:
| 12275Y |
| 841312275Y |
| MCL86AB |
| TL12275Y |
| TLD12275Y |
| 8413-12275Y |
| LIT12275Y |
| MCL-86AB |
| TL 12275Y |
| TL 12275Y |
