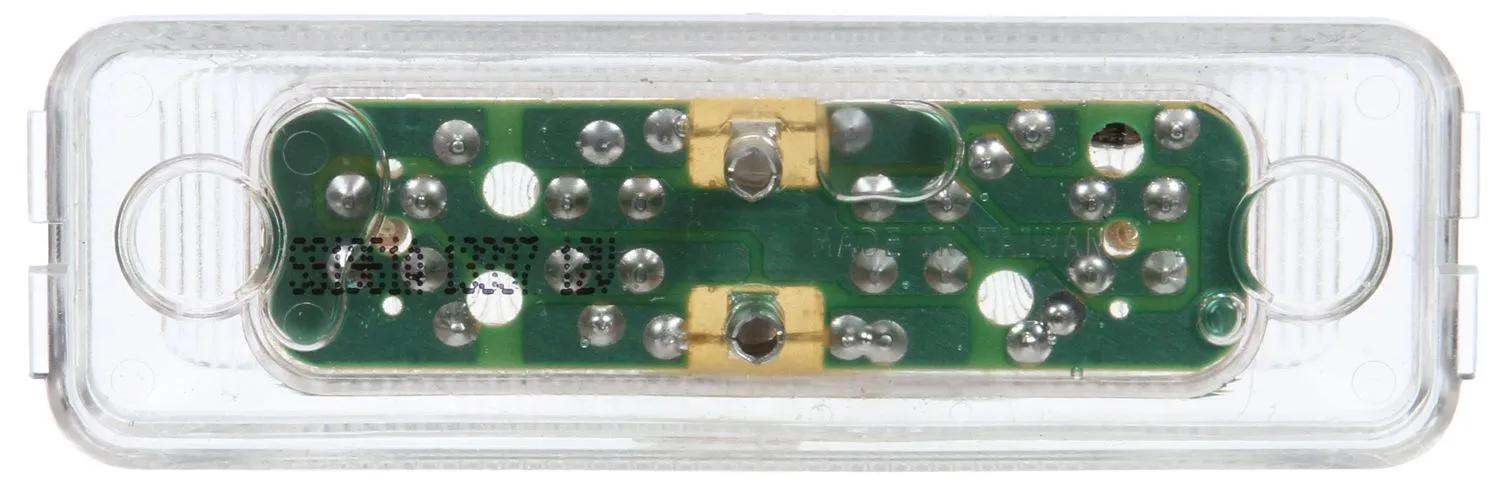

Marker Clearance Light, Amber, Rectangular
#TRL1961A
Product Overview
Signal-Stat, LED, Clear/Yellow Rectangular, 4 Diode, Marker Clearance Light, P2, 19 Series Male Pin, 12V
Features & Benefits
- Popular in owner/operator and show trucks
- Standard connection
- 4 diode LED pattern
- Encapsulated electronics
- Not recommended for PC applications
Specifications
| Color | Amber & White |
| Common Size | 1 in (2.54 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.05 amp |
| Depth | 33/64 in (1.32 cm) |
| Diamond Shell (Y/N) | No |
| Height | 1-7/32 in (3.1 cm) |
| Kit (Y/N) | No |
| Length | 3-25/32 in (9.6 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side Two | No Plug |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 3-29/32 in (9.93 cm) |
Interchanges & Equivalent parts:
| 1961A |
| 46743 |
| G1903 |
| VSM1905AX |
| PTL1912A |
| LED104012A |
| LED10406A |
| M20350Y |
| 20312 |
| 12710211A |
| 1961AS1G |
| 8413-1961A |
| LIT1961A |
| TL 1961A |
| TL1961A |
| TLD1961A |
| SE1040A |
| MCL65AB |
| MCL67AB |
| MCL77AB |
| LED19Y |
| M161A |
