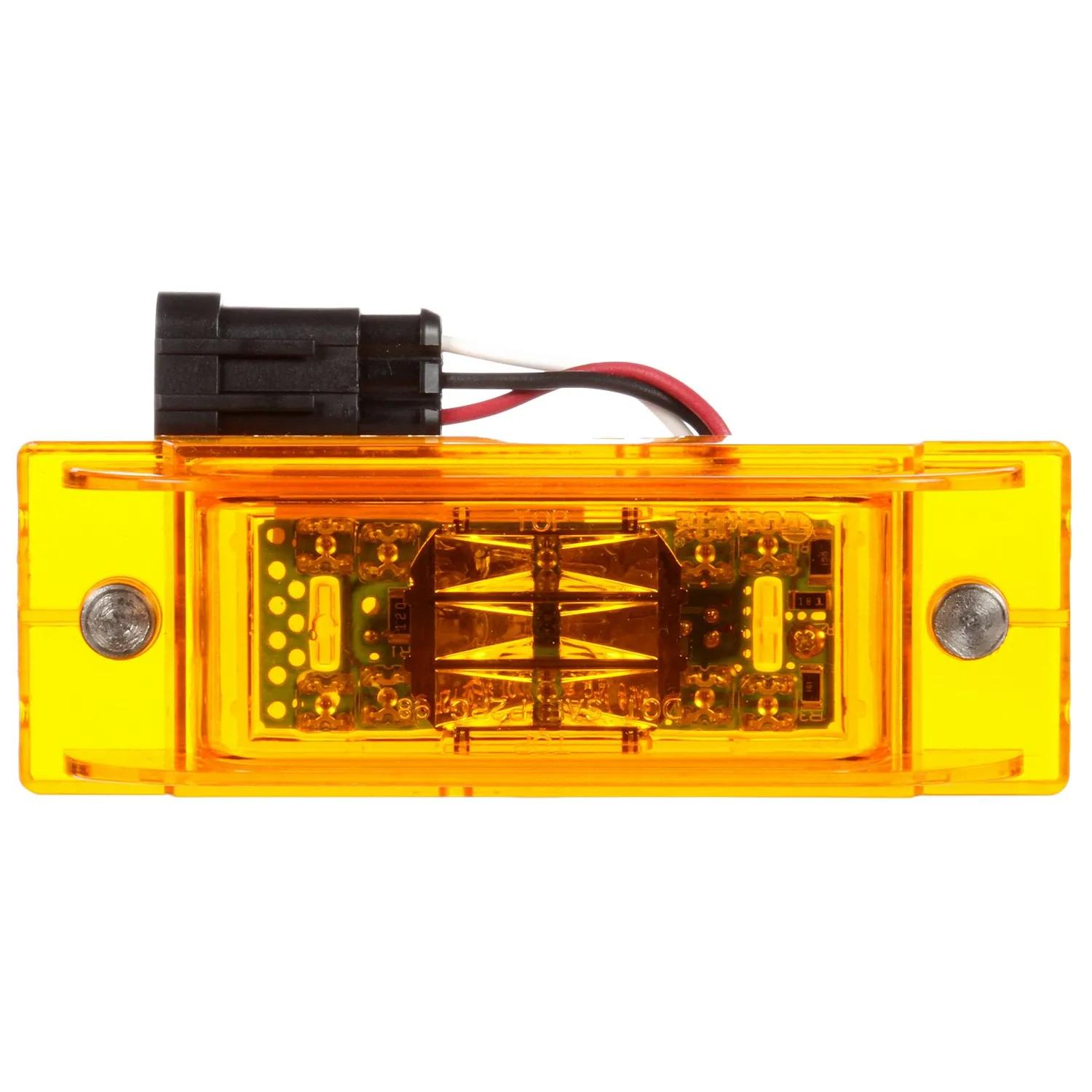

Marker Clearance Light, Amber, Rectangular
#TRL21096Y
Product Overview
21 Series, LED, Yellow Rectangular, 16 Diode, Marker Clearance Light, P2, 2 Screw, Hardwired, AMP 282105-1, 12V
Features & Benefits
- Popular replacement on Freightliner vehicles where lamp is not mounted on a curved location
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Less susceptible to shock and vibration
Specifications
| Couleur | Jaune |
| Taille commune | 2 in (5.08 cm) |
| Contient | Lampe, Prise |
| Major actuel | 0,16 amp |
| Mineure actuelle | 0,03 amp |
| Profondeur | 1-9/32 in (3.25 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 2-1/32 in (5.16 cm) |
| Couleur du boîtier | Jaune |
| Trousse (O/N) | No |
| Longueur | 6 in (15.24 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de support | Montage par vis |
| Nombre de câbles | 3 |
| Fiche #1 | Metripack |
| Fiche #2 | Metripack |
| Réfléchissant (O/N) | Non |
| Series | 21 Series |
| Shape | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-003-097 |
| Volt | 12V |
| Width | 6 in (15.24 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 841321096Y |
| TL21096Y |
| TLD21096Y |
| TRU21096Y |
| LNB1580129 |
| 1274705 |
| 21096Y |
| 8413-21096Y |
| LIT21096Y |
| M353A |
| TL 21096Y |
| TL 21096Y |
| GRT47073 |
| TKL21096Y |
