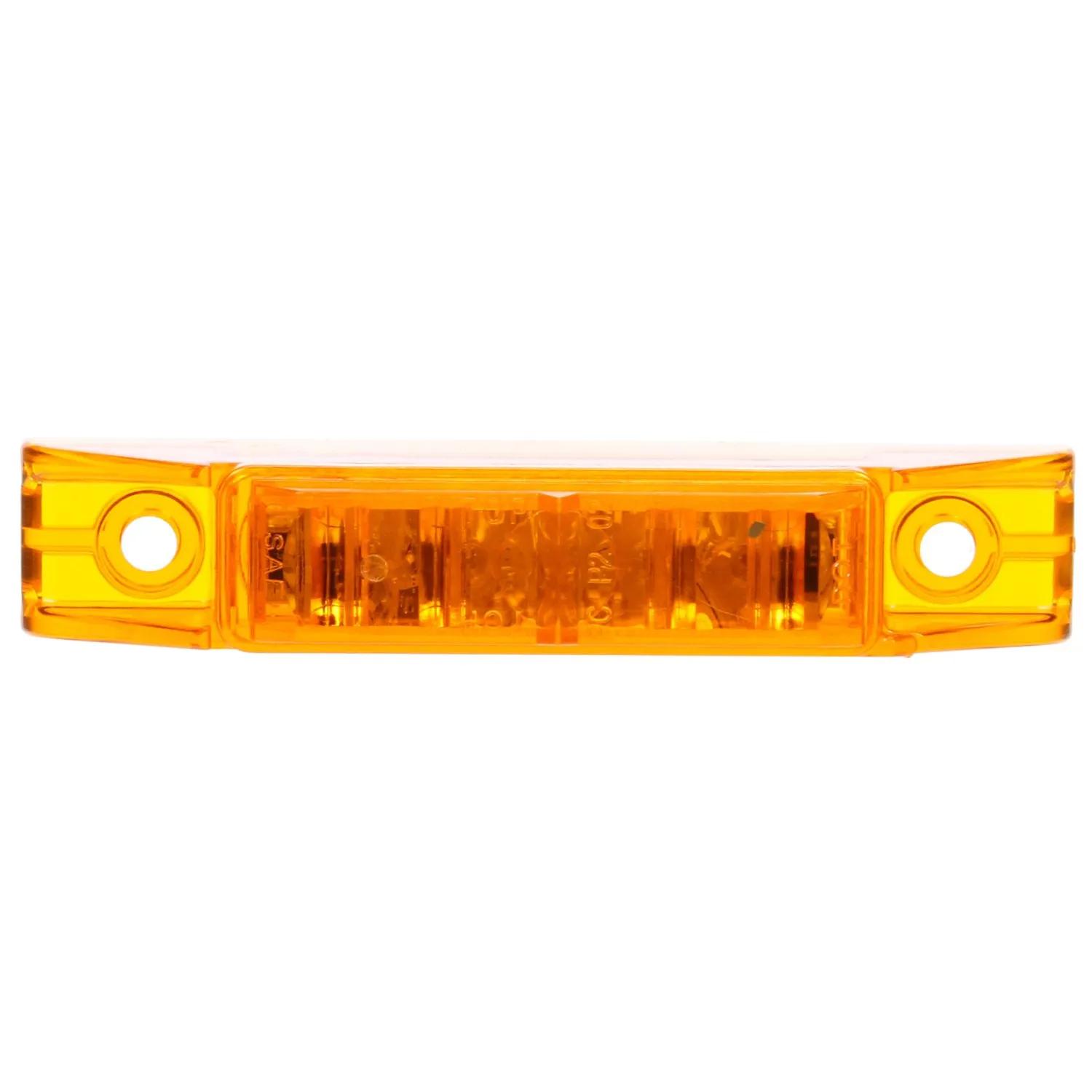

Marker Clearance Light, Amber, Rectangular
#TRL35075Y
Product Overview
35 Series, LED, Yellow Rectangular, 5 Diode, Marker Clearance Light, PC, 2 Screw, Fit 'N Forget M/C, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Features & Benefits
- Slim 3/4'' wide design makes lamp perfect solution for narrow rail designs
- Must be mounted horizontally
- Optional gasket to improve seal between lamp and body
- Not suitable for PC requirements
Specifications
| Color | Amber |
| Common Size | 1 in (2.54 cm) |
| Contents | Lamp Kit |
| Current Major | 0.12 amp |
| Depth | 1-5/32 in (2.95 cm) |
| Diamond Shell (Y/N) | No |
| Height | 47/64 in (1.85 cm) |
| Housing Color | Yellow |
| Kit (Y/N) | Yes |
| Length | 4 in (10.16 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Side Mount |
| Number Of Wires | 2 |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | No |
| Series | 35 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 4 in (10.16 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 35075Y |
| 35375YTLT |
| 8413-35075Y |
| LIT35075Y |
| TL 35075Y |
| TL35075Y |
| TLD35075Y |
| V167KA |
| GRT47463 |
| TKL35375Y |
