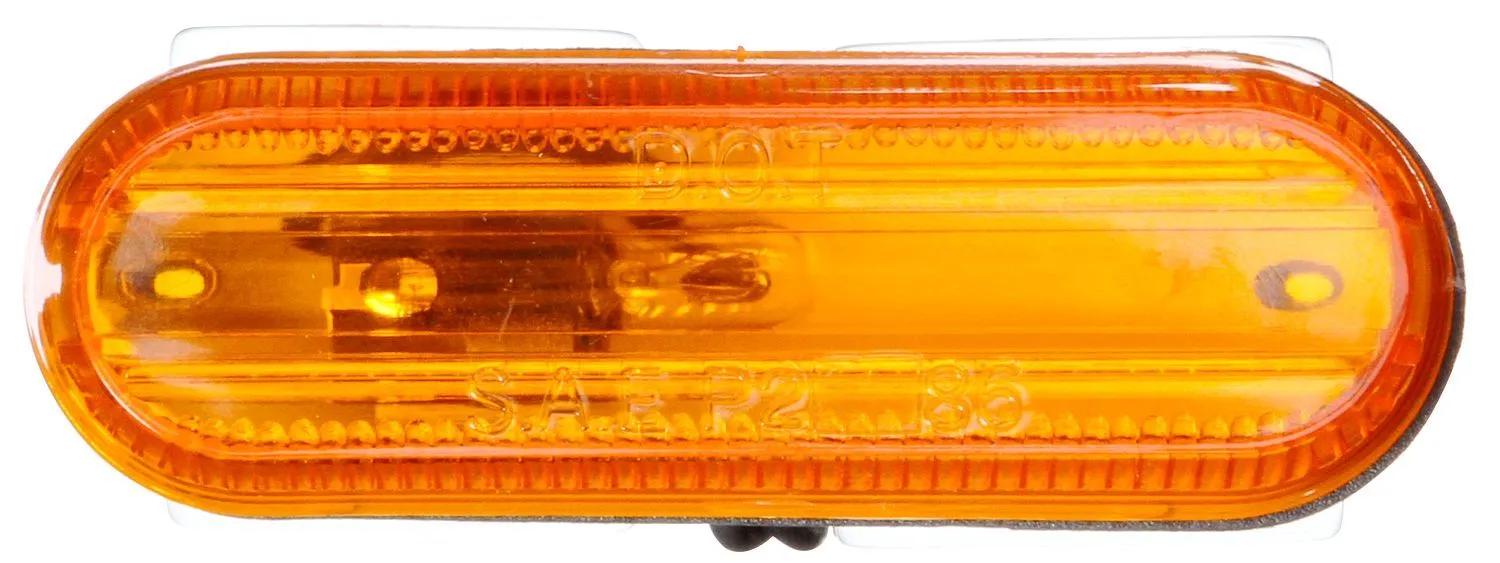

Marker Clearance Light, Amber & Yellow, Oval
#TRL1555A
Product Overview
Signal-Stat, Slim line, Incandescent, Yellow Oval, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Ideal for narrow rail or channel mounted applications
- Can be mounted vertically or horizontally
- Low profile Snap-On lens allows for easy bulb replacement
- Acrylic lens, ABS base
- SAE PC-rated for combination clearance/marker application
Specifications
| Couleur | Jaune |
| Taille commune | 1 in (2.54 cm) |
| Contient | Lampe |
| Major actuel | 0,27 amp |
| Profondeur | 31/32 in (2.46 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 1-11/64 in (2.97 cm) |
| Trousse (O/N) | No |
| Longueur | 3-33/64 in (8.94 cm) |
| Matériau de la lentille | Acrylic |
| Type de support | Montage par vis |
| Nombre de câbles | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Non |
| Series | Signal-Stat |
| Shape | Ovale |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-024 |
| Volt | 12V |
| Width | 3-33/64 in (8.94 cm) |
| Wire Gauge | 16 ga |
| Wire Length | 3 po (7,62 cm) |
Interchanges & Equivalent parts:
| 84131555A |
| V136A |
| MC68AB |
| MC69AB |
| TL1555A |
| TLD1555A |
| 1555A |
| 136A |
| 8413-1555A |
| LIT1555A |
| MC-68AB |
| MC-69AB |
| TL 1555A |
| 452535 |
| LT536Y |
| PT2630A |
| 45253 |
